181 | R-net Technical Manual | Chapter 10 – Diagnostics
Curtiss-Wright | PG Drives Technology

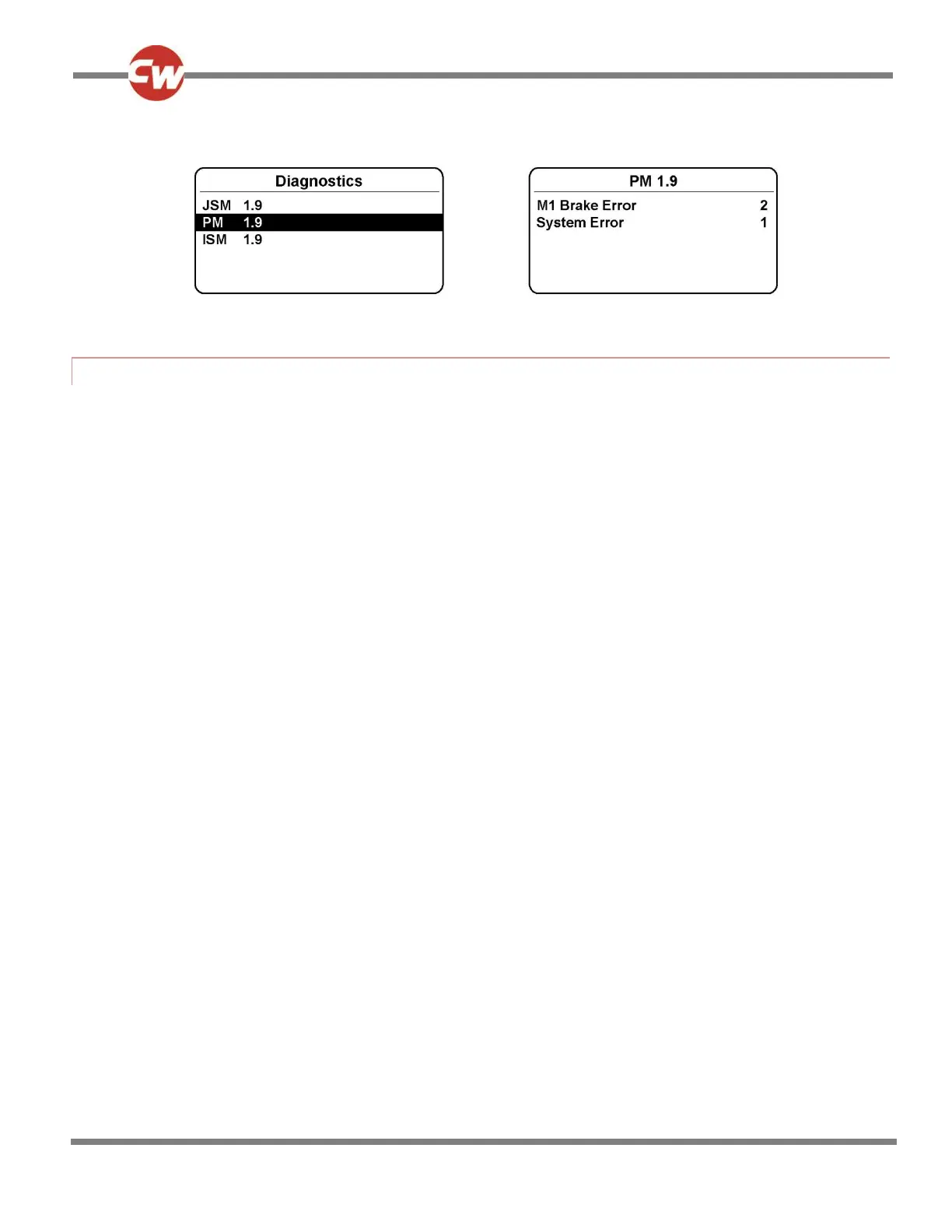

 If a Module has had no trips then the message No Entries will be displayed, otherwise something similar to the
following screen will be displayed.
2.3 CONNECTIONS
The R-net has various connections that are referred to by the diagnostic text. These connections can be on the Power Modules
(PM + ELPM), Joystick Modules(JSM + JSM LED) and the Seating Modules(LM, SM + ISM). The following diagram shows the
connections on these Modules.
