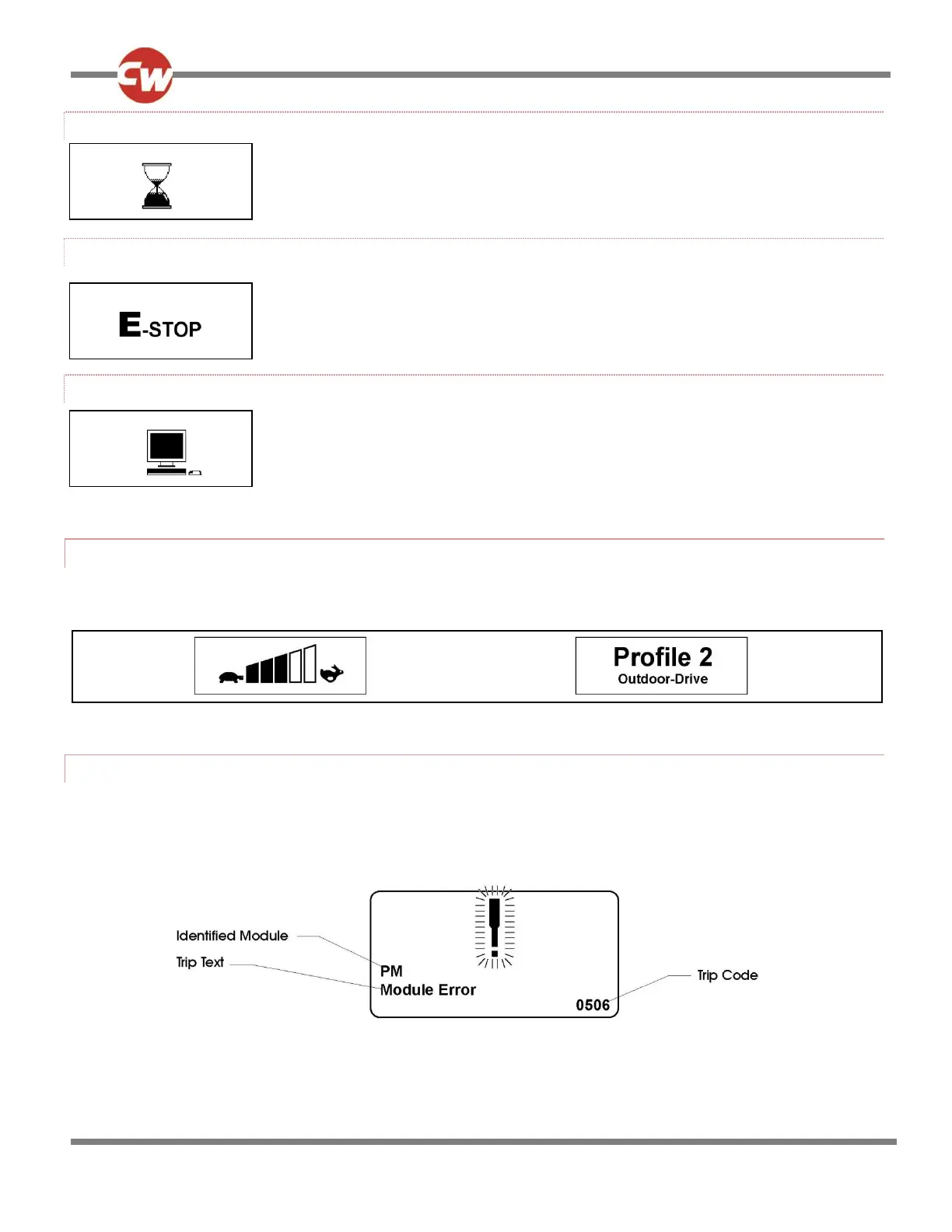

5.1.11 TIMER
This symbol is displayed when the control system is changing between different states. An
example would be entering into Programming Mode. The symbol is animated to show the sands
falling.
5.1.12 E-STOP
If the control system is programmed for latched drive or actuator operation, then it is normal for
an Emergency Stop Switch to be connected into the External Profile Switch Jack.
If the Emergency Stop Switch is operated or disconnected, this symbol will be displayed.
5.1.13 BLUETOOTH
When Bluetooth Mode is entered the screen will display the following icon.
5.2 MOMENTARY SCREENS
If the momentary screens are programmed to be displayed then pressing the Speed or Profile Buttons will display screens such
as below.
Speed Momentary Screen Profile Momentary Screen
5.3 DIAGNOSTIC SCREEN
When the control system safety circuits have operated and the control system has been prevented from movi ng the wheelchair
a diagnostics screen will be displayed.
This indicates a system trip, i.e. the R-net has detected a problem somewhere in the wheelchair’s electrical system.
If the error is in a non-active module, for example in the ISM but with a drive Profile is selected, then drive will still be possible,
however, the diagnostic screen will appear intermittently.
