If the keycode method is set, then the following button sequence will allow entry to OBP. Note, a dongl e will also allow OBP
access if this method is set.
Hold down the Horn button and then hold down the On/Off button until there is a short bleep. Note, the normal
power-up sound will occur prior to this bleep.
Release the Horn button, but continue to hold down the On/Off button until there are two further short bleeps.
Release the On/Off button, there will now be a longer bleep and OBP mode will be entered. See previous diagram.
WARNING:
If the keycode method is set, then it may be possible for a wheelchair user to gain entry to the OBP function. Curtiss-Wright
accepts no liability for losses of any kind if this method of OBP is set. Curtiss-Wright also accepts no liability for losses of any
kind if OBP access is gained by unauthorised personnel obtaining a dongle.
2.2 NAVIGATING THE OBP SCREENS
Whilst in OBP deflecting the joystick to the left, whilst the parameter title is highlighted, will display an elongated version of the
parameter name.
There are two basic forms of display screen – one which shows global parameters and one which shows parameters which are
profile dependent, i.e. can have different values in each of the drive profiles.

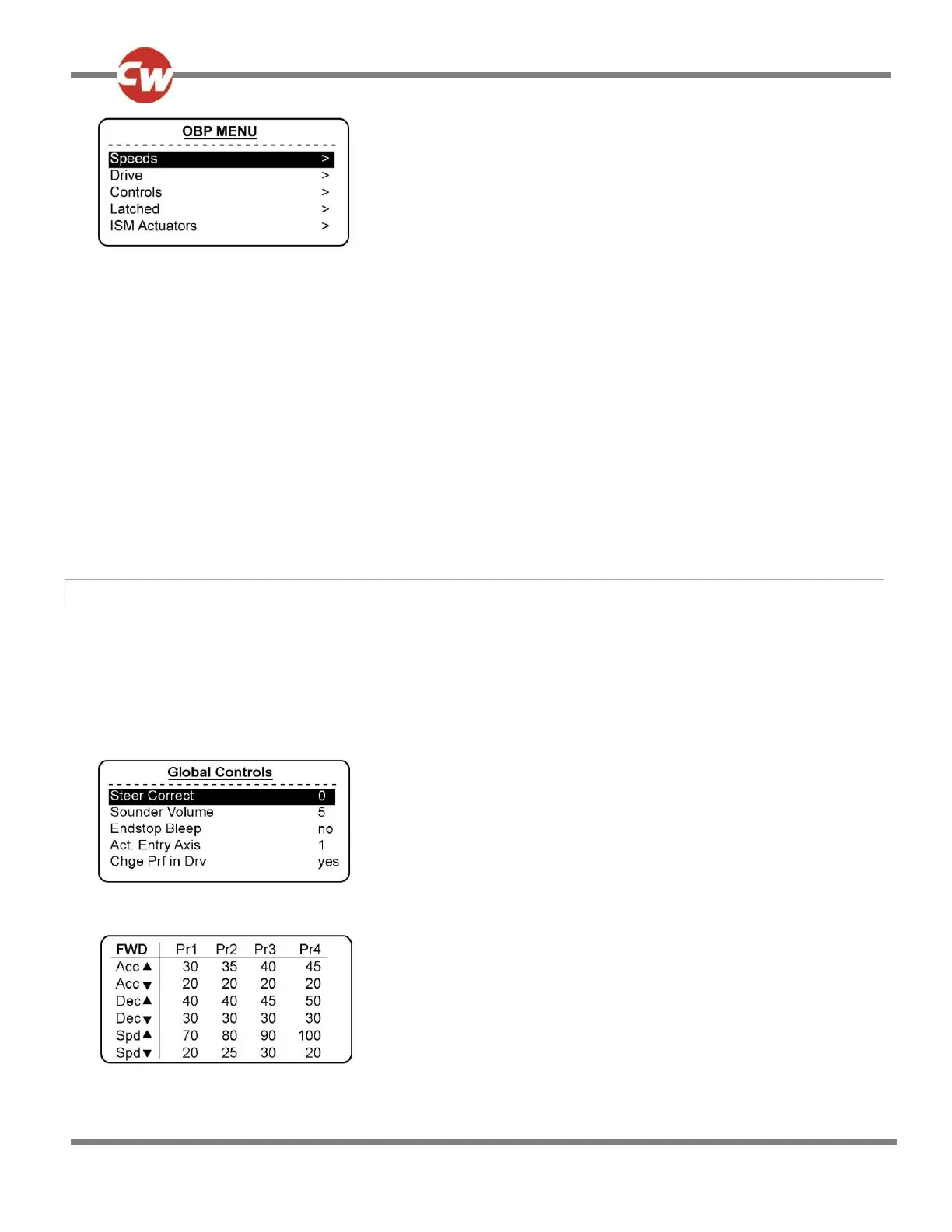

Example of a global parameter screen:
Forward joystick deflections will select the parameter above.
Reverse joystick deflections will select the parameter below.
Left joystick deflections will take you to the previous screen.
Right joystick deflections will have no effect.
Example of a profiled parameter screen:
Forward joystick deflections will select the parameter above.
Reverse joystick deflections will select the parameter below.
The first left joystick deflection will display the parameter name in full.
The second left joystick deflection will take you to the previous screen.
Right joystick deflections will select the parameter to the right, if available.
