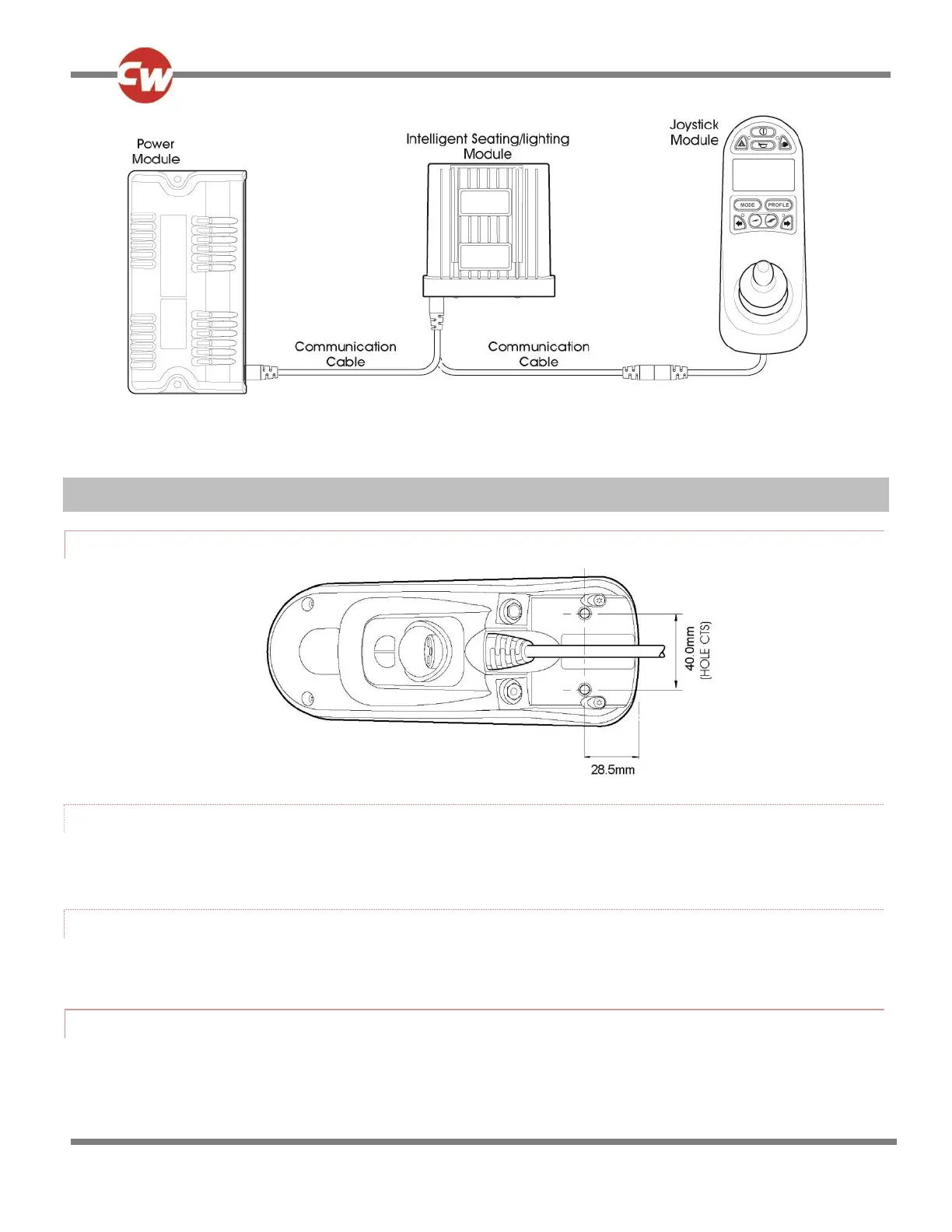

40 | R-net Technical Manual | Chapter 2 - Installation
4 MOUNTING
4.1 JOYSTICK MODULE MOUNTING
4.1.1 GENERAL
The Joystick Module should be secured using two M5 screws with a maximum penetration of 12mm. Be careful not to
overtighten the screws. See data sheet for further information.
4.1.2 ORIENTATION
The Joystick Module must be mounted with the joystick shaft pointing vertically upwards. If you want to use any other
mounting alternatives then contact Curtiss-Wright.
4.2 POWER MODULE MOUNTING
