Down: Inhibit in Bands Sets the condition of the input that will result in an inhibit of an actuator channel in the down direction
Down: Alarm Sets whether an audible alarm will sound when an actuator channel is inhibited in the down direction
Down: Inhibit Active in Axis Sets the Axes in which the Inhibit is active
5.2 SEATING
ISM-8 – STANDARD - GLOBAL
ACTUATOR AXES EXPLAINED
An actuator axis means a particular function of seat control. An axis may involve just one actuator motor, for example, a simple
seat lift; or an axis may involve multiple motors, for example, adjustment of both footrests simultaneously or an anti -shear
recline system. There are 8 actuator motor channels on the ISM-8 and an axis can combine any number of these channels.
The default ISM-8 application can support up to 12 actuator axes. Each is programmable to define which actuator motors move
and also how the user display appears. The relevant parameters are Axis Channels and Axis Display.
5.2.1 ACTUATOR END STOP BLEEP
This allows the use of an Audible bleep to tell you when the Actuator is stalled at its end stop.
This parameter can be set to On or Off.
5.2.2 ACTUATOR MODE ENTRY AXIS
This sets the actuator axis that is selected when Seating Mode is entered.

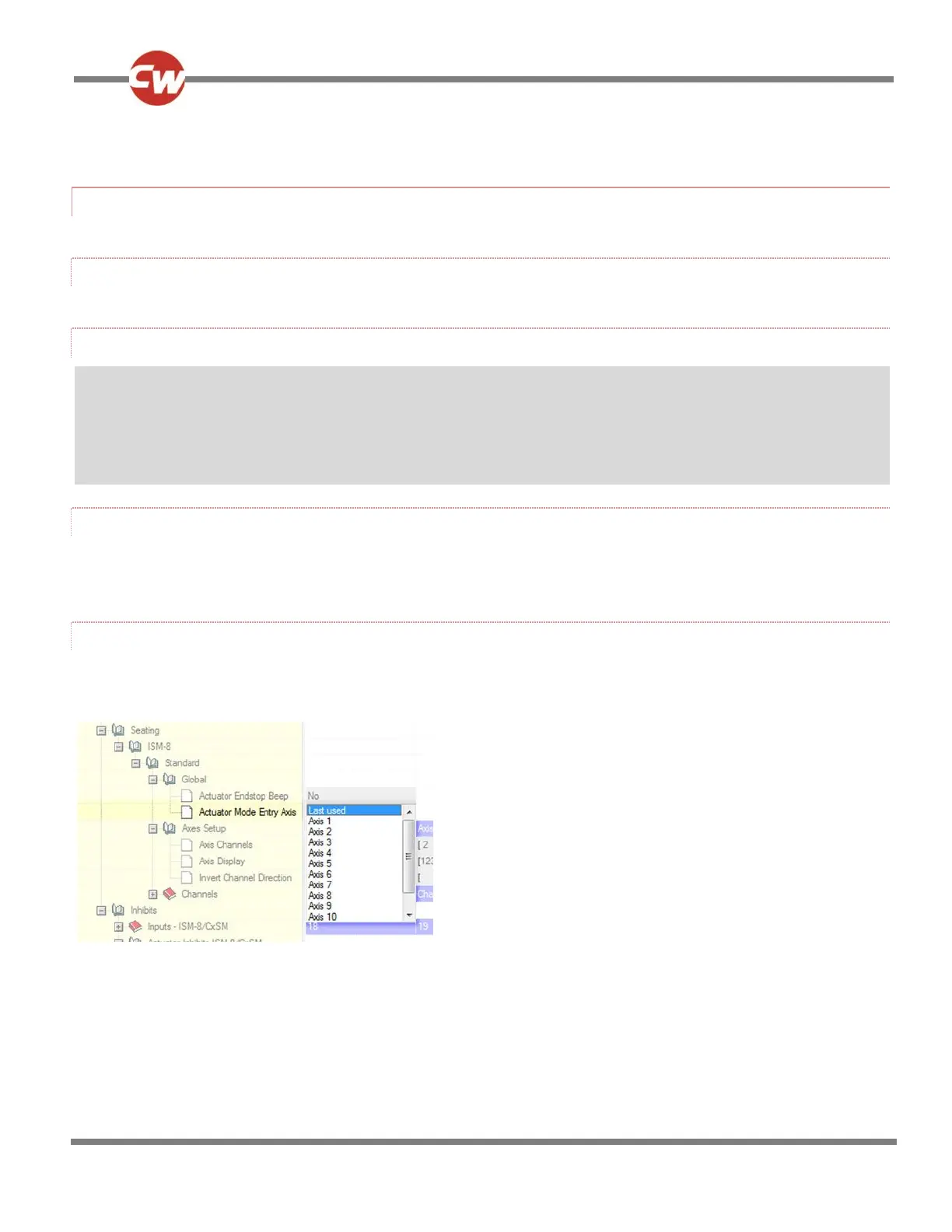

The programmable options are in the form of a drop-down menu, as shown in the following diagram.
Simply select the required axis. If Last used is selected, this means the axis that was selected on the last occasion Seating Mode
was used will be the selected axis when Seating Mode is re-entered.
