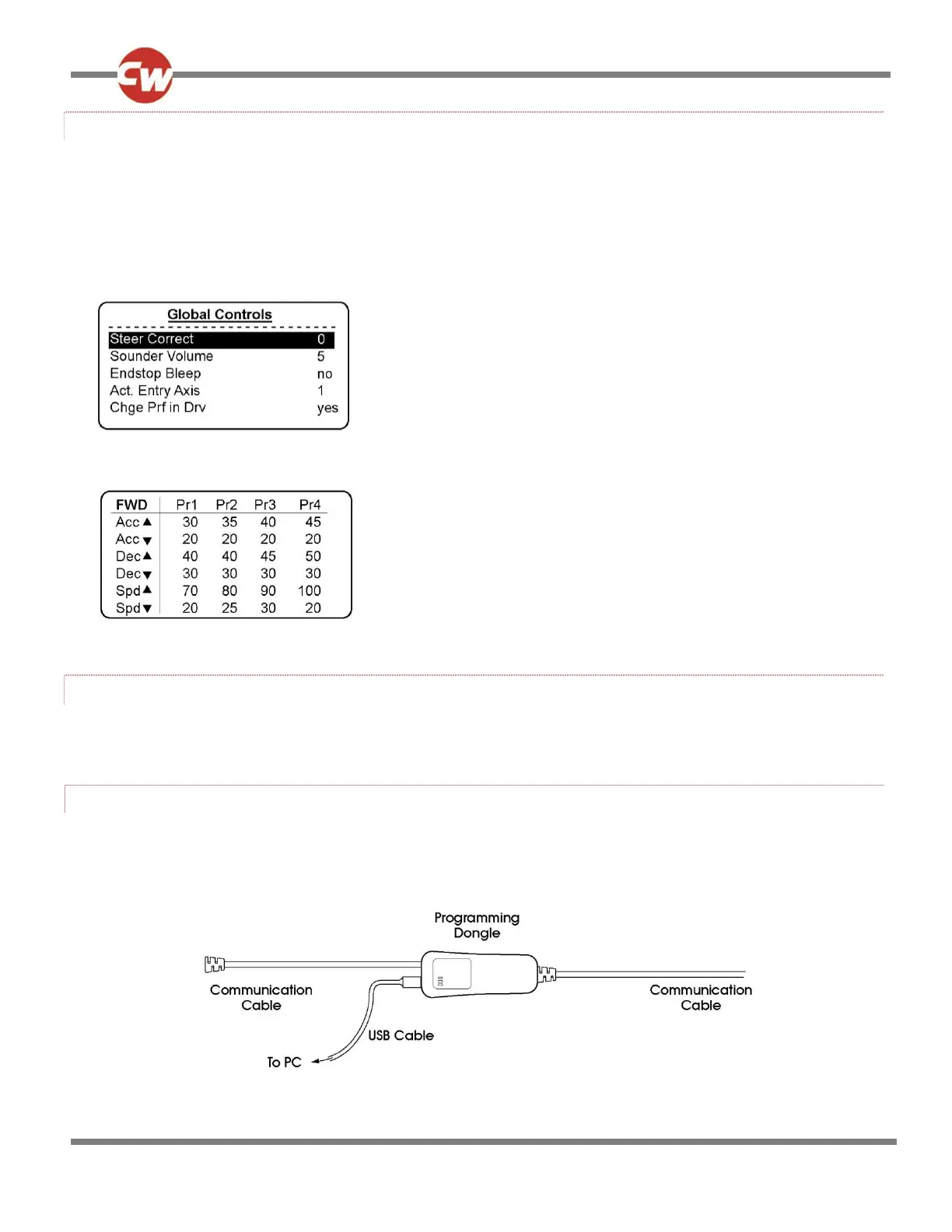

10.1.1 NAVIGATING THE OBP SCREENS
Whilst in OBP deflecting the joystick to the left, whilst the parameter title is highlighted, will display an elongated version of the
parameter name.
There are two basic forms of display screen – one which shows global parameters and one which shows parameters which ar e
profile dependent, i.e. can have different values in each of the drive profiles.
Example of a global parameter screen:
Forward joystick deflections will select the parameter above.
Reverse joystick deflections will select the parameter below.
Left joystick deflections will take you to the previous screen.
Right joystick deflections will have no effect.
Example of a profiled parameter screen:
Forward joystick deflections will select the parameter above.
Reverse joystick deflections will select the parameter below.
The first left joystick deflection will display the parameter name in full.
The second left joystick deflection will take you to the previous screen.
Right joystick deflections will select the parameter to the right, if available.
10.1.2 MAKING AN ADJUSTMENT
Once the parameter for adjustment has been selected, the Speed buttons can be used to make adjustments.
To ensure all new values are stored correctly, exit OBP mode with a series of left hand joystic k deflections
10.2 PC PROGRAMMING
To utilize the R-net PC Programming Suite the R-net Dongle must first be connected in the communications system as shown in
section 10.1. A USB cable can then be connected between the Dongle and a PC with the R-Net PC Programmer installed. For
further details on programming refer to Chapter 3.
