If the hardware dongle method is set, then a Curtiss-Wright OBP Dongle needs to be connected to allow access to OBP. To use
the dongle, follow the sequence below:
Turn off the control system.

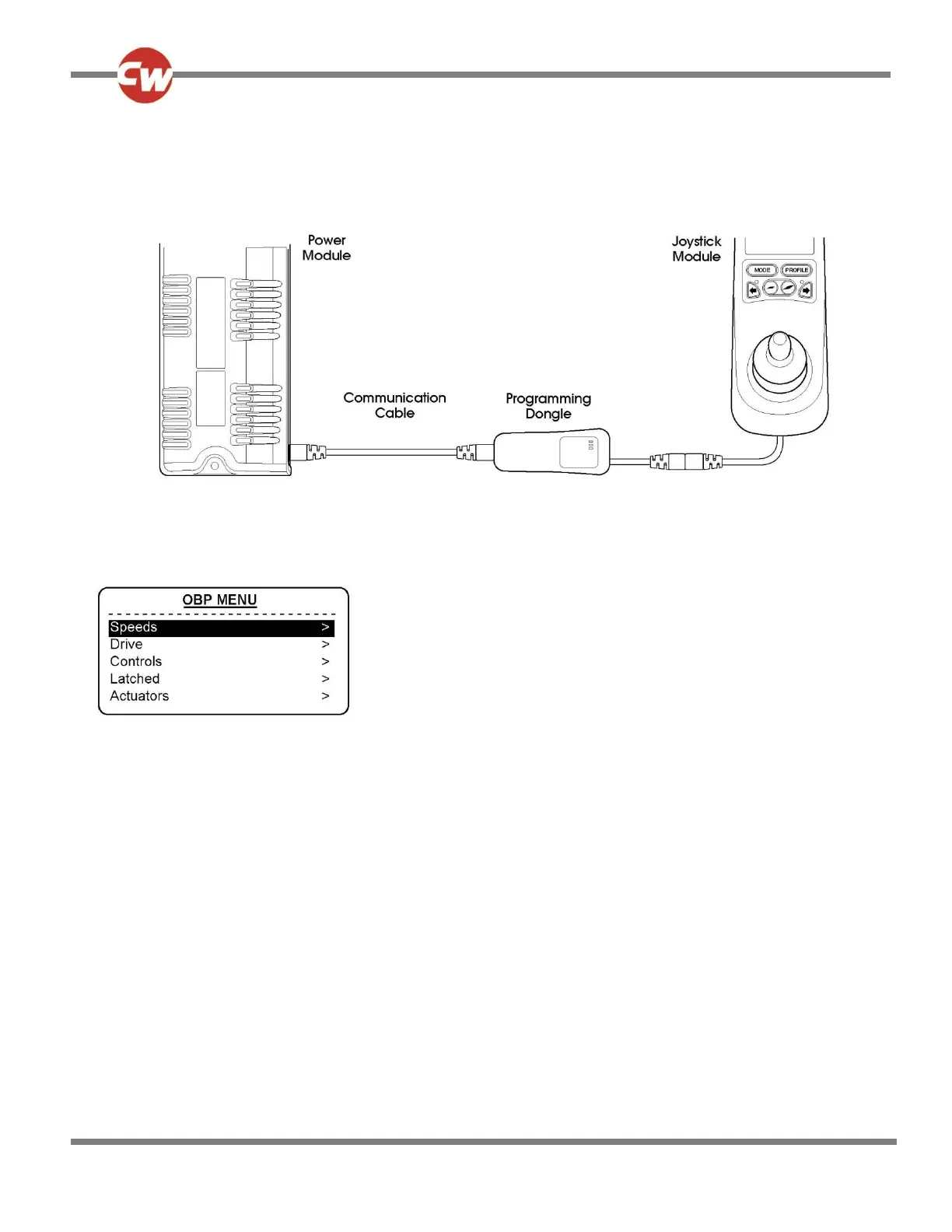

Insert the R-net Dongle along the communication cables in the system configuration.
Turn on the control system
After initialization press the Mode key until the OBP screen is reached. See following diagram.
After initialization OBP will be automatically entered.
If the keycode method is set, then the following button sequence will allow entry to OBP. Note, a dongle will also allow OBP
access if this method is set.
Hold down the Horn button and then hold down the On/Off button until there is a short bleep. Note, the normal
power-up sound will occur prior to this bleep.
Release the Horn button, but continue to hold down the On/Off button until there are two further short bleeps.
Release the On/Off button, there will now be a longer bleep and OBP mode will be entered. See previous diagram.
WARNING:
If the keycode method is set, then it may be possible for a wheelchair user to gain entry to the OBP function. Curtiss-Wright
accepts no liability for losses of any kind if this method of OBP is set. Curtiss-Wright also accepts no liability for losses of any
kind if OBP access is gained by unauthorised personnel obtaining a dongle.
