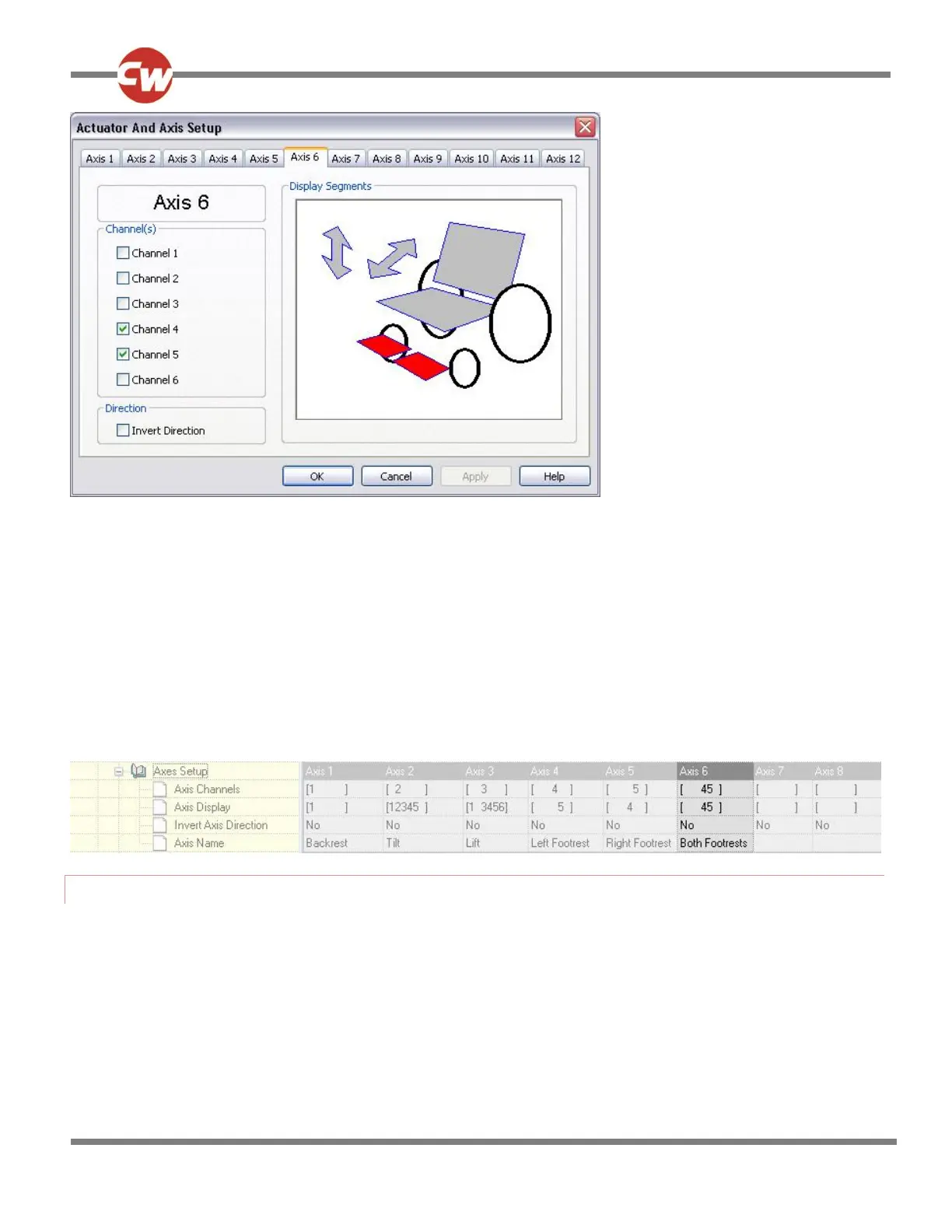

In this example, Axis 6 is the axis that is being set-up. With the programming as shown, Channels 4 and 5 will operate in this axis
and the user display on the Joystick Module will highlight those areas colored in red.
NOTE:
The outline of the whole wheelchair symbol is always present on the user display, but with the elements highlighted as
defined in red. However, if the arrow symbols are not defined in red, they will not appear on the display.
In this example, the axis direction is not inverted, i.e. when the joystick is deflected forwards, the channel outputs will have pin
2 positive with respect to pin 1.
When the dialogue box is closed, the programming is expressed as follows:
9.3 AXIS NAME
This parameter sets what text will be displayed on the LCD when the associated Actuator Axis is selected.
NOTE:
This is only applicable on Color Joystick Modules and the Omni.
