7.5 DOWN SPEED - (DNSPD)
This sets the speed of the SM channel(s) in a given axis in the Down direction.
Down is defined as pin 1 positive with respect to pin 2 when the joystick is displaced in reverse.
Programmable range is 25% to 100% in steps of 1%.
7.5.1 AXIS END FORCE
This parameter sets the maximum force for a particular actuator Axis. The parameter i s programmable between 2-12 in steps of
1. The PG default value is 12. The value of Endforce roughly equates to Amps.
7.7 ACTUATOR CURRENT LIMIT TIMEOUT
This parameter sets the time after which Endforce will not be applied to the actuator. It is programmable between 0 (OFF) and
5000ms in steps of 10ms. The PG default value is 0 (OFF).
7.6 AXIS DISPLAY
This parameter sets which Actuator Indicator LED(s) on a JSM-LED are illuminated when a particular axis is selected.
If the Seating Module is being used in conjunction with an LCD based Module, then this parameter will set which elements in
the wheelchair symbol on the display are illuminated.

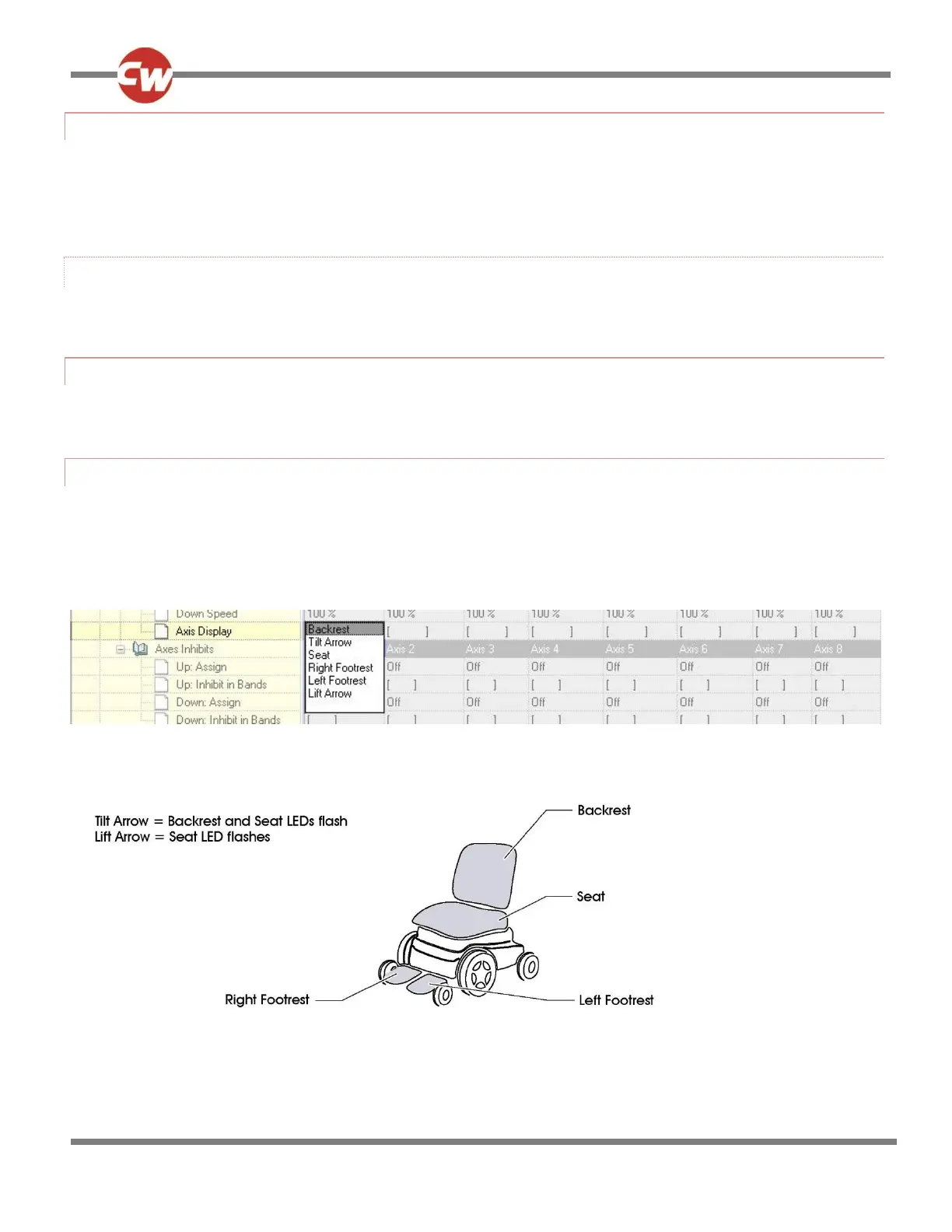

The programmable options are in the form of a drop down menu, as shown in the following diagram.
In the case of the JSM-LED, the programmable options relate to the wheelchair symbol as below.
In the case of an LCD based Joystick Module, the programmable options relate to the wheelchair symbol as below.
