Curtiss-Wright | PG Drives Technology
SK77981-14
130 | R-net Technical Manual | Chapter 4 – ELPM 90, JSM-LED &
SM

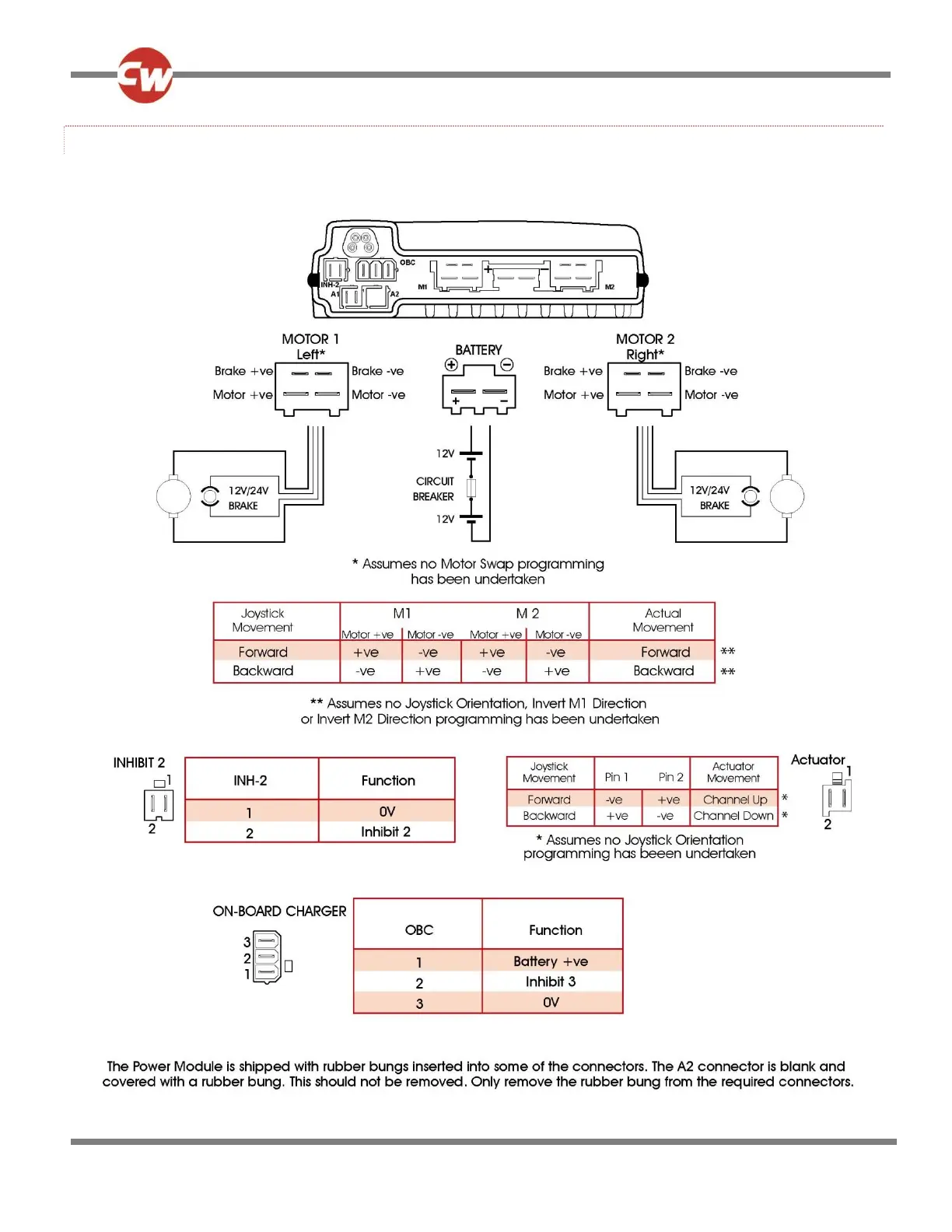

6.1.1 POWER MODULE WIRING
The following diagram gives details of the LED Power Module connections
