The parameter, Assign, links the software inhibits to an actual hardware inhibit. For example, if Assign: A is set to 18, then the
operation of Channel x Up Inhibit will be controlled via Inhibit Input 18, which is located on the ISM-8.
The programmable options are Off 2, 3 and 18 to 33.
If set to Off, then the relevant Channel x Up Inhibit can never be active.
If set to a numeric value, then the relevant Channel x Up Inhibit will be under the control of the Inhibit Input that
corresponds to that number. Inhibit Inputs 2 and 3 are on the Power Module and Inhibits 18 to 33 are on the ISM-8.
5.3.11 CHANNEL X – DOWN: INHIBIT IN BANDS
This sets the condition of the input (assigned to Channel x Down Inhibit) that will result in a n inhibit of the actuator drive in the
down direction. Down is defined as pin 1 positive with respect to pin 2 when the joystick is displaced in reverse and Invert
Channel Direction is not set. The inhibit can be set to occur in any combination of bands. Inhibits Explained for more details on
bands.
The programmable options are Band 0, Band 1, Band 2 and Band 3.

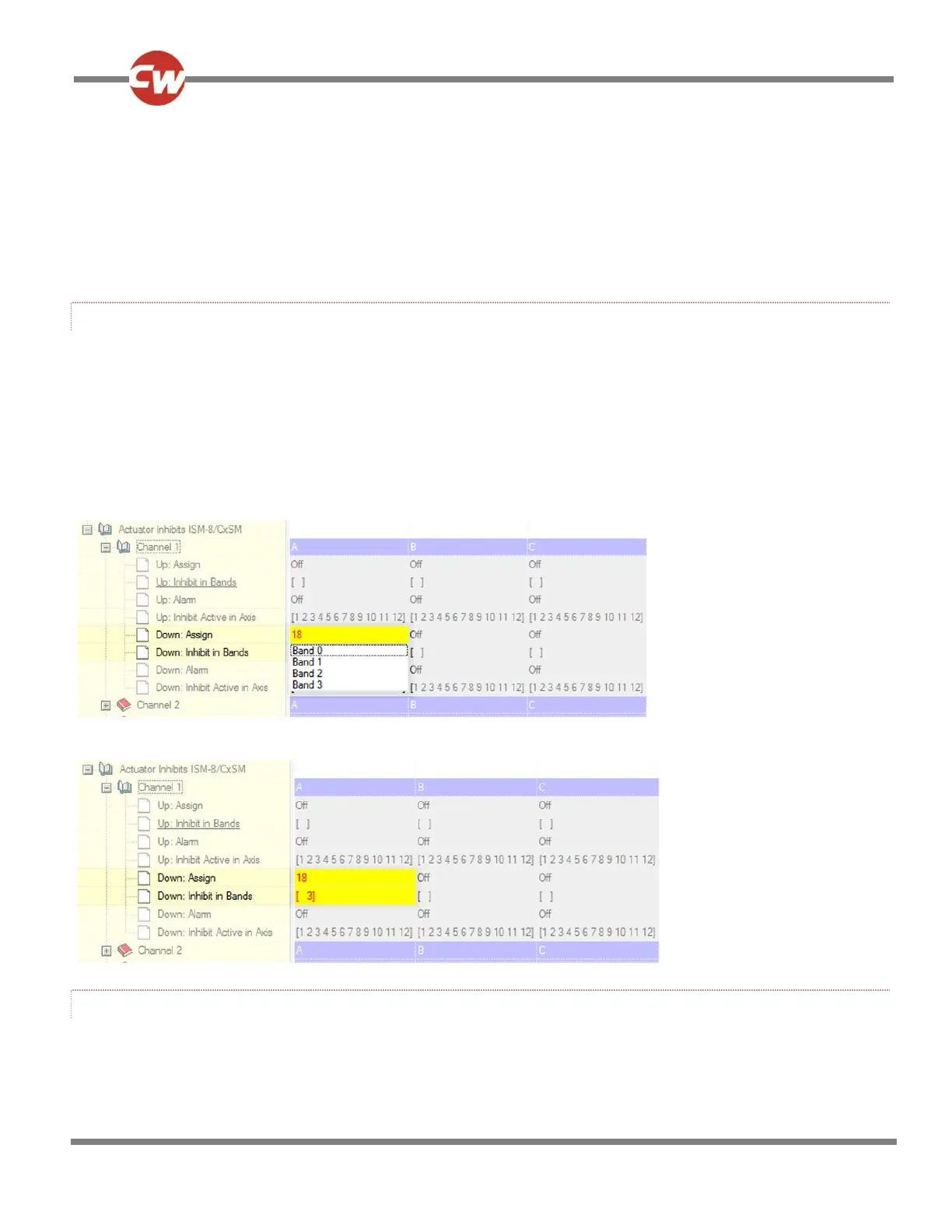

If the parameter is selected, then a drop down menu as below will appear and the bands required to invoke the inhibit should
be selected. For example, if the inhibit is required for Band 3 only, then that option shoul d be selected, as shown.
When the drop down menu is closed, it would appear as follows.
5.3.12 CHANNEL X – DOWN: ALARM
This sets whether an audible alarm will sound when a channel’s down direction in inhibited. Down is defined as pin 1 positive
with respect to pin 2 when the joystick is displaced in reverse and Invert Channel Direction is not set.
The programmable options are On and Off.
