D-Link DSR-Ser
ies User Manual
118
Section 7 - VPN

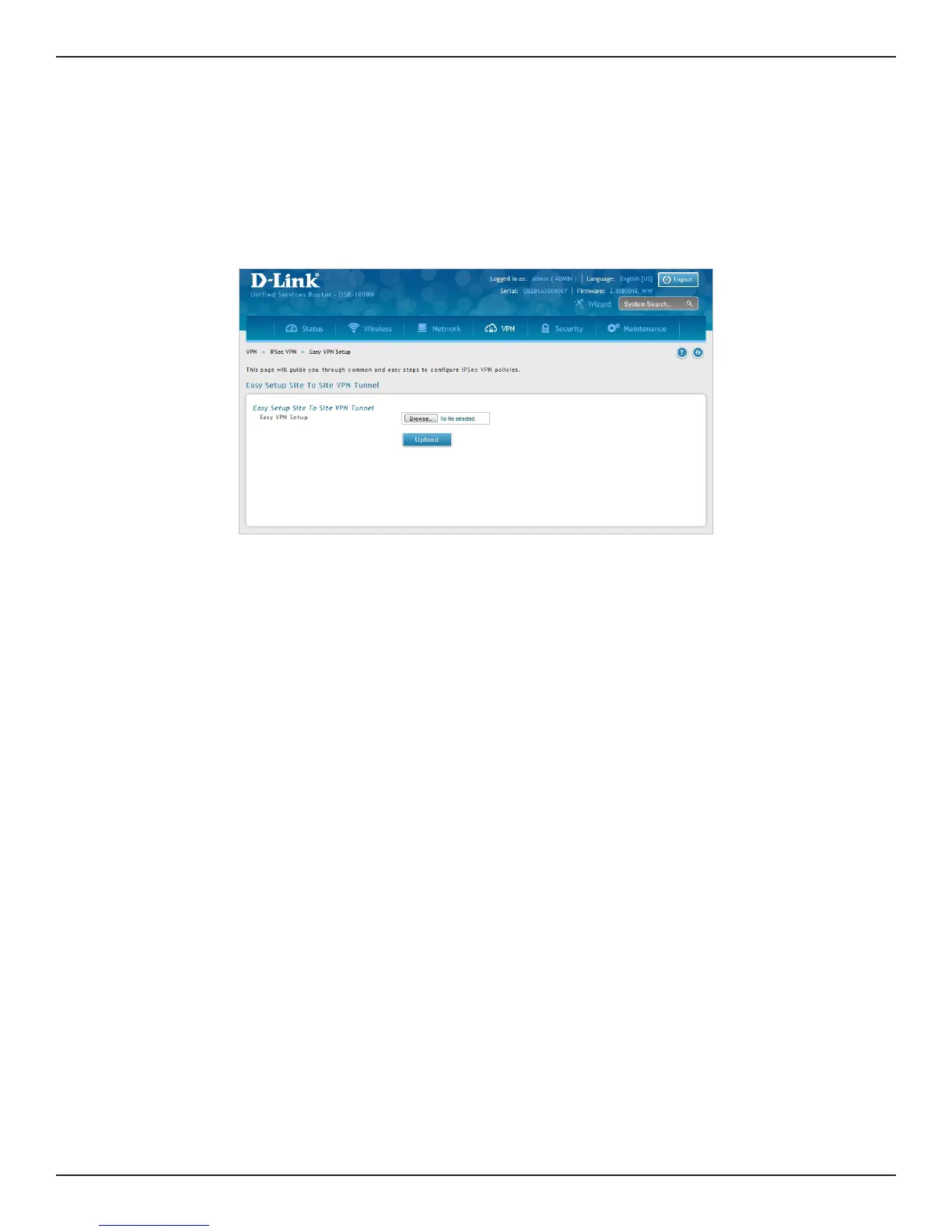

Easy VPN
S
etup
T
o upload an expor
ted IPSec
VPN policy
:
1. Click
VPN
>
IPSec VPN
>
Easy VPN
S
etup
.
2. Click
Brow
se
and navigate t
o the polic
y īle you want t
o upload. Select it and click
Op
en
.
3. Click
Upload
.
4.
Once uploaded, go to
VPN
>
IPSec VPN
>
P
olicies
and the uploaded
VPN will be listed. Right-click it
to edit or delete
.
131
133
