D-Link DSR-1000 User Manual

D-Link DSR-Series User Manual 72
Section 5 - Connect to the Internet
OSPF
Path: Network > Routing > OSPF
OSPF is an interior gateway protocol that routes Internet Protocol (IP) packets solely within a single routing
domain. It gathers link state information from available routers and constructs a topology map of the network.
OSPF version 2 is a routing protocol which described in RFC2328 - OSPF Version 2. OSPF is IGP (Interior Gateway
Protocols). OSPF is widely used in large networks such as ISP backbone and enterprise networks.
Note: The DSR-150/150N/250/250N routers do not support OSPFv2.

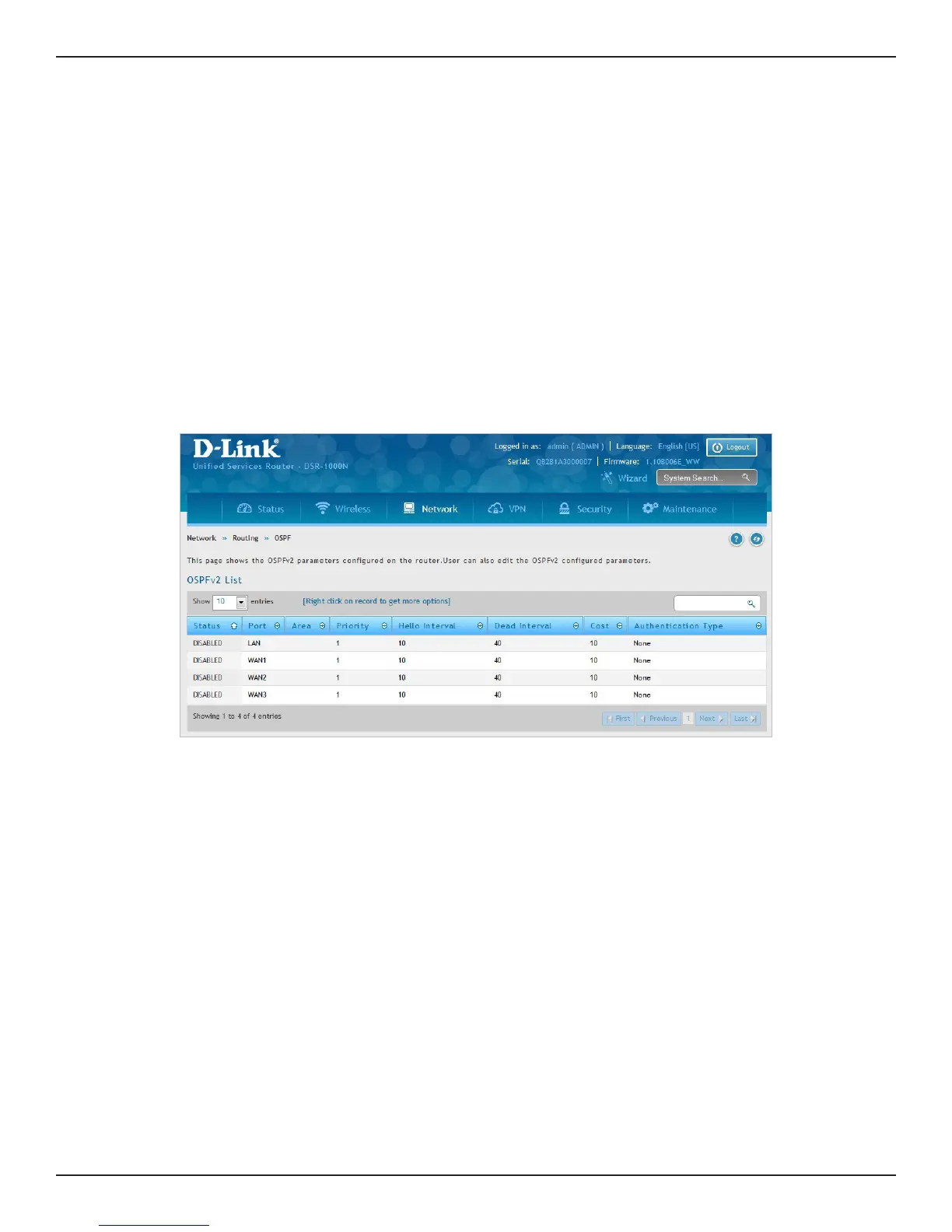

To congure OSPF:
1. Click Network > Routing > OSPF.
2. Right-click the port you want to edit (LAN/WAN1/WAN2/WAN3/L2TPoverIPSec) and select Edit.
3. Complete the elds in the table on the next page and click Save.
