Section 4 - LAN Conguration
VLAN

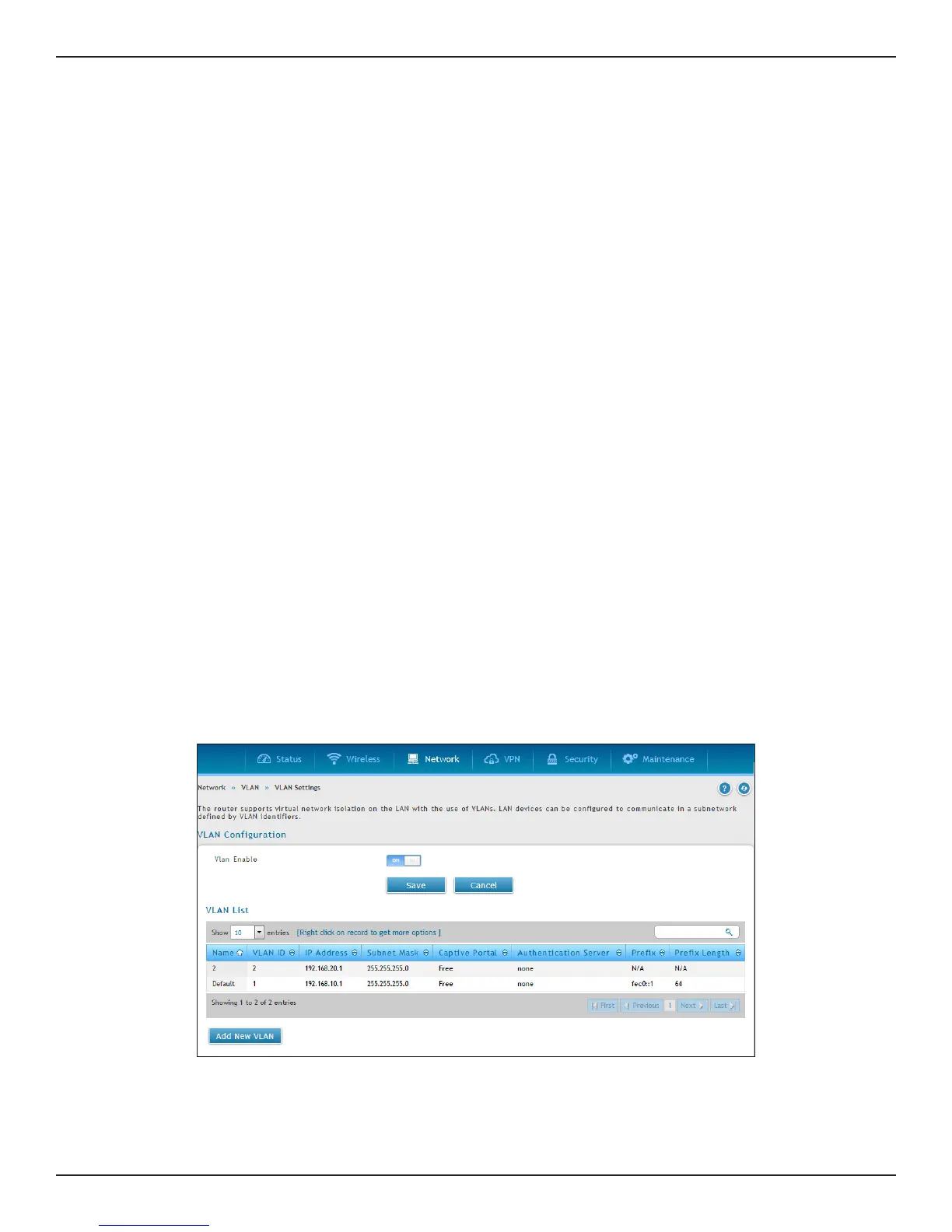

VLAN Settings
Path: Network > VLAN > VLAN Settings
The VLAN List page displays a list of congured VLANs by name and VLAN ID. A VLAN membership can be created
by clicking the Add New VLAN button below the list.
A VLAN membership entry consists of a VLAN identier and the numerical VLAN ID which is assigned to the VLAN
membership. The VLAN ID value can be any number from 2 to 4093. VLAN ID 1 is reserved for the default VLAN,
which is used for untagged frames received on the interface.
The router supports virtual network isolation on the LAN with the use of VLANs. LAN devices can be congured
to communicate in a sub network dened by VLAN identiers. LAN ports can be assigned unique VLAN IDs so
that trac to and from that physical port can be isolated from the general LAN.
VLAN ltering is particularly useful to limit broadcast packets of a device in a large network VLAN support is
enabled by default in the router. In the VLAN Conguration page, enable VLAN support on the router and then
proceed to the next section to dene the virtual network.
To create a new VLAN:
1. Click Network > LAN > VLAN Settings.
2. Click On/O button to enable or disable VLAN. If enabled, it allows the user to add a new VLAN.
3. Click Add New VLAN at the bottom.
4. Enter the following required information from the table on the next page.
