D-Link DSR-Ser
ies User Manual
148
Section 7 - VPN
Remote Networks
T
o create r
emote networks:

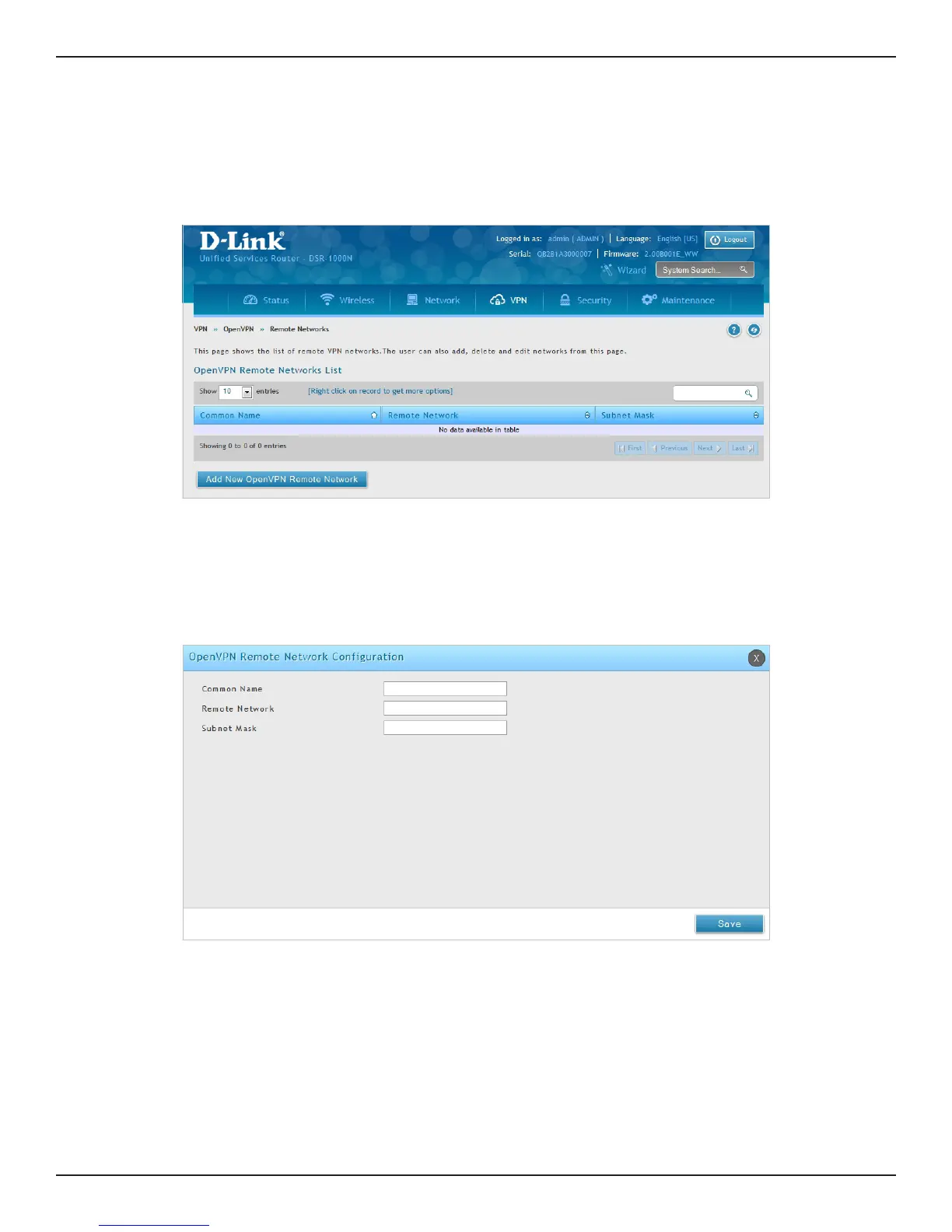

1. Click
VPN
>
OpenVPN
>
Remote Networks
.
2. Click
Add Ne
w OpenVPN Remote Network
.
3.
Enter a common name of the remote network.
4.
Enter a network address of the remote r
esource
.
5.
Enter the subnet mask of the remote resour
ce.
6. Click
S
ave
.
161
163
