D-Link DSR-Series User Manual 220
Section 9 - Maintenance
SNMP
Path: Maintenance > Management > SNMP
SNMP is an additional management tool that is useful when multiple routers in a network are being managed by
a central Master system. When an external SNMP manager is provided with this router’s Management Information
Base (MIB) le, the manager can update the router’s hierarchal variables to view or update conguration
parameters. The router as a managed device has an SNMP agent that allows the MIB conguration variables
to be accessed by the Master (the SNMP manager). The Access Control List on the router identies managers
in the network that have read-only or read-write SNMP credentials. The Traps List outlines the port over which
notications from this router are provided to the SNMP community (managers) and also the SNMP version (v1,
v2c, v3) for the trap.

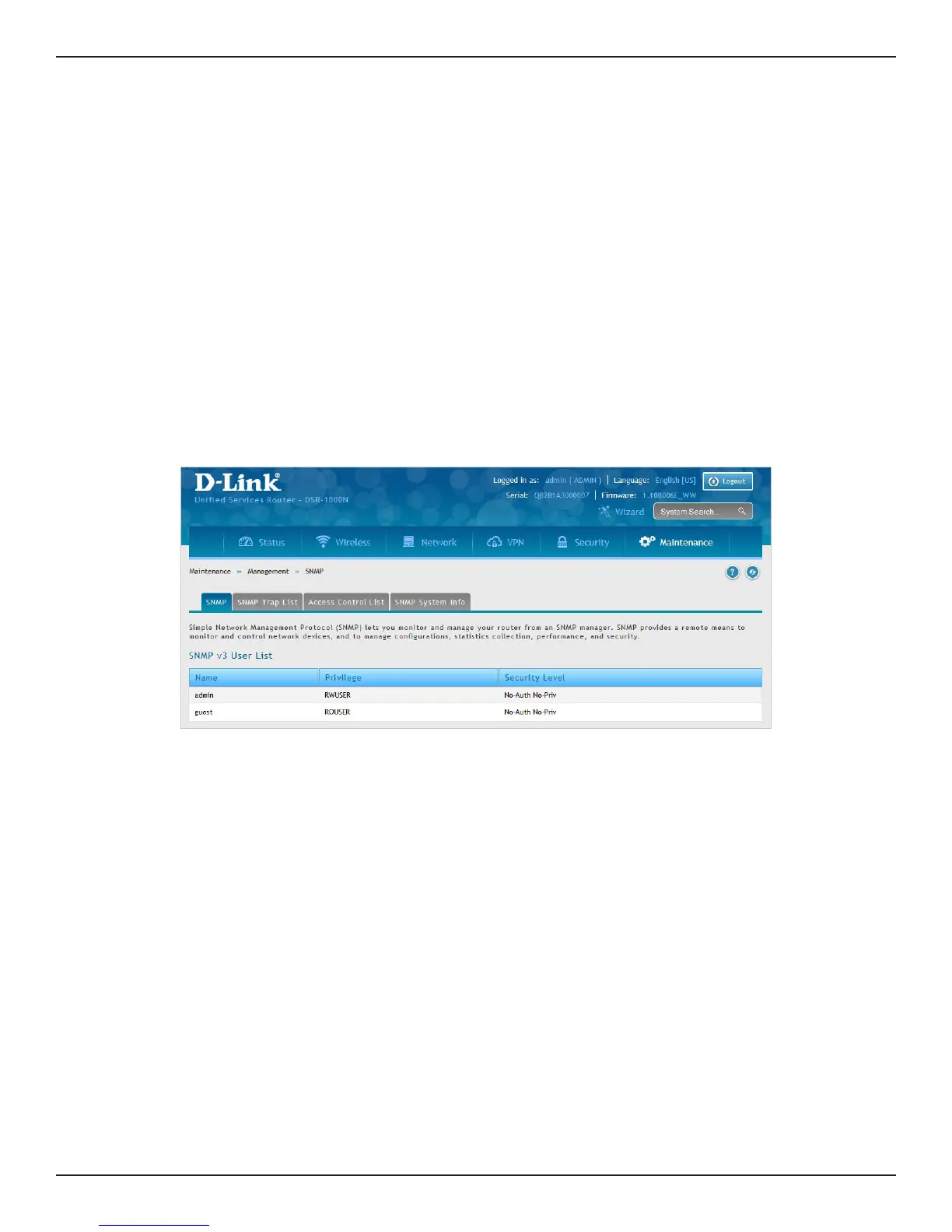

1. Click Maintenance > Management > SNMP tab.
SNMP User List
2. Right-click a user and select Edit if you want to change the security level.
3. Select the security level from the drop-down list. Select one of the following:
• No-Auth No-Priv: Only requires a user name match for authentication.
• Auth No-Priv: Provides authentication based on the MD5 or SHA algorithms.
• Auth Priv: Provides authentication based on the MD5 or SHA algorithms as well as encryption
privacy with the DES 256-bit standard.
4. Click Save.
