D-Link DSR-Ser
ies User Manual
249
Section 10 - Status and Statistics
Manage Dashboard
T

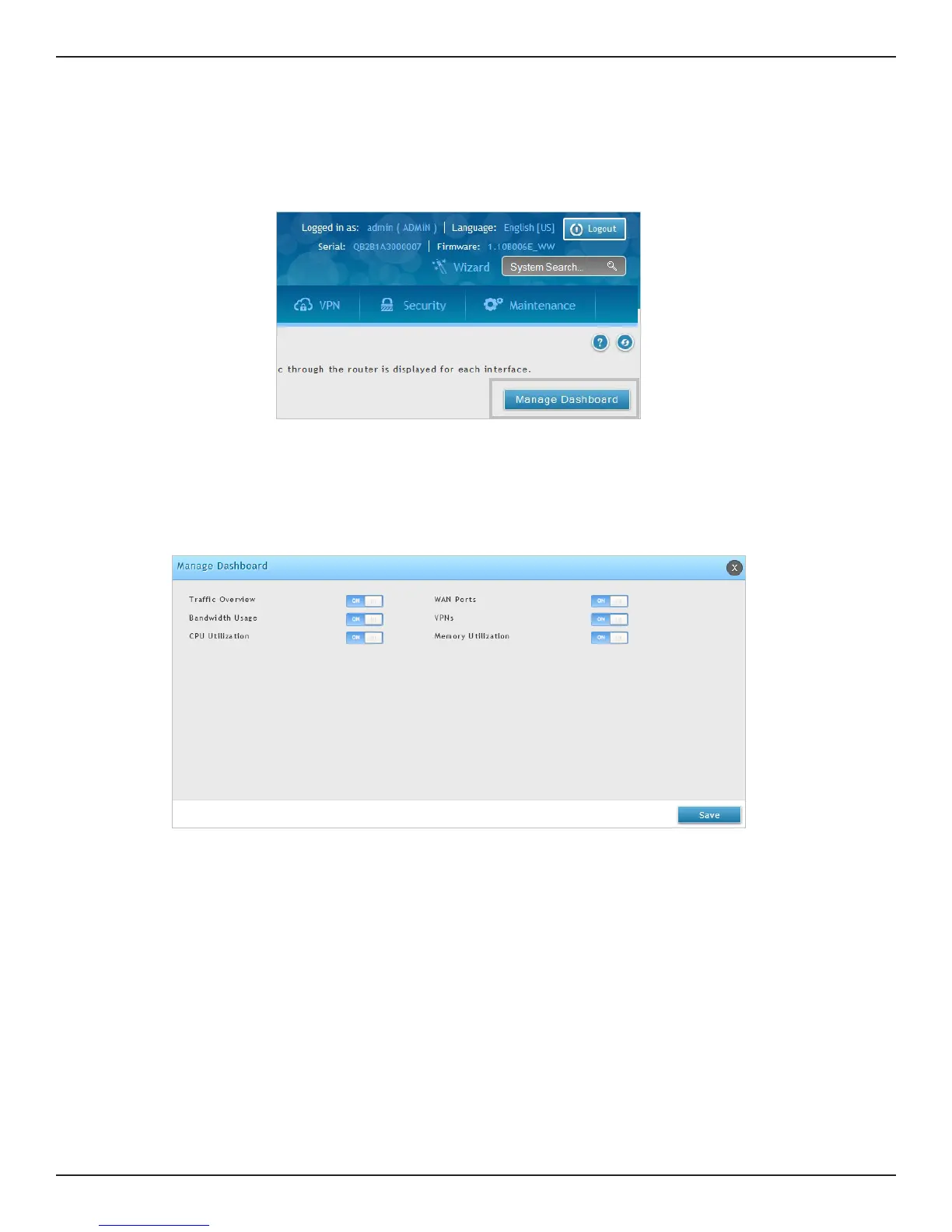

o manage the dashboard:
1.
Click on the
M
anage Dashboard
button.
2.
The following windo
w will pop out and allow you to enable or disable the o
ver
view panels shown on
the dashboard.
T
oggle the panel to
ON
or
OFF
and click
Save
.
262
264
