D-Link DSR-1000 User Manual

D-Link DSR-Series User Manual 125
Section 7 - VPN
L2TP Client
Field Description
Client Toggle to ON to enable L2TP client.
Server IP Enter the IP address of the L2TP server you want to connect to.
Remote Network Enter the remote network address. This address is local for the L2TP Server.
Remote Netmask Enter the remote network subnet mask.
Username Enter your L2TP user name.
Password Enter your L2TP password.
Reconnect Mode Select Always On or On Demand.
MPPE Encryption Toggle to ON to enable Microsoft Point-to-Point Encryption (MPPE).
Auto Connect Toggle to On to enable Auto Connect.
Time
Enter the reconnect time. If the client is disconnected from the server, it will try to connect to the server
after the specied time.
Save Click Save to save and activate your settings.

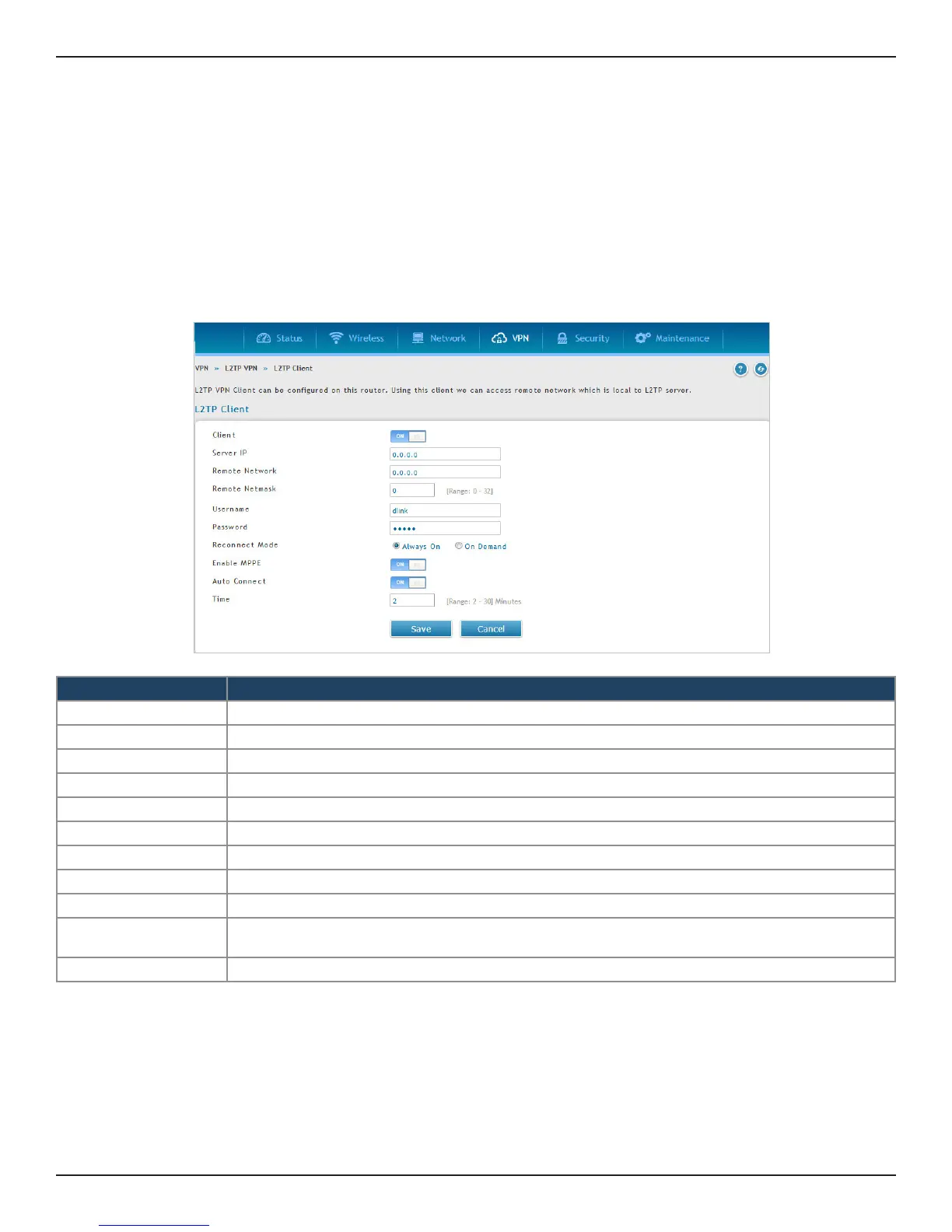

L2TP VPN Client can be congured on this router. Using this client we can access remote network which is local to
L2TP server. Once client is enabled, the user can access Status > Active VPNs page and establish L2TP VPN tunnel
clicking Connect.
To congure the router as a L2TP VPN client:
1. Click VPN > L2TP VPN > L2TP Client tab.
2. Toggle Client to ON and complete the elds in the table below.
Note: When the L2TP Client conguration is correctly saved and the L2TP server is up, the tunnel initiation starts
automatically.
