D-Link DSR-Ser
ies User Manual
257
Section 10 - Status and Statistics
USB Status
P
ath: Status > Syst
em Information > USB Status

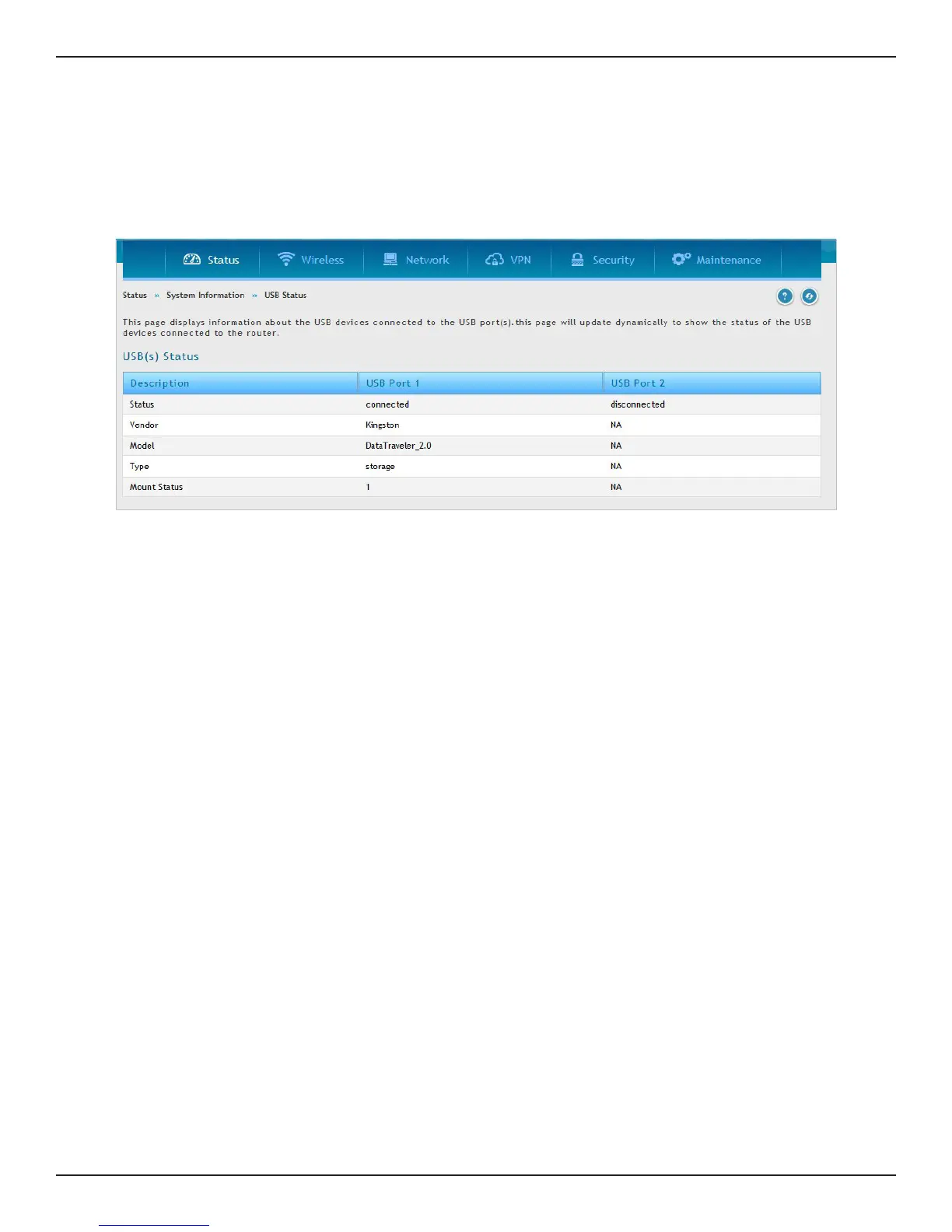

The USB Status page summarizes the USB devic
es connected to the router
.
Y
ou may connect USB pr
inter and
USB storage device dir
ectly to the router
.
270
272
