Section 7 - VPN
PPTP VPN
PPTP Server
Path: VPN > PPTP VPN > PPTP Server
A PPTP VPN can be established through this router. Once enabled a PPTP server is available on the router for LAN
and WAN PPTP client users to access. Once the PPTP server is enabled, PPTP clients that are within the range of
congured IP addresses of allowed clients can reach the router’s PPTP server. Once authenticated by the PPTP
server (the tunnel endpoint), PPTP clients have access to the network managed by the router.
The range of IP addresses allocated to PPTP clients can coincide with the LAN subnet. As well the PPTP server
will default to local PPTP user authentication, but can be congured to employ an external authentication server
should one be congured.
Field Description
Enable PPTP Server Select either IPv4 or IPv6.
PPTP Routing Mode Select either NAT or Classical.
Starting/Ending IP Address Enter the IP address range to assign your PPTP clients.
IPv6 Prex If you selected IPv6, enter the IPv6 prex.
IPv6 Prex Length If you selected IPv6, enter the IPv6 prex length.
Authentication Select the authentication type from the drop-down menu.
Authentication Supported Toggle which type of authentication you want to enable to ON.
Idle TimeOut Enter the amount of time in seconds that the connection will disconnect when idle.
NetBIOS
Toggle to ON to allow NetBIOS broadcasts to travel over the VPN tunnel. Enter Primary and
Secondary Windows Server address for Netbios.
Save Click to save your settings.

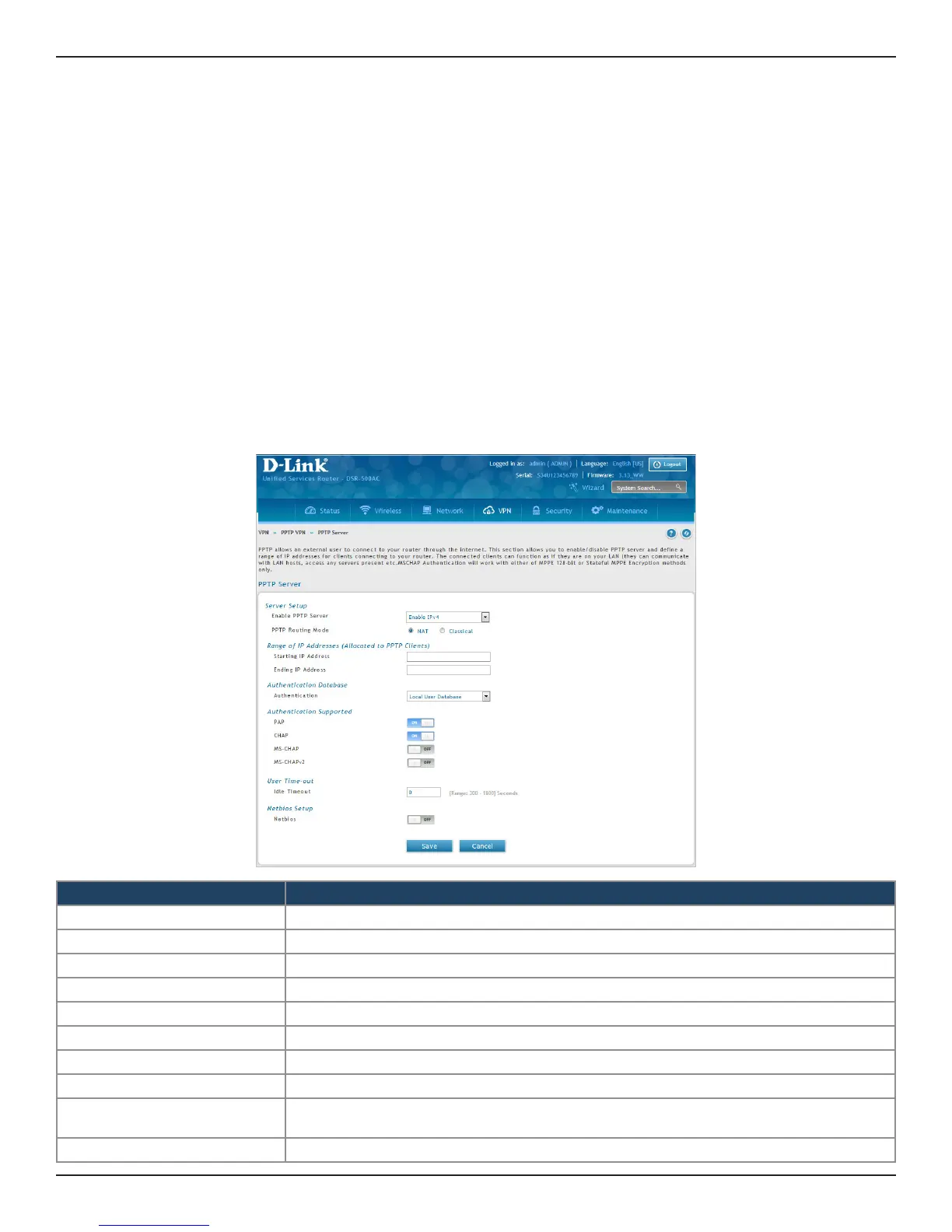

To create a PPTP VPN server:
1. Click VPN > PPTP VPN > PPTP Server.
2. Complete the elds in the table below and click Save.
