D-Link DSR-Ser
ies User Manual
68
Section 4 - LAN Conīguration
Jumbo F
rames
Jumbo frames are Ethernet frames with mor
e than 1500 bytes of payload
.
When this option is enabled, the LAN
devices can ex
change information at Jumbo frames ra
te.
P
ath: Network > Internet > Jumbo Fr
ames
T
o enable jumbo frames:

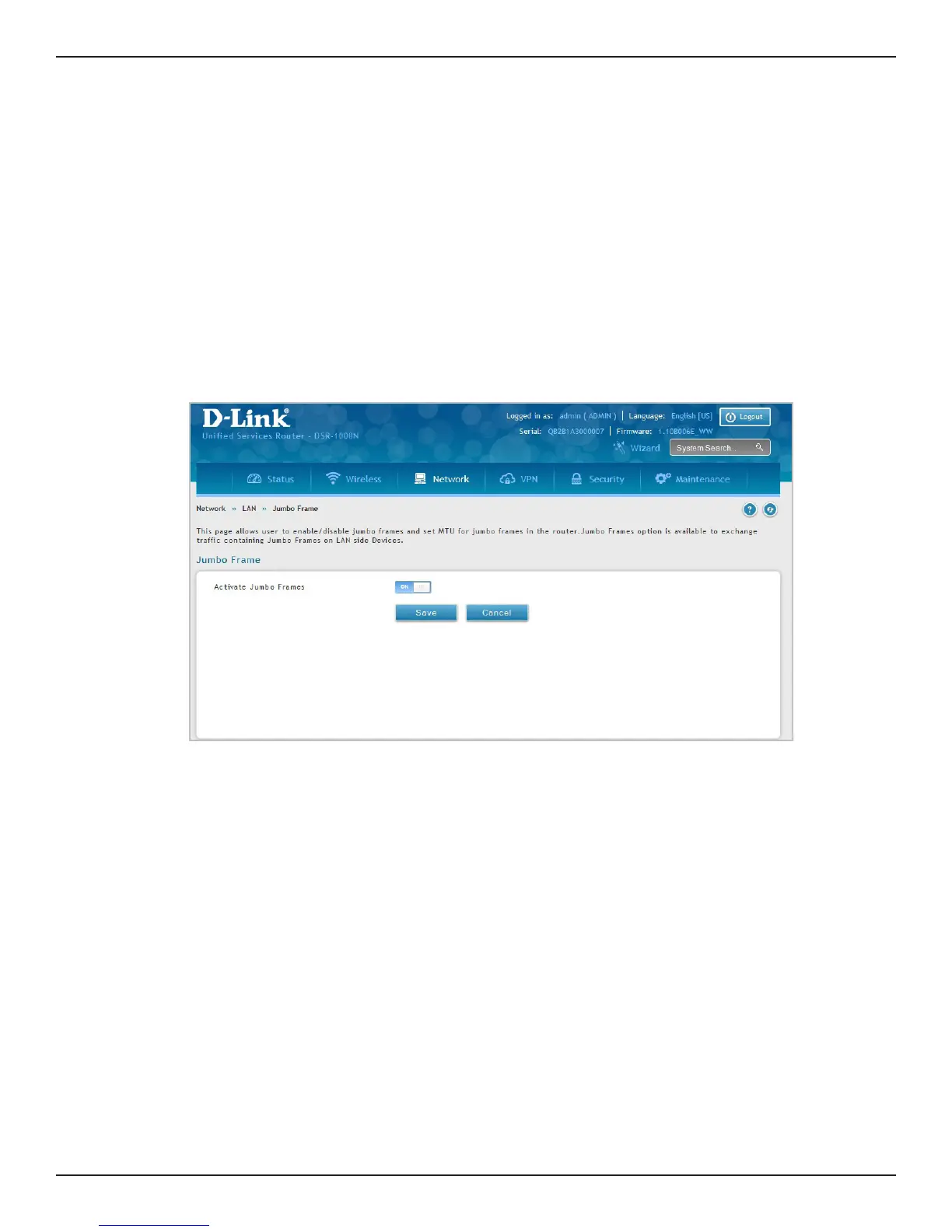

1. Click
Network
>
Internet
>
Jumbo Fr
ames
.
2. T
oggle
Activate Jumbo F
rames
to
On
.
3. Click
S
ave
.
81
83
