xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
128
IGMP Multicast VLAN
State
Click the radio buttons to enable or disable the IGMP Multicast VLAN state.
IGMP Multicast VLAN
Forward Unmatched
Click the radio buttons to enable or disable the IGMP Multicast VLAN Forwarding
state.
VLAN Name
Enter the VLAN Name used.
VID
Enter the VID used.
Remap Priority 0-7 – The remap priority value (0 to 7) to be associated with the data traffic to be
forwarded on the multicast VLAN.
None – If None is specified, the packet’s original priority is used. The default setting is
None.
Replace Priority
Specify that the packet’s priority will be changed by the Switch, based on the remap
priority. This flag will only take effect when the remap priority is set.
Click the Apply button to accept the changes made for each individual section.
Click the Add button to add a new entry based on the information entered.
Click the Edit button to configure the IGMP Snooping Multicast VLAN Settings for the specific entry.
Click the Delete button to remove the specific entry.
Click the Profile List link to configure the IGMP Snooping Multicast VLAN Settings for the specific entry.
After clicking the Edit button, the following page will appear:

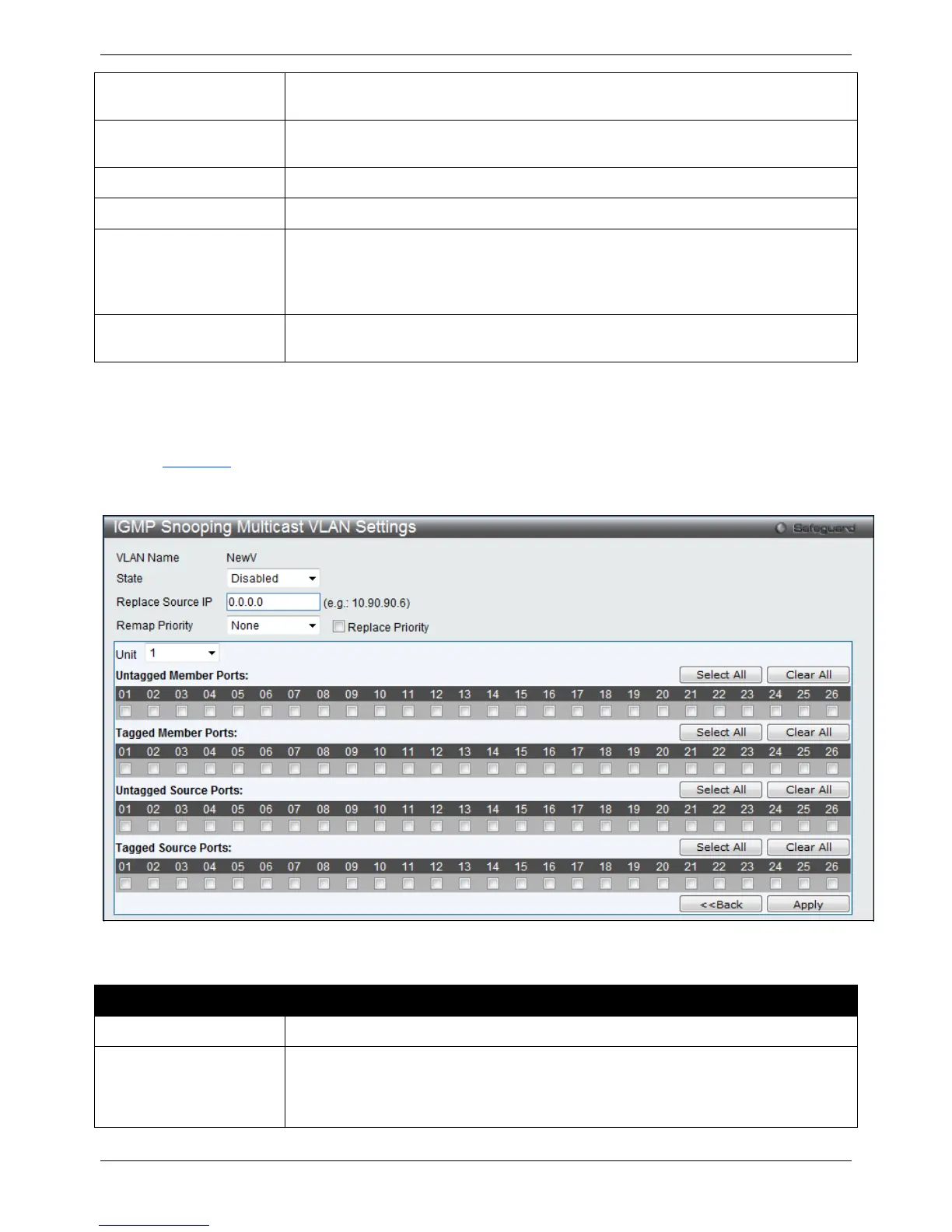

Figure 4-68 IGMP Snooping Multicast VLAN Settings – Edit window
The fields that can be configured are described below:
Parameter Description
State
Use the drop-down menu to enable or disable the state.
Replace Source IP
With the IGMP snooping function, the IGMP report packet sent by the host will be
forwarded to the source port. Before forwarding of the packet, the source IP address
in the join packet needs to be replaced by this IP address. If none is specified, the
source IP address will not be replaced.
