Server IP Address
Enter the DHCP Relay Option 60 Server IP address.
Match Type
Enter the DHCP Relay Option 60 Match Type value.
Exact Match – The option 60 string in the packet must full match with the specified string.
Partial Match – The option 60 string in the packet only need partial match with the
specified string.
IP Address
Enter the DHCP Relay Option 60 IP address.
String
Enter the DHCP Relay Option 60 String value.
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete button to remove the specific entry based on the information entered.
Click the Show All button to display all the existing entries.
Click the Delete All button to remove all the entries listed.
Click the Delete button to remove the specific entry.
DHCP Relay Option 61 Settings
On this page the user can configure, add and delete DHCP relay option 61 parameters.
To view this window, click Network Application > DHCP > DHCP Relay > DHCP Relay Option 61 Settings, as
shown below:

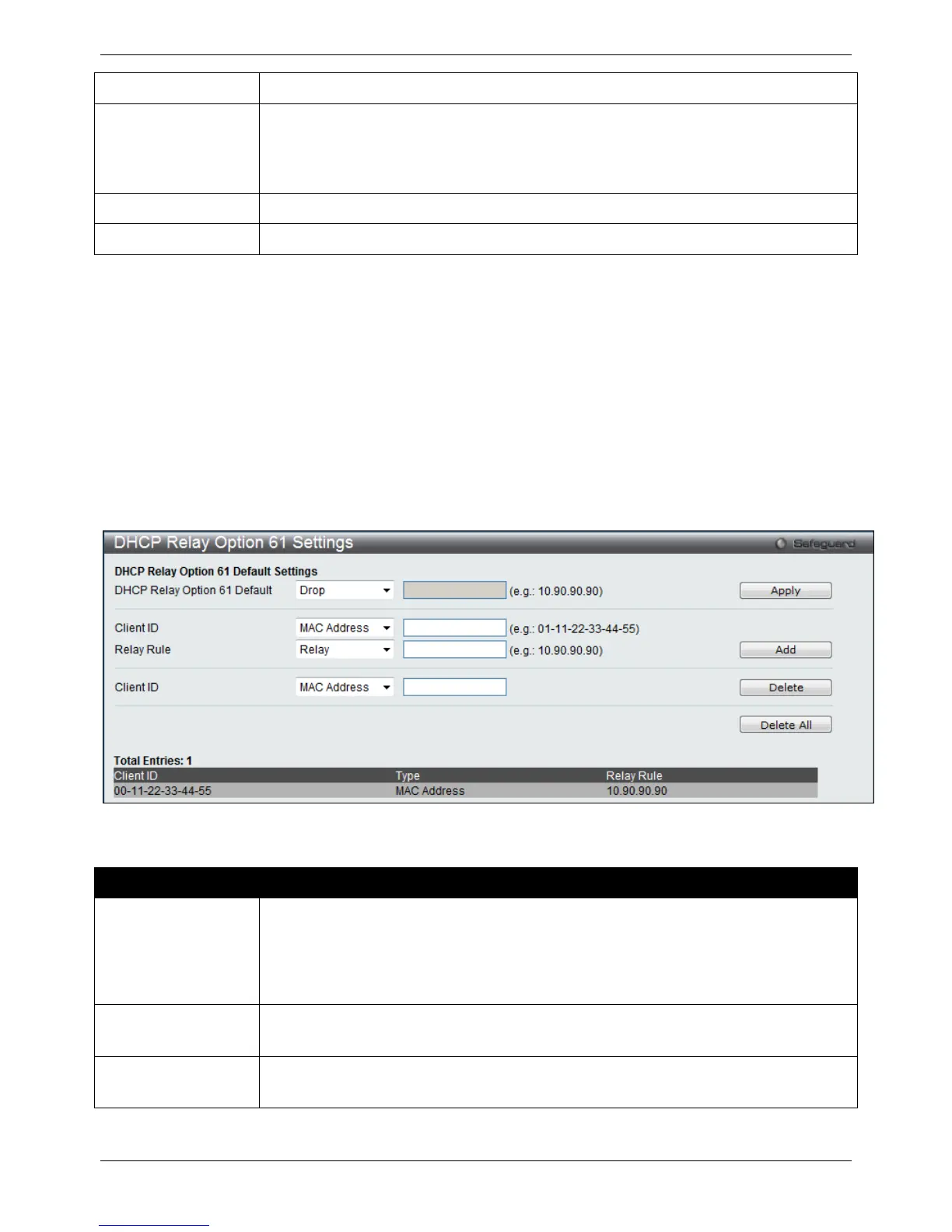

Figure 9-8 DHCP Relay Option 61 Settings window
The fields that can be configured are described below:
Parameter Description
DHCP Relay Option
61 Default
Select the DHCP Relay Option 61 default action.
Drop – Specify to drop the packet.
Relay – Specify to relay the packet to an IP address. Enter the IP Address of the default
relay server. When there is no matching server found for the packet based on option 61,
the relay servers will be determined by this default relay server setting.
Client ID MAC Address – The client’s client ID, which is the hardware address of client.
String – The client’s client ID, which is specified by the administrator.
Relay Rule Relay – Specify to relay the packet to an IP address.
Drop – Specify to drop the packet.
Click the Apply button to accept the changes made.
Click the Add button to add a new entry based on the information entered.
