From Port / To Port
Use the drop-down menus to specify the list of ports to be configured.
Analyzer Server ID (1-
4)
The analyzer server ID specifies the ID of a server analyzer where the packet will be
forwarded.
Interval (20-120)
The maximum number of seconds between successive samples of the counters. Tick
the Disabled check box to disable the function.
Click the Apply button to accept the changes made.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Ping Test
Ping is a small program that sends ICMP Echo packets to the IP address you specify. The destination node then
responds to or “echoes” the packets sent from the Switch. This is very useful to verify connectivity between the
Switch and other nodes on the network.
To view this window, click Monitoring > Ping Test, as shown below:

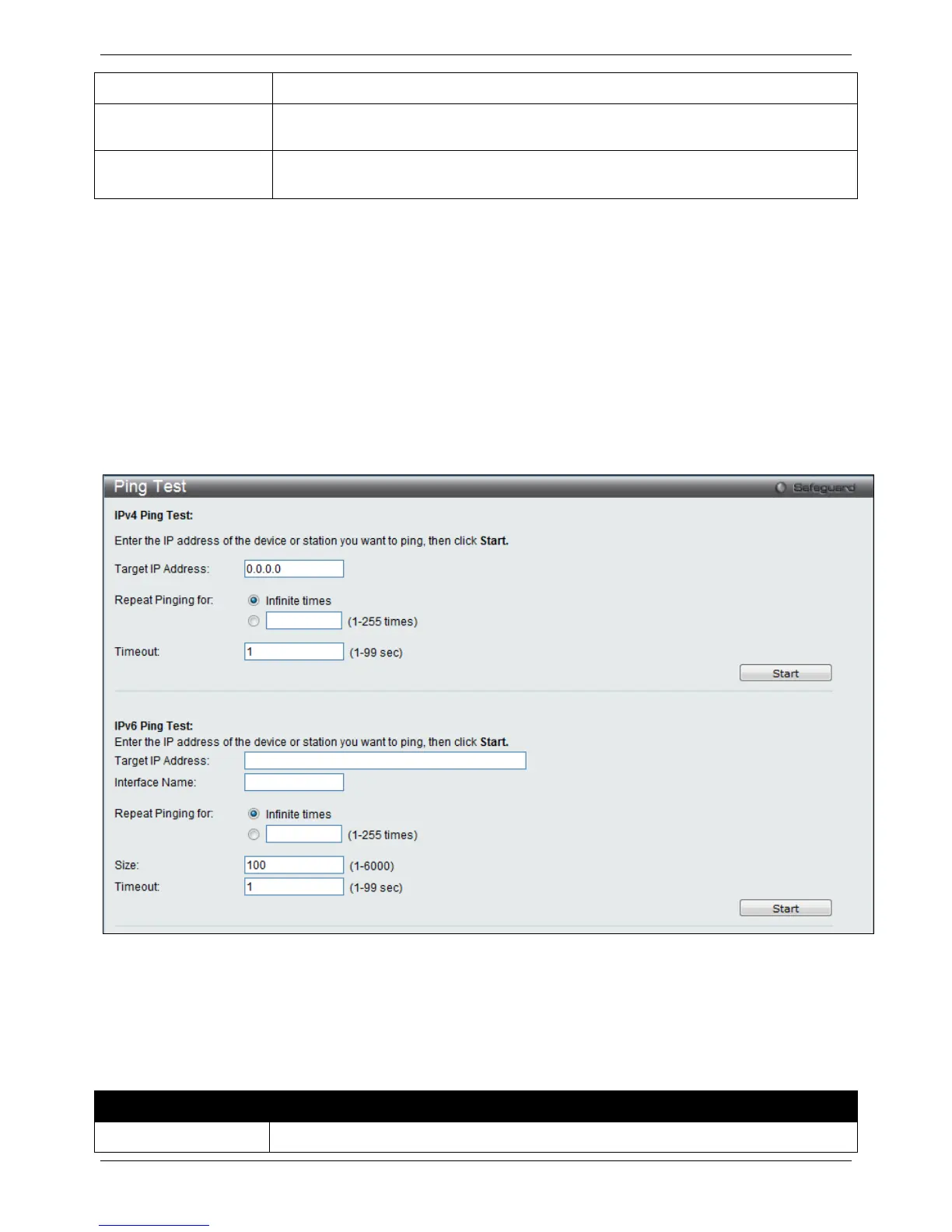

Figure 11-23 Ping Test window
The user may click the Infinite times radio button, in the Repeat Pinging for field, which will tell the ping program to
keep sending ICMP Echo packets to the specified IP address until the program is stopped. The user may opt to
choose a specific number of times to ping the Target IP Address by clicking its radio button and entering a number
between 1 and 255.
The fields that can be configured are described below:
Parameter Description
Target IP Address
Enter an IP address to be pinged.
