Rate (64-1024000)
This field allows the input of the data rate that will be the limit for the selected port. The
user may choose a rate between 64 and 1024000 Kbits per second.
Effective RX
If a RADIUS server has assigned the RX bandwidth, then it will be the effective RX
bandwidth. The authentication with the RADIUS sever can be per port or per user. For per
user authentication, there may be multiple RX bandwidths assigned if there are multiple
users attached to this specific port. The final RX bandwidth will be the largest one among
these multiple RX bandwidths.
Effective TX
If a RADIUS server has assigned the TX bandwidth, then it will be the effective TX
bandwidth. The authentication with the RADIUS sever can be per port or per user. For per
user authentication, there may be multiple TX bandwidths assigned if there are multiple
users attached to this specific port. The final TX bandwidth will be the largest one among
these multiple TX bandwidths.
Click the Apply button to accept the changes made.
Queue Bandwidth Control Settings
To view this window, click QoS > Bandwidth Control > Queue Bandwidth Control Settings, as shown below.

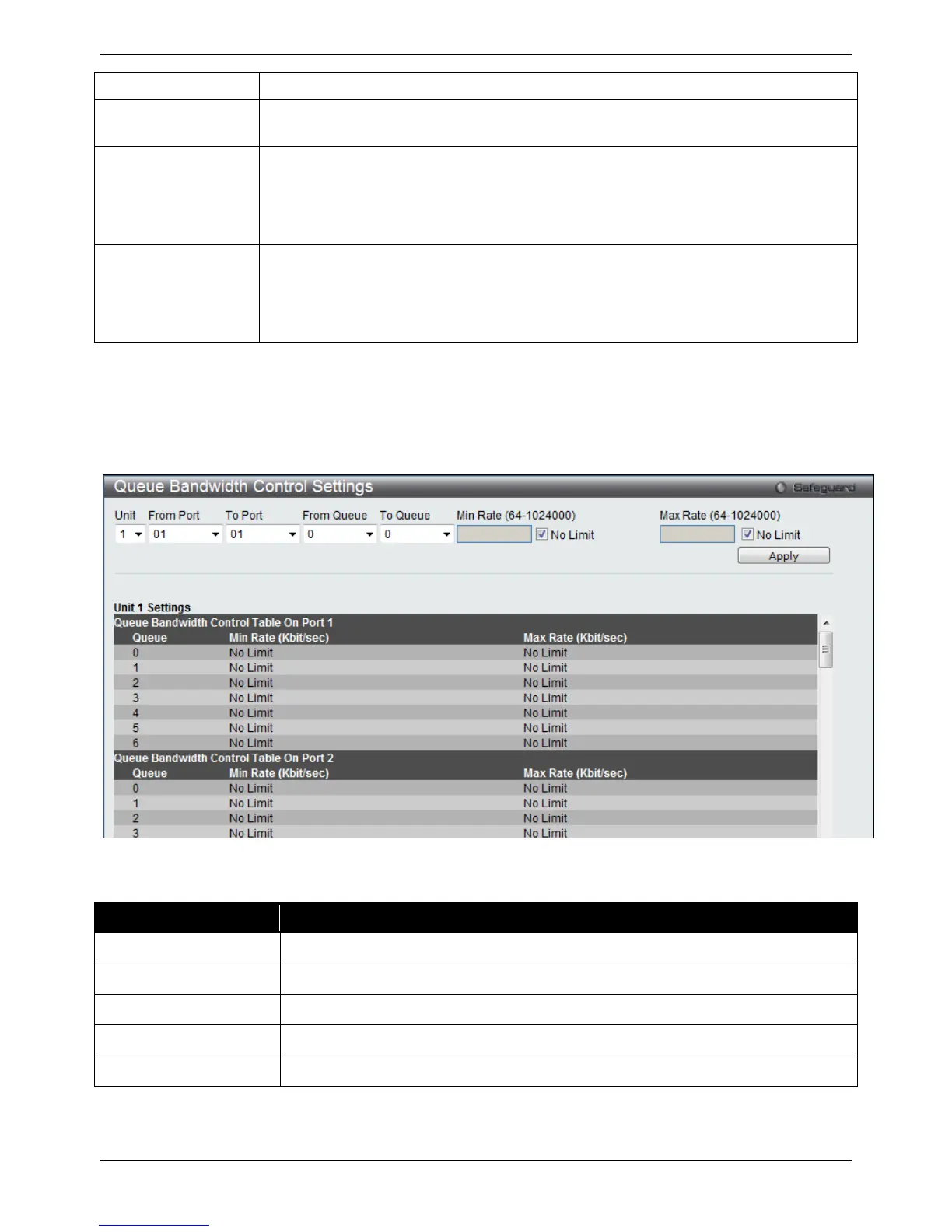

Figure 6-5 Queue Bandwidth Control Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit to configure.
From Port / To Port
Use the drop-down menu to select the port range to use for this configuration.
From Queue / To Queue
Use the drop-down menu to select the queue range to use for this configuration.
Min Rate (64-1024000)
Enter the minimum rate for the queue. For no limit, tick the No Limit check box.
Max Rate (64-1024000)
Enter the maximum rate for the queue. For no limit, tick the No Limit check box.
Click the Apply button to accept the changes made.
