802.1p Settings
802.1p Default Priority Settings
The Switch allows the assignment of a default 802.1p priority to each port on the Switch. This page allows the user
to assign a default 802.1p priority to any given port on the Switch that will insert the 802.1p priority tag to untagged
packets received. The priority and effective priority tags are numbered from 0, the lowest priority, to 7, the highest
priority. The effective priority indicates the actual priority assigned by RADIUS. If the RADIUS assigned value
exceeds the specified limit, the value will be set at the default priority. For example, if the RADIUS assigns a limit of
8 and the default priority is 0, the effective priority will be 0.
To view the following window, click QoS > 802.1p Settings > 802.1p Default Priority Settings, as shown below:

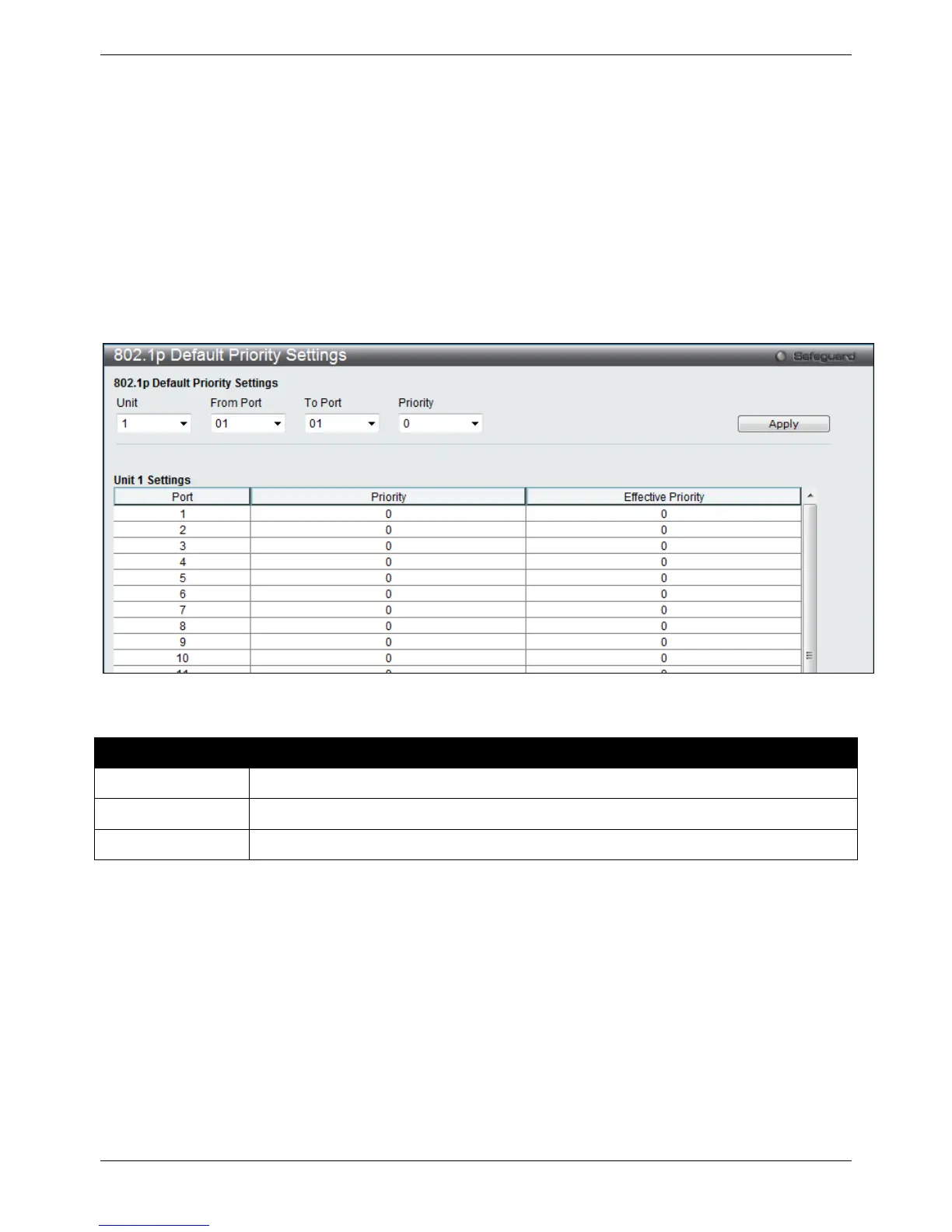

Figure 6-2 802.1p Default Priority Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit to configure.
From Port / To Port
Select the starting and ending ports to use.
Priority Use the drop-down menu to select a value from 0 to 7.
Click the Apply button to accept the changes made.
802.1p User Priority Settings
The Switch allows the assignment of a class of service to each of the 802.1p priorities.
To view the following window, click QoS > 802.1p Settings > 802.1p User Priority Settings, as shown below:
