xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
88

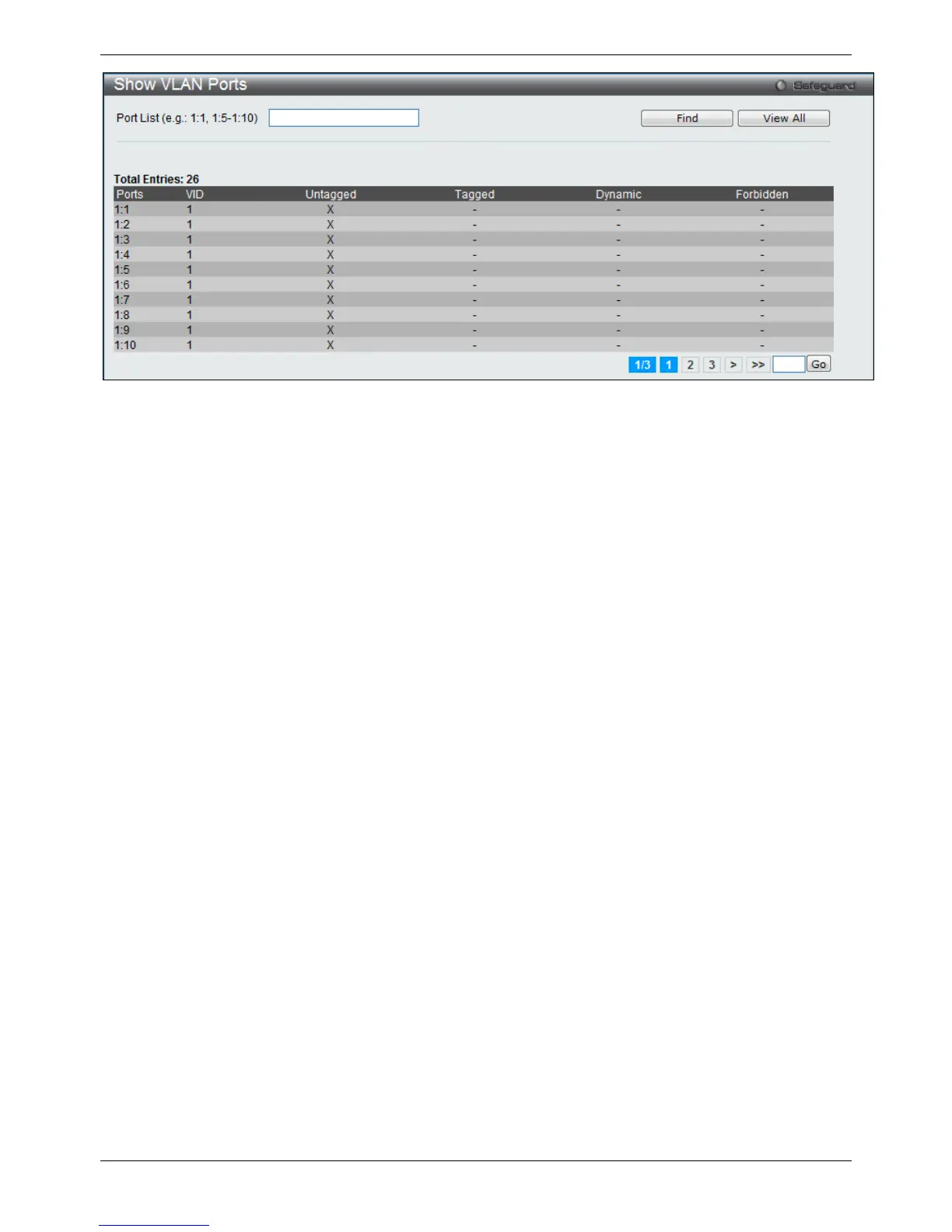

Figure 4-25 Show VLAN Ports window
Click the View All button to display all the existing entries.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Q-in-Q
Q-in-Q Settings
This function allows the user to enable or disable the Q-in-Q function. Q-in-Q is designed for service providers to
carry traffic from multiple users across a network.
Q-in-Q is used to maintain customer specific VLAN and Layer 2 protocol configurations even when the same VLAN
ID is being used by different customers. This is achieved by inserting SPVLAN tags into the customer’s frames
when they enter the service provider’s network, and then removing the tags when the frames leave the network.
Customers of a service provider may have different or specific requirements regarding their internal VLAN IDs and
the number of VLANs that can be supported. Therefore customers in the same service provider network may have
VLAN ranges that overlap, which might cause traffic to become mixed up. So assigning a unique range of VLAN
IDs to each customer might cause restrictions on some of their configurations requiring intense processing of VLAN
mapping tables which may exceed the VLAN mapping limit. Q-in-Q uses a single service provider VLAN (SPVLAN)
for customers who have multiple VLANs. Customer’s VLAN IDs are segregated within the service provider’s
network even when they use the same customer specific VLAN ID. Q-in-Q expands the VLAN space available
while preserving the customer’s original tagged packets and adding SPVLAN tags to each new frame.
To view the following window, click L2 Features > QinQ > QinQ Settings, as shown below:
