Voice VLAN OUI Settings
This page is used to configure the user-defined voice traffic’s OUI. The OUI is used to identify the voice traffic.
There are a number of pre-defined OUIs. The user can further define the user-defined OUIs if needed. The user-
defined OUI cannot be the same as the pre-defined OUI.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN OUI Settings, as shown
below:

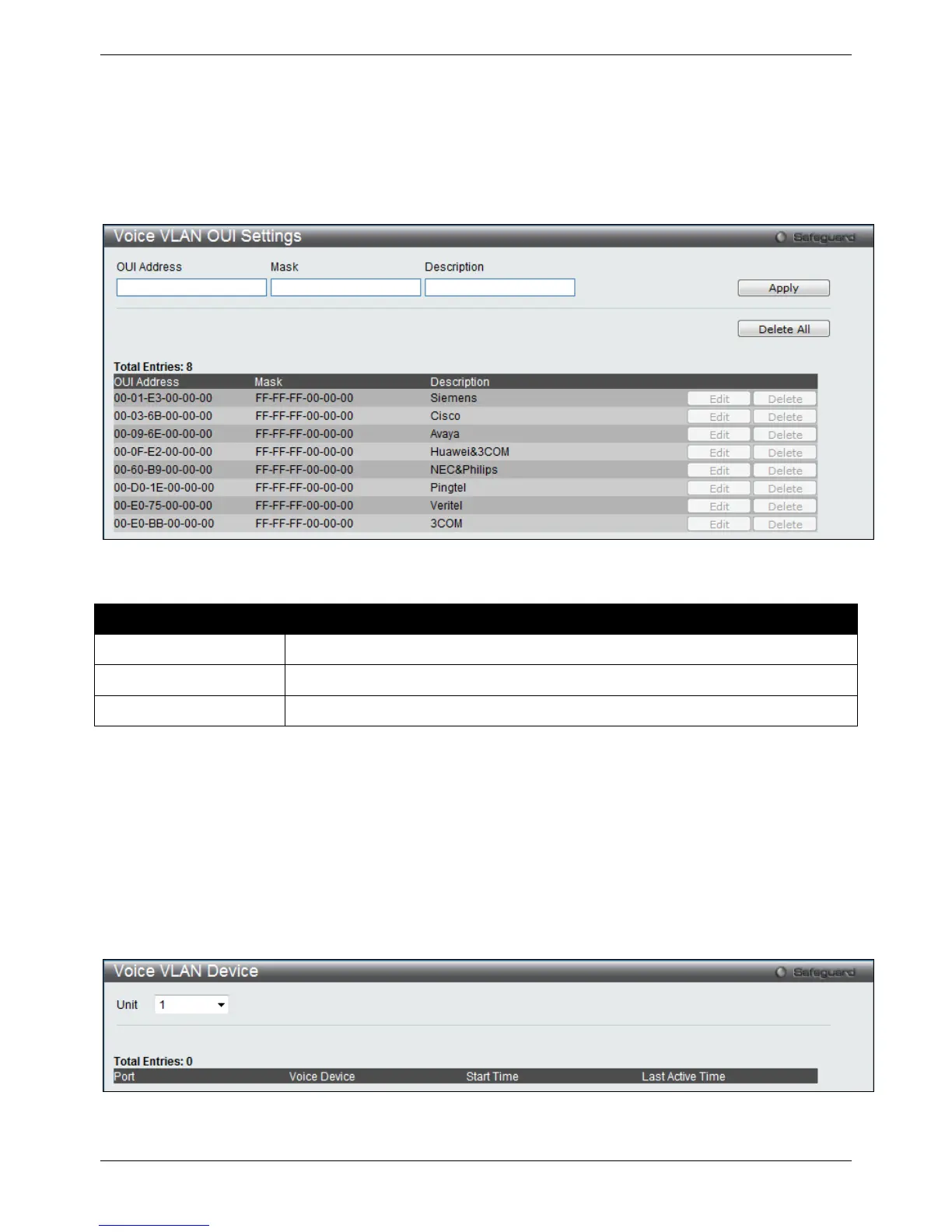

Figure 4-20 Voice VLAN OUI Settings window
The fields that can be configured are described below:
Parameter Description
OUI Address
User-defined OUI MAC address.
Mask
User-defined OUI MAC address mask.
Description
The description for the user-defined OUI.
Click the Apply button to accept the changes made.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Voice VLAN Device
This page is used to show voice devices that are connected to the ports. The start time is the time when the device
is detected on this port, the activate time is the latest time saw the device sending the traffic.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN Device, as shown below:
Figure 4-21 Voice VLAN Device window
