xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
166
DSCP
DSCP Trust Settings
This page is to configure the DSCP trust state of ports. When ports are under the DSCP trust mode, the Switch will
insert the priority tag to untagged packets by using the DSCP Map settings instead of the default port priority.
To view the following window, click QoS > DSCP > DSCP Trust Settings, as shown below:

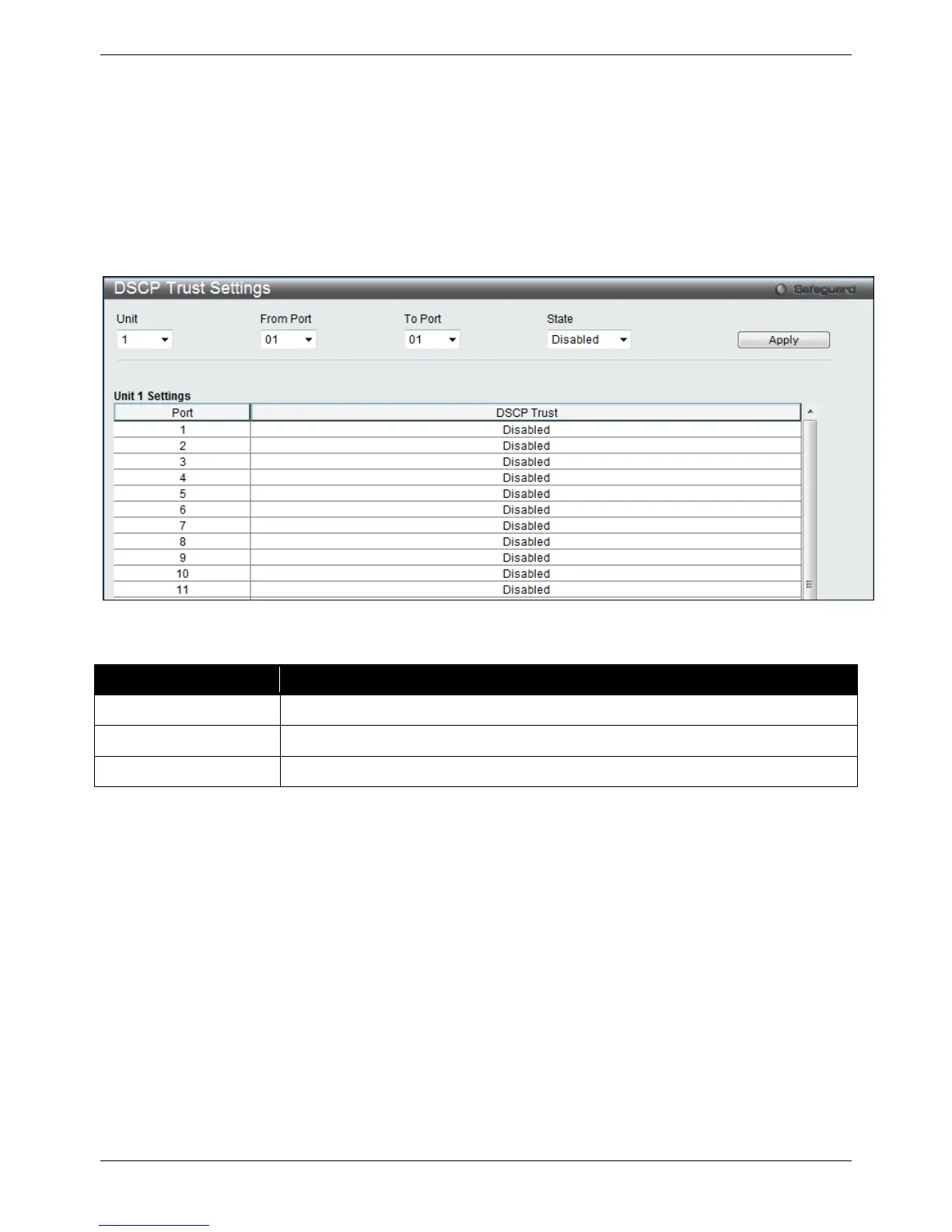

Figure 6-7 DSCP Trust Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit to configure.
From Port / To Port
Use the drop-down menu to select a range of port to configure.
State
Enable/disable to trust DSCP. By default, DSCP trust is disabled.
Click the Apply button to accept the changes made.
DSCP Map Settings
The mapping of DSCP to queue will be used to determine the priority of the packet (which will be then used to
determine the scheduling queue) when the port is in DSCP trust state.
The DSCP-to-DSCP mapping is used in the swap of DSCP of the packet when the packet is ingresses to the port.
The remaining processing of the packet will base on the new DSCP. By default, the DSCP is mapped to the same
DSCP.
To view the following window, click QoS > DSCP > DSCP Map Settings, as shown below:
