xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
75
Protocol Value (0-
FFFF)
Enter a value for the Group. The protocol value is used to identify a protocol of the frame
type specified. The form of the input is 0x0 to 0xffff. Depending on the frame type, the octet
string will have one of the following values: For Ethernet II, this is a 16-bit (2-octet) hex value.
For example, IPv4 is 0800, IPv6 is 86dd, ARP is 0806, etc. For IEEE802.3 SNAP, this is a
16-bit (2-octet) hex value. For IEEE802.3 LLC, this is a 2-octet IEEE 802.2 Link Service
Access Point (LSAP) pair. The first octet is for Destination Service Access Point (DSAP) and
the second octet is for Source.
Click the Add button to add a new entry based on the information entered.
Click the Delete All button to remove all the entries based on the information entered.
Click the Edit button to re-configure the specific entry.
Click the Delete Settings button to remove the Protocol for the Protocol VLAN Group information for the specific
entry.
Click the Delete Group button to remove the entry completely.
NOTE: The Group name value should be less than 33 characters.
802.1v Protocol VLAN Settings
The user can configure Protocol VLAN settings. The lower half of the table displays any previously created settings.
To view the following window, click L2 Features > VLAN > 802.1v protocol VLAN > 802.1v Protocol VLAN
Settings, as shown below:

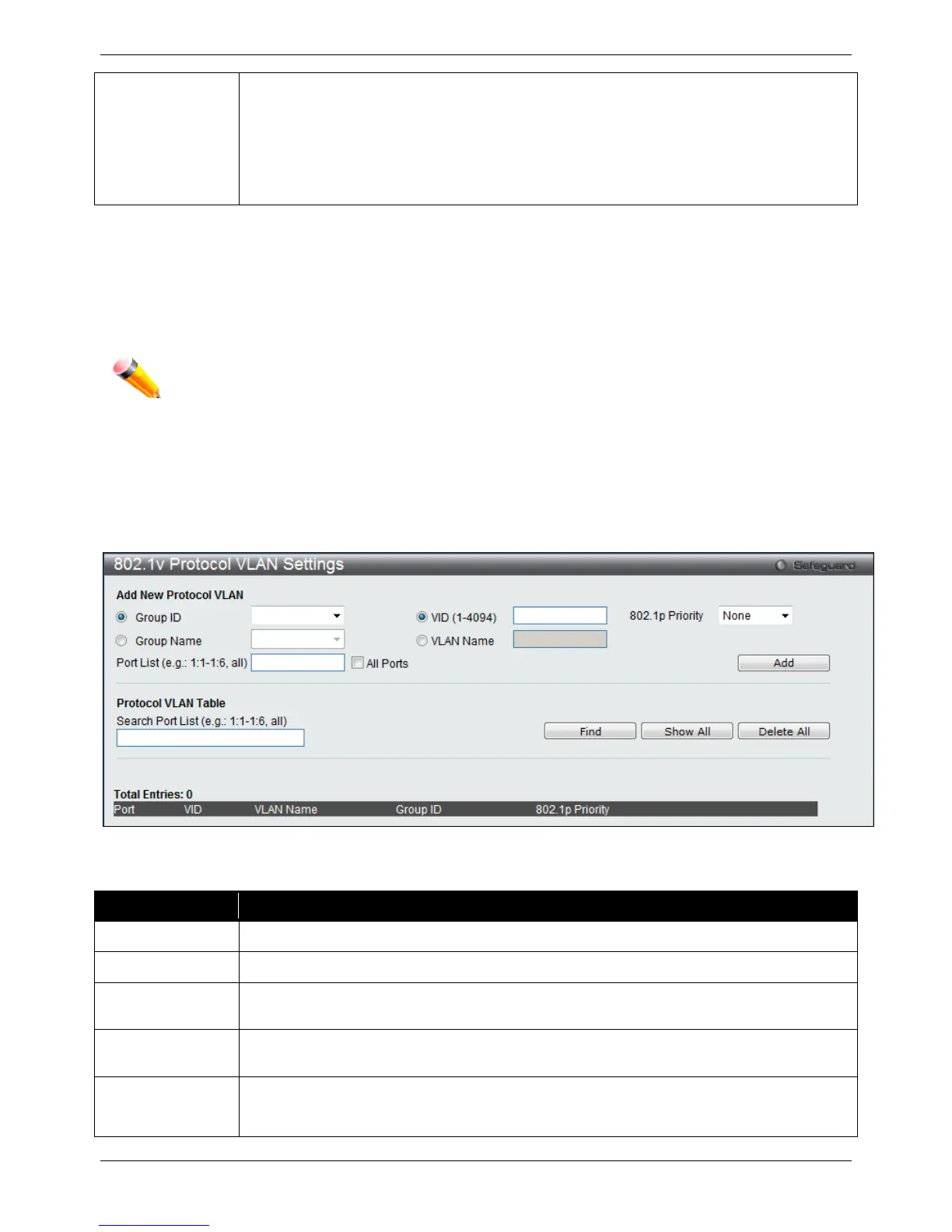

Figure 4-9 802.1v Protocol VLAN Settings window
The fields that can be configured are described below:
Parameter Description
Group ID
Select a previously configured Group ID from the drop-down menu.
Group Name
Select a previously configured Group Name from the drop-down menu.
VID (1-4094)
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN the user wishes to
create.
VLAN Name
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN the user wishes to
create.
802.1p Priority
This parameter is specified if you want to re-write the 802.1p default priority previously set in
the Switch, which is used to determine the CoS queue to which packets are forwarded to.
Once this field is specified, packets accepted by the Switch that match this priority are
