To view the following window, click L2 Features > L2 Multicast Control > Multicast VLAN > MLD Snooping
Multicast Group VLAN Settings, as shown below:

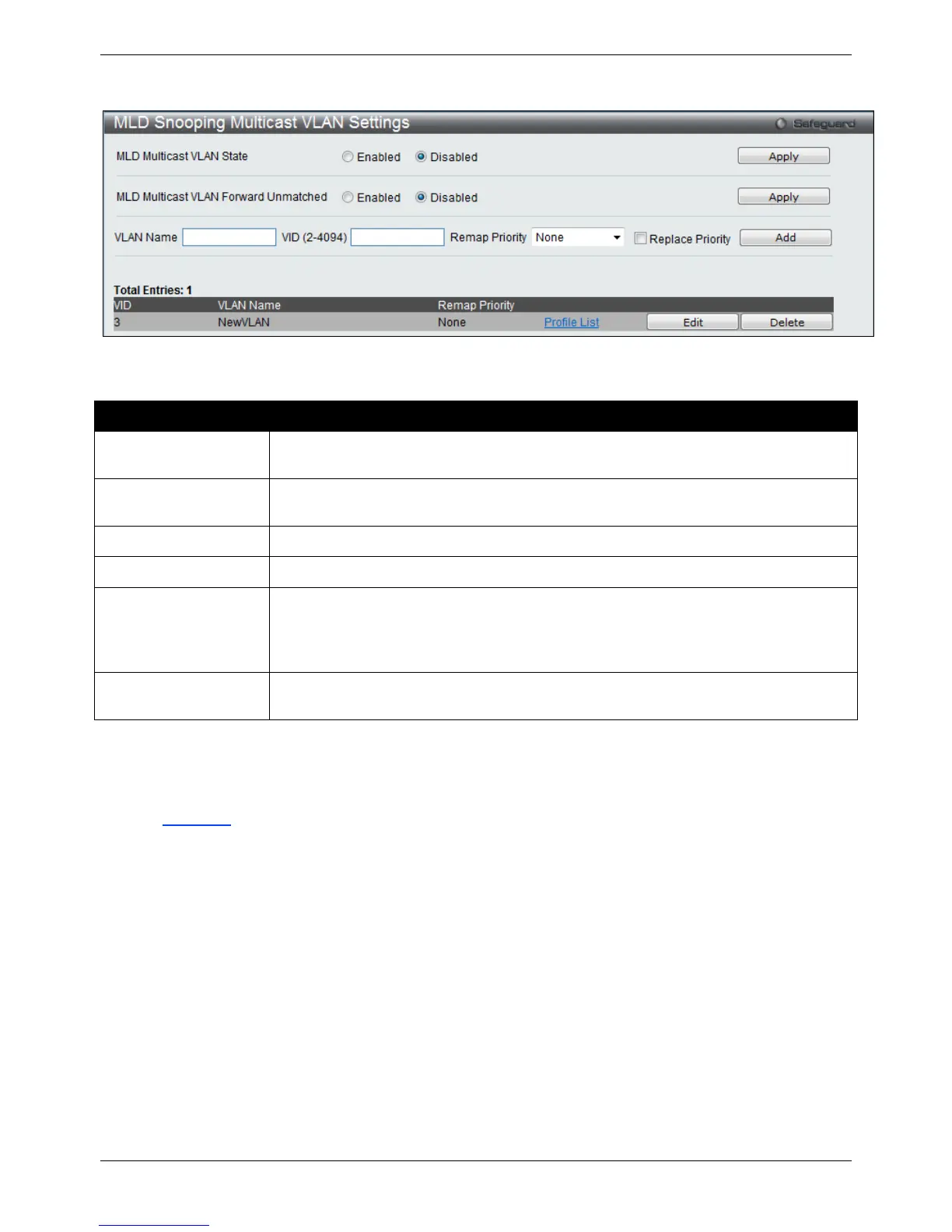

Figure 4-72 MLD Snooping Multicast VLAN Settings window
The fields that can be configured are described below:
Parameter Description
MLD Multicast VLAN
State
Click the radio buttons to enable or disable the MLD multicast VLAN state.
MLD Multicast VLAN
Forward Unmatched
Click the radio buttons to enable or disable the MLD multicast VLAN Forward
Unmatched state.
VLAN Name
Enter the VLAN name used.
VID
Enter the VID value used.
Remap Priority
The user can select this option to enable the Remap Priority feature.
Specify the remap priority (0 to 7) to be associated with the data traffic to be forwarded
on the multicast VLAN. If None is specified, the packet’s original priority will be used.
The default setting is None.
Replace Priority
Tick the check box to specify that the packet’s priority will be changed by the Switch,
based on the remap priority. This flag will only take effect when the remap priority is set.
Click the Apply button to accept the changes made for each individual section.
Click the Add button to add a new entry based on the information entered.
Click the Edit button to configure the MLD Snooping Multicast VLAN Settings for the specific entry.
Click the Delete button to remove the specific entry.
Click the Profile List link to configure the MLD Snooping Multicast VLAN Settings for the specific entry.
After clicking the Edit button, the following page will appear:
