xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
178

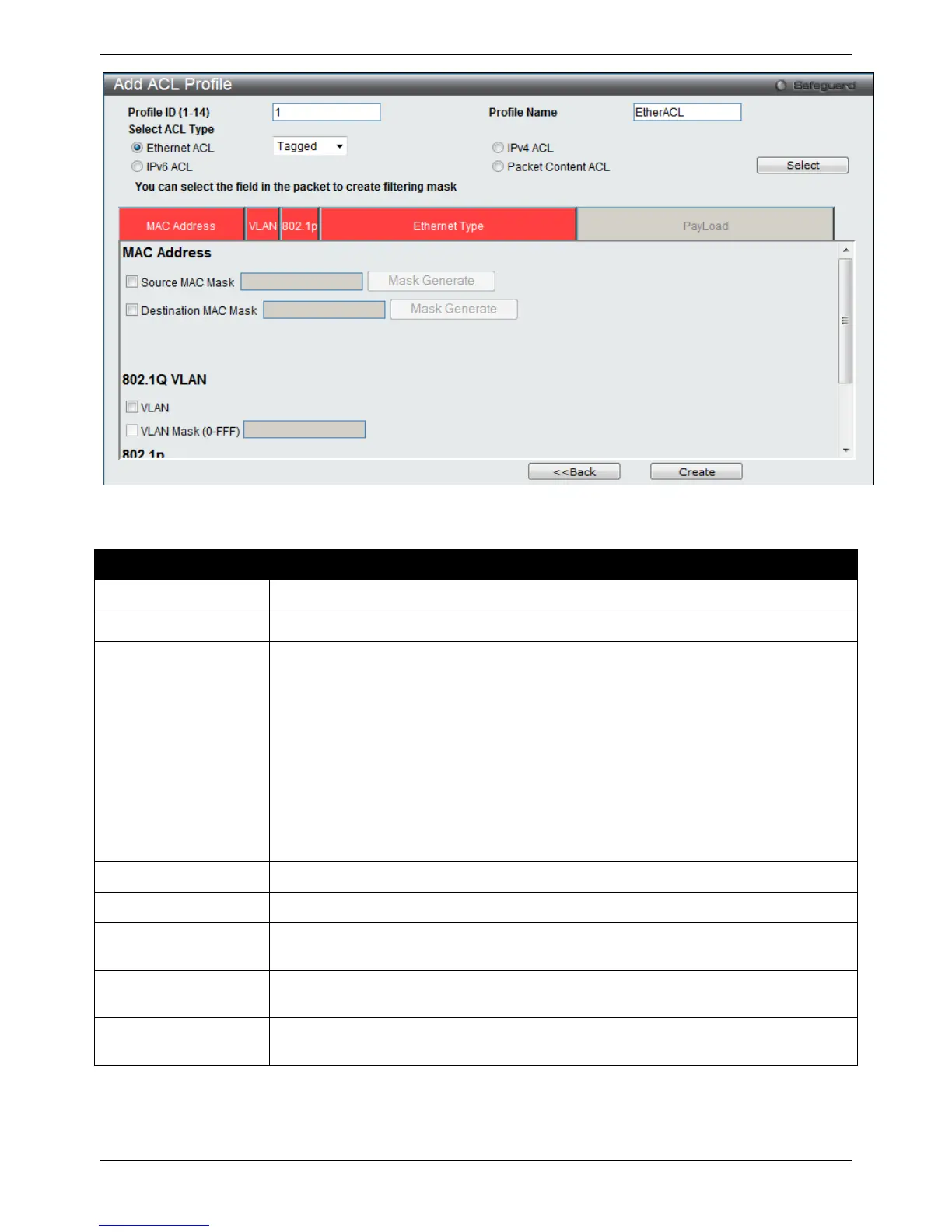

Figure 7-3 Add ACL Profile window (Ethernet ACL)
The fields that can be configured are described below:
Parameter Description
Profile ID Enter a unique identifier number for this profile set. This value can be set from 1 to 14.
Profile Name
Enter a profile name for the profile created.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet
content. This will change the window according to the requirements for the type of
profile.
• Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each
packet header.
• Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each
frame's header.
• Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each
frame's header.
• Select Packet Content ACL to instruct the Switch to examine the packet content
in each frame’s header.
Source MAC Mask
Enter a MAC address mask for the source MAC address.
Destination MAC Mask
Enter a MAC address mask for the destination MAC address.
802.1Q VLAN
Selecting this option instructs the Switch to examine the 802.1Q VLAN identifier of each
packet header and use this as the full or partial criterion for forwarding.
802.1p
Selecting this option instructs the Switch to examine the 802.1p priority value of each
packet header and use this as the, or part of the criterion for forwarding.
Ethernet Type
Selecting this option instructs the Switch to examine the Ethernet type value in each
frame's header.
Click the Select button to select an ACL type. Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button, the following window will appear:
