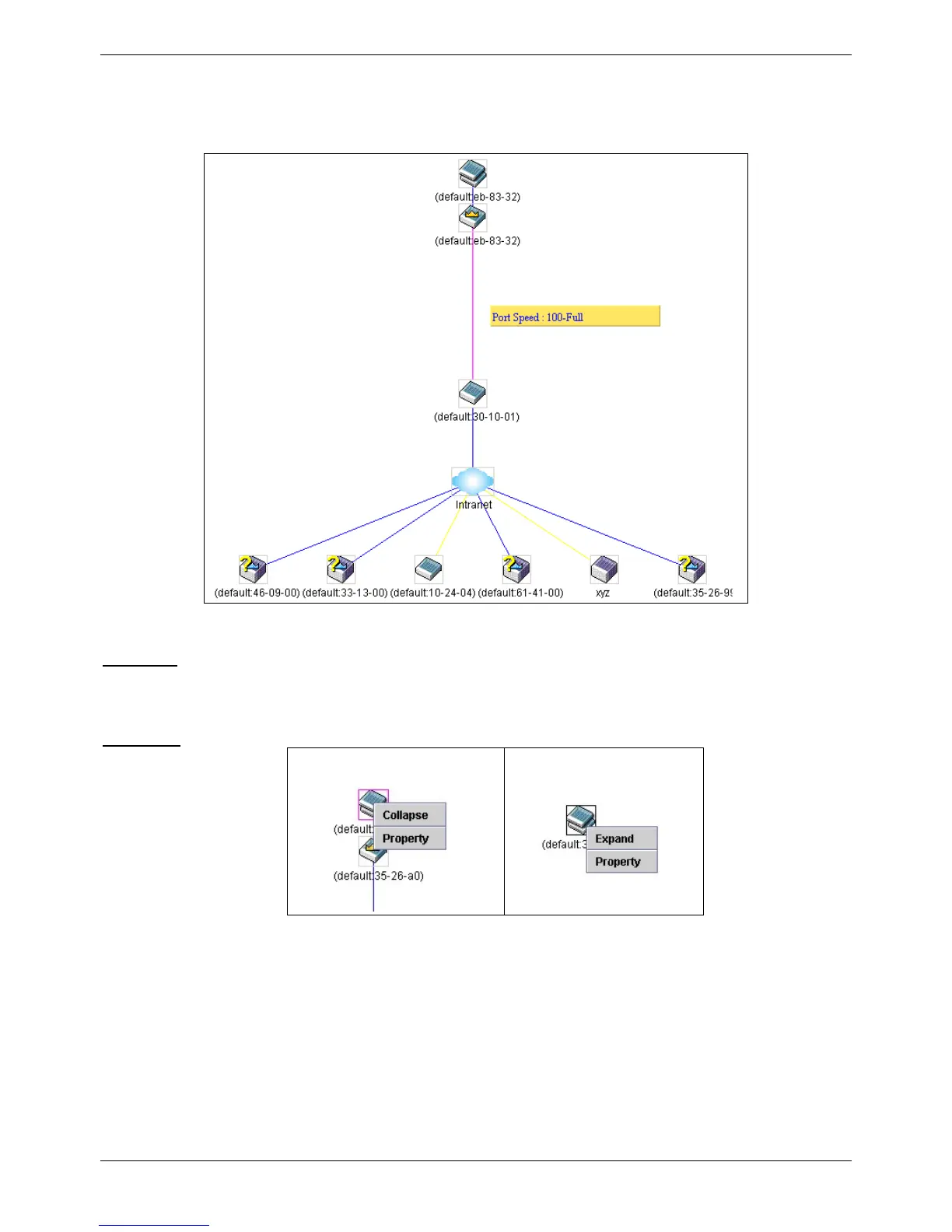

Setting the mouse cursor over a line between two devices will display the connection speed between the two
devices, as shown below.
Figure 3-19 Port Speed Utilizing the Tool Tip
Right-click
Right-clicking on a device will allow the user to perform various functions, depending on the role of the Switch in
the SIM group and the icon associated with it.
Group Icon
Figure 3-20 Right-clicking a Group Icon
The following options may appear for the user to configure:
• Collapse – To collapse the group that will be represented by a single icon.
• Expand – To expand the SIM group, in detail.
• Property – To pop up a window to display the group information.
