User's Manual
18

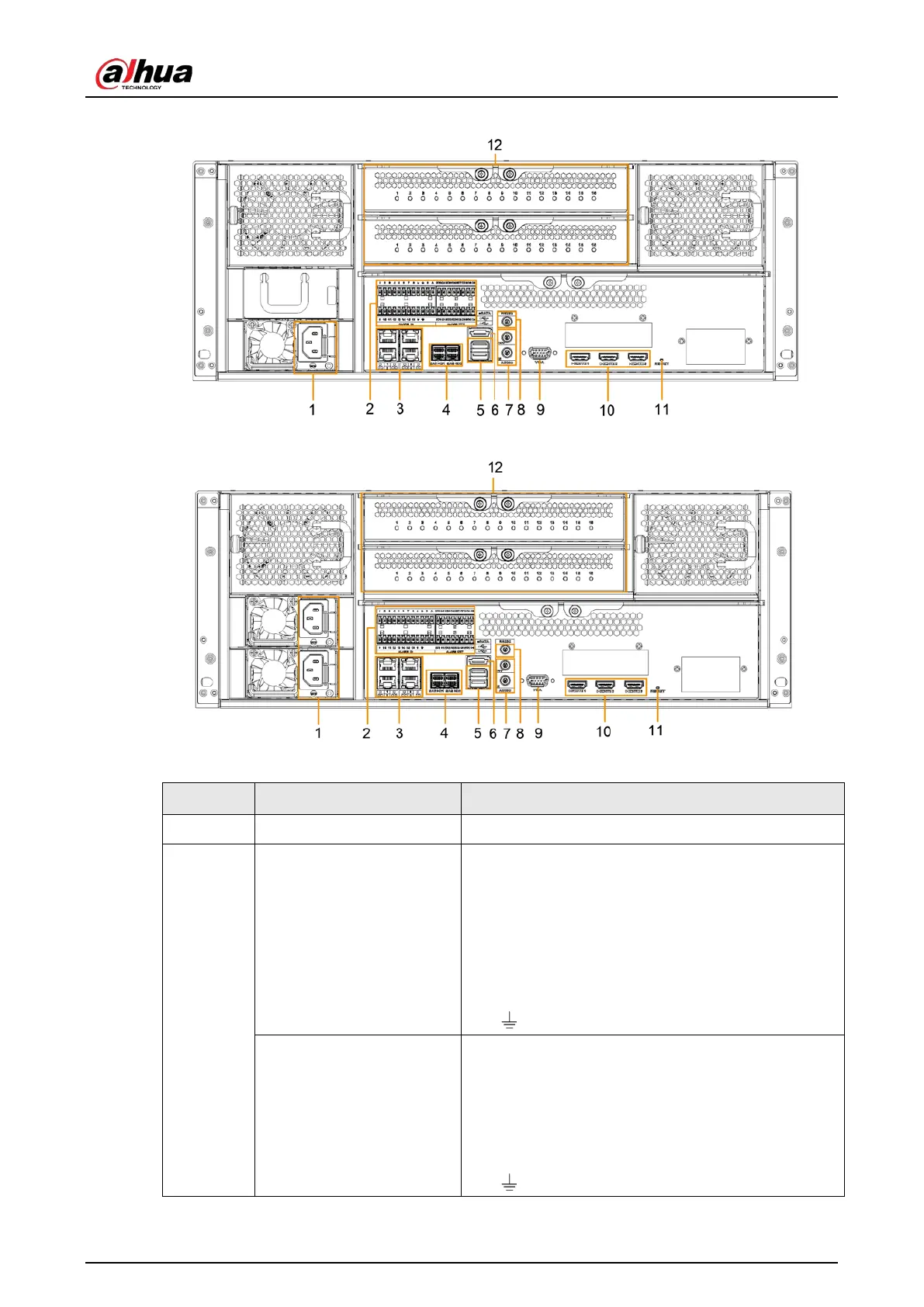

Figure 2-27 IVSS7024-M rear panel (single power)
Figure 2-28 IVSS7024-M rear panel (redundant power)
Table 2-9 Rear panel description (1)
No.
Button/Port
Description
1 Power input port Inputs 100240 VAC power.
2
Alarm Input
16 groups (116) alarm input ports. They are
corresponding to ALARM 1ALARM 16. The alarm
becomes valid in low level.
A and B: Control the A/B cable of the RS485
device. It is used to connect to the PTZ camera.
Please connect 120 Ω between A/B cables if
there are too many PTZ decoders.
: GND end.
Alarm Output
8 groups of alarm output ports (NO1 C1NO8 C8).
They output alarm signal to the alarm device. Please
make sure there is power to the external alarm
device.
NO: Alarm output port of Normally Open type.
C: Common alarm output port.
: GND end.
