Dahua HCVR82**A-S3 Series User Manual

154

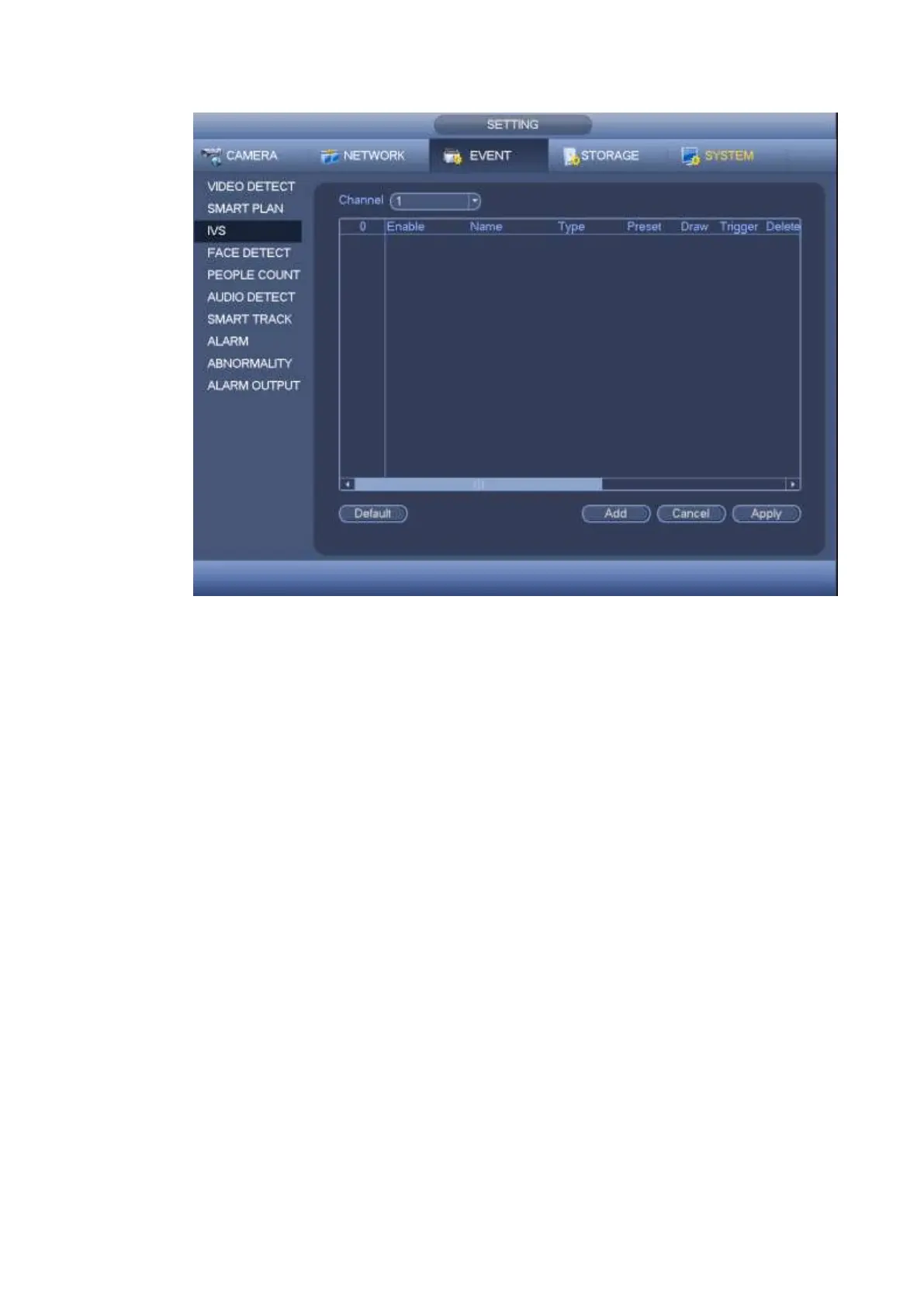

Figure 4-144
Select a channel from the dropdown list.
Click Add button to add a rule and then select a rule type from the dropdown list.
Set corresponding parameters.
Check the box to enable current rule.
Click Apply button to complete the setup.
4.15.3.1 Tripwire (Optional)
System generates an alarm once there is any object crossing the tripwire in the specified direction.
 The tripwire supports customized setup. It can be a straight line or a curve.
 Support one-direction or dual-direction detection.
 Support several tripwires at the same scene suitable for complicated environment.
 Support object size filter.
From main menu->Setting->Event->IVS, click Add button to add a rule and select the rule type as tripwire.
The interface is shown as below. See Figure 4-145.
