This function allows you to view the trigger video of the fish eye&PTZ camera. The fish eye is the
main camera to view the whole surveillance condition, the PTZ camera works as the slave camera to
view the details.
On the preview interface, select the corresponding window, right click mouse and then select Smart
track, you can see an interface shown as below. See Figure 4-50.
Note
Please refer to chapter 4.15.7 for setup information.

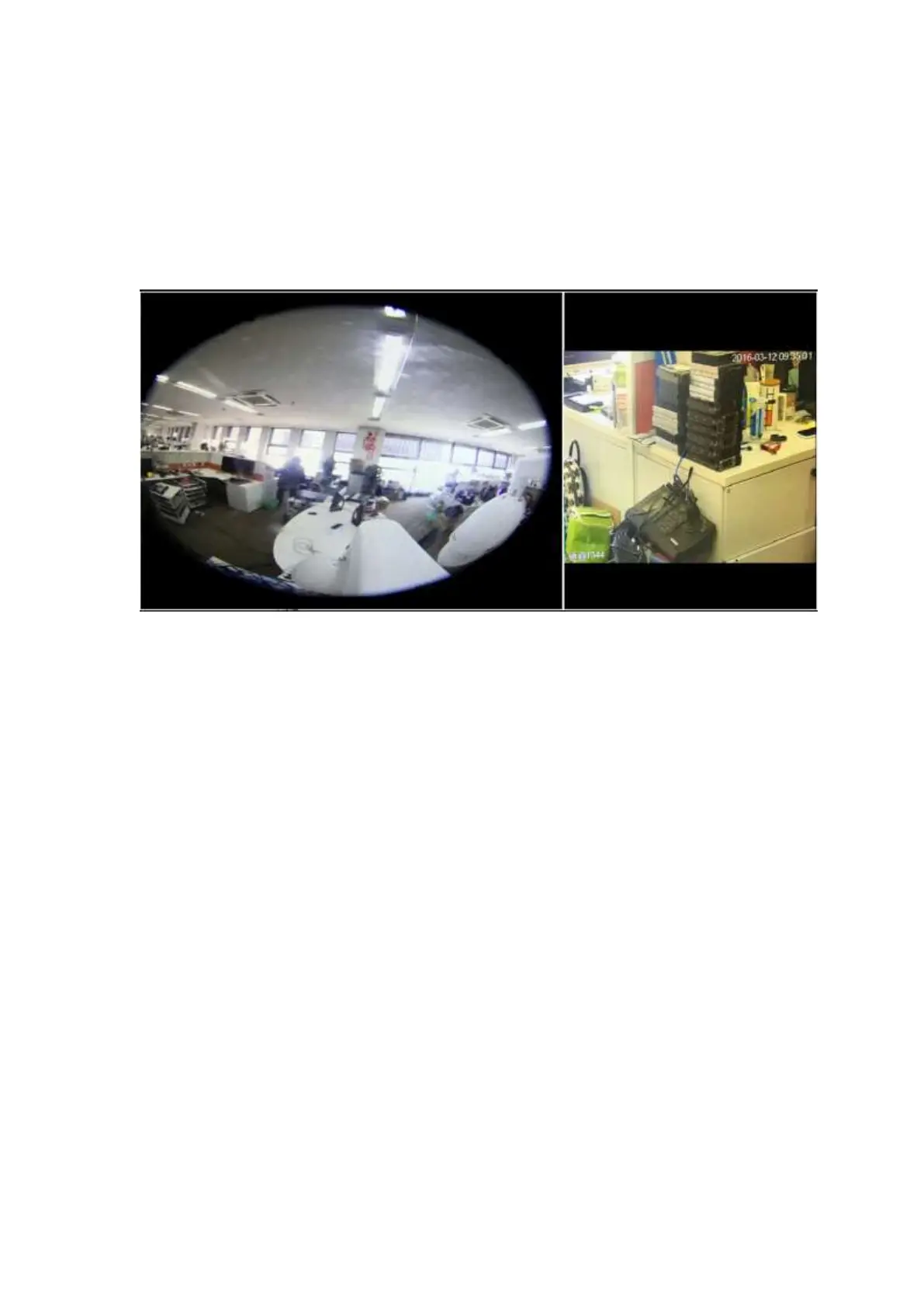

Figure 4-50
4.7 PTZ Control
Note:
Before you control the PTZ, please make sure the PTZ decoder and the DVR network
connection is OK and the corresponding settings are right.
4.7.1 PTZ Settings
Please follow the procedures below to go on cable connection
Connect the dome RS485 port to DVR RS485 port.
Connect dome video output cable to DVR video input port.
Connect power adapter to the dome.
In the main menu, from Setting->System->PTZ, the PTZ setup includes the following items. Please
select channel first. See Figure 4-51.
PTZ type: There are two options: local/remote. Please select remote if you are connecting to the
network PTZ.
Control mode: You can select control mode from the dropdown list. There are two options:
Serial/HDCVI. For HDCVI series product, please select HDCVI. The control signal is sent to the PTZ
via the coaxial cable. For the serial mode, the control signal is sent to the PTZ via the RS485 port.
Protocol: Please select DH-SD1 if the control mode is HDCVI.
Address: input corresponding PTZ address.
Baud rate: Select baud rate.
