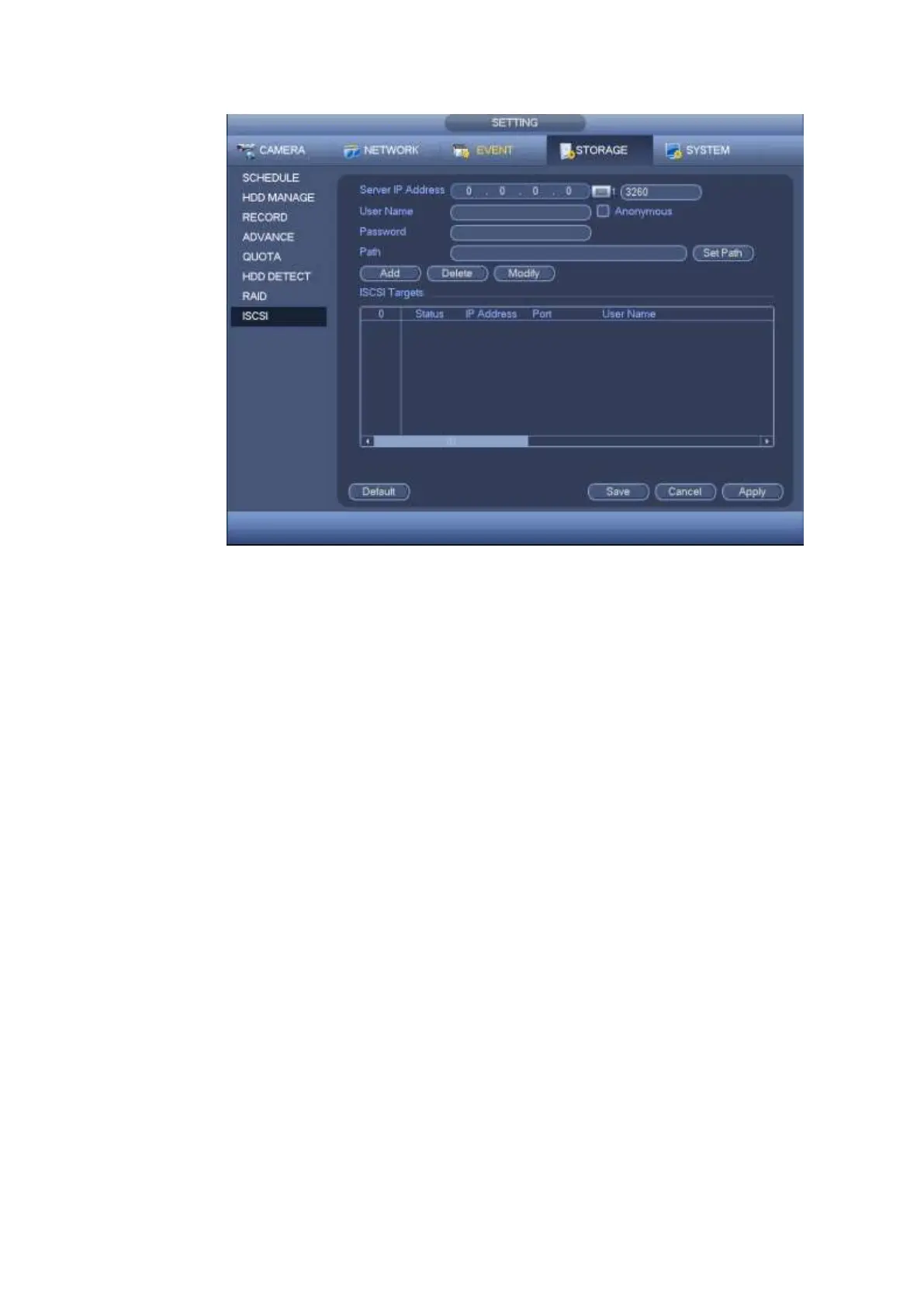

Figure 4-191
Click Ok button to complete the setup.
Tips
Click the modify/delete button to change or remove the ISCSI disk.
Now, from the main menu->setting->Storage-> HDD manage, you can see the corresponding interface.
4.17 Channel Manager
It is to set each channel image effect and video connection mode.
4.17.1 Image
Note
For different cameras, the interface may vary.
It is to set camera parameters and adjust video effect.
From main menu->Setting->Camera->Image, for analog channel, the camera interface is shown as
in Figure 4-192. For digital channel, the camera interface is shown as in Figure 4-193.
Channel: Select a channel from the dropdown list.
Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The default
value is 50. The larger the number, the strong the color is. This value has no effect on the general
brightness of the whole video. The video color may become too strong if the value is too high. For
the grey part of the video, the distortion may occur if the white balance is not accurate. Please
note the video may not be attractive if the value is too low. The recommended value ranges from 40
to 60.
