In Figure 4-55, input tour value and then click to call a tour. Click again to stop call.
Call Scan
In Figure 4-55, input Scan value and then click to call a tour. Click again to stop call.
Rotate
In Figure 4-55, click to enable the camera to rotate.
System supports preset, tour, pattern, scan, rotate, light and etc function.
Note:
Preset, tour and pattern all need the value to be the control parameters. You can define it as you
require.
You need to refer to your camera user’s manual for Aux definition. In some cases, it can be used for
special process.

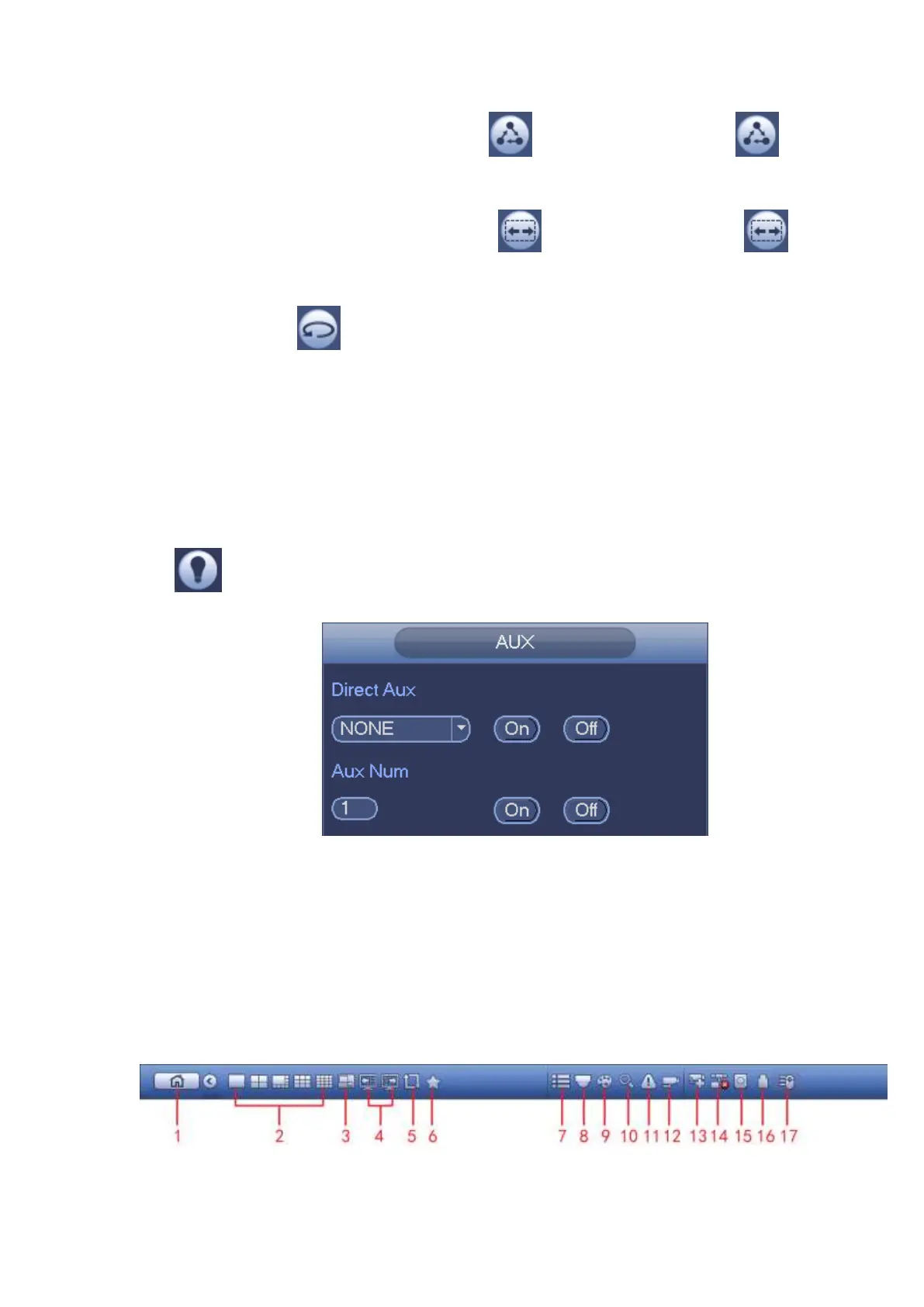

Aux
Click , system goes to the following interface. The options here are defined by the protocol. The
aux number is corresponding to the aux on-off button of the decoder. See Figure 4-64.
Figure 4-64
4.8 Navigation Bar
You need to go to the Main menu->Setting->System->General to enable navigation bar function;
otherwise you can not see the following interface.
On the preview window, left click mouse, you can see the navigation bar is shown as below. See
Figure 4-65.
Figure 4-65
