Dahua HCVR82**A-S3 Series User Manual

12
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this series DVR for
the first time, please refer to this part first.
2.1 Front Panel
2.1.1 HCVR82XXA-S3/ HCVR84XXL-S3/HCVR88XXS-S3 Series

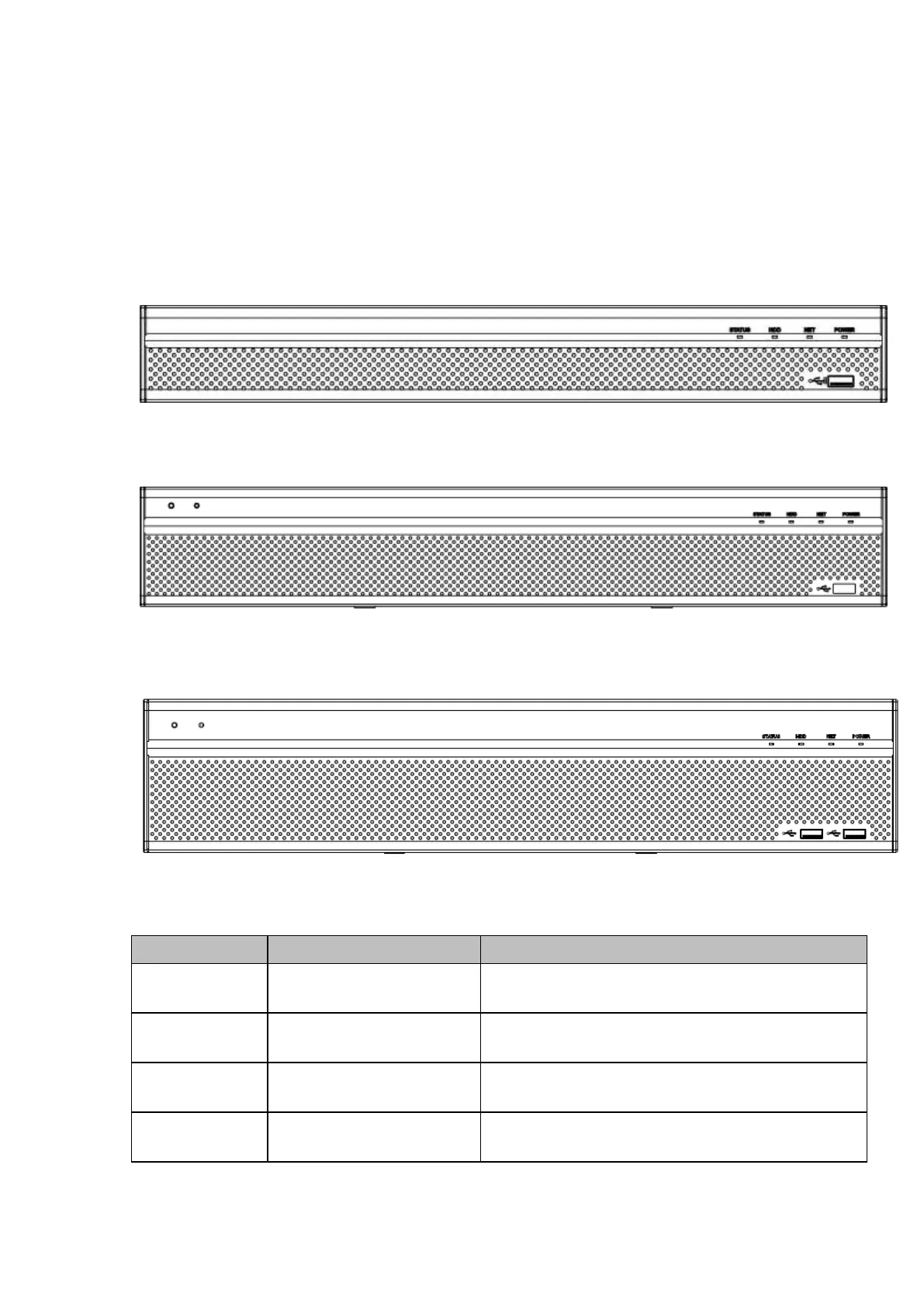

For HCVR82XXA-S3, the front panel is shown as below. See Figure 2-1.
Figure 2-1
For HCVR84XXL-S3, the front panel is shown as below. See Figure 2-2.
Figure 2-2
For HCVR88XXS-S3, the front panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light becomes on when the device is
malfunction.
HDD
HDD status indicator
light
The blue light becomes on when the HDD is
malfunction.
NET
Network status indicator
light
The blue light becomes on when the network
connection is abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.

Dahua HCVR82**A-S3 Series Specifications

General

Brand	Dahua
Model	HCVR82**A-S3 Series
Category	DVR
Language	English
