The removable front panel 2U series includes HCVR88XXS-URH-S3.
This series DVR max supports 8 SATA HDDs. Please use HDD of 7200rpm or higher.
HDD Handle Installation
3.3.3 Rack Installation
The DVR occupies 1.5U/2U rack units of vertical rack space.
Use twelve screws to fix the unit
Please make sure the indoor temperature is below 35℃ (95°f).
Please make sure there is 15cm (6 inches) space around the device to guarantee sound ventilation.
Please install from the bottom to the top.

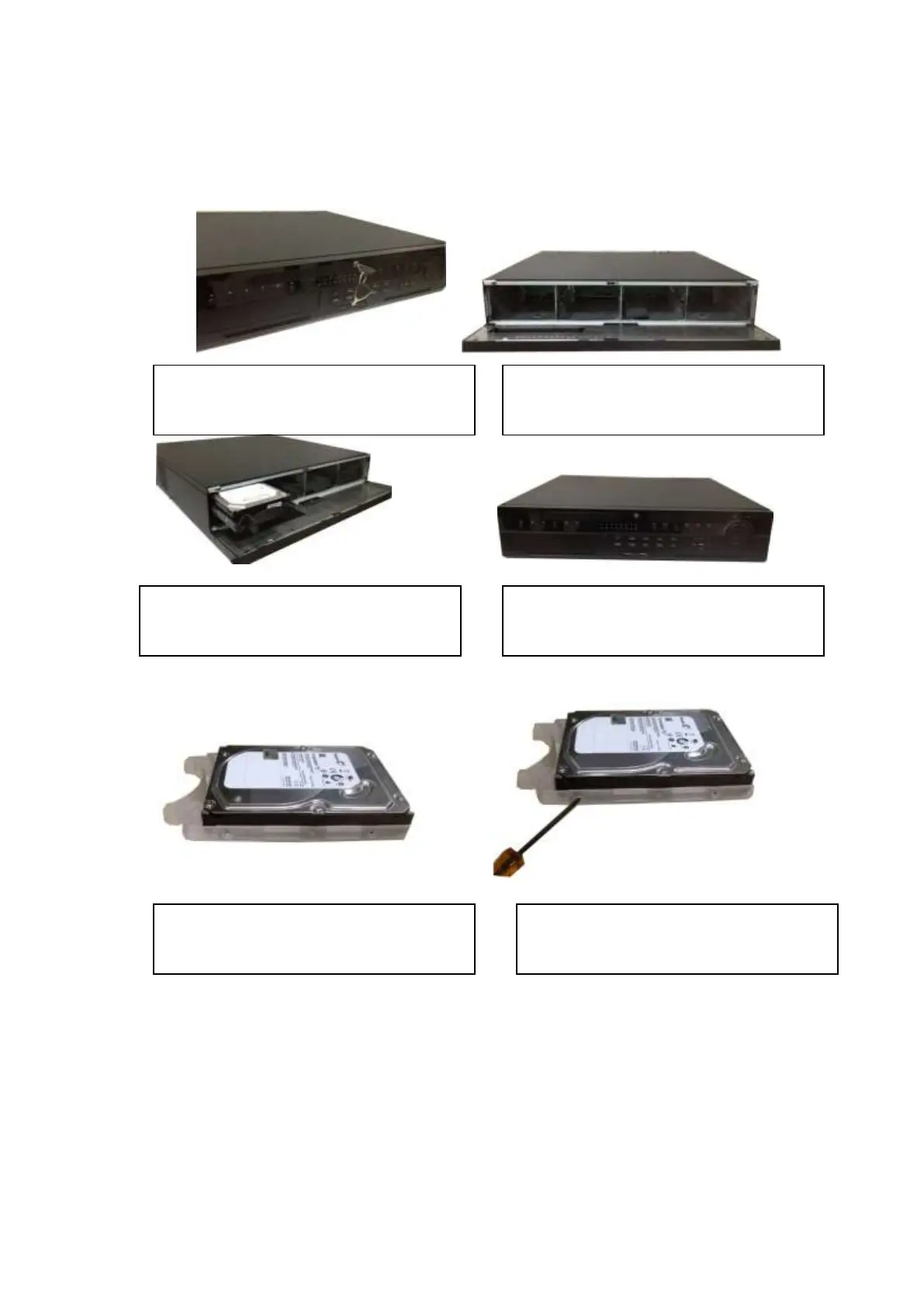

1. Turn the key into the hole in the front
panel.
3. Put the HDD to the slot and adjust the
handle to secure it.
4. Put the front panel back and use the key
to fix firmly.
1. Line up the handle to the HDD side
(without the interface)
2. Use the screwdriver to fix the handle on
the HDD.
