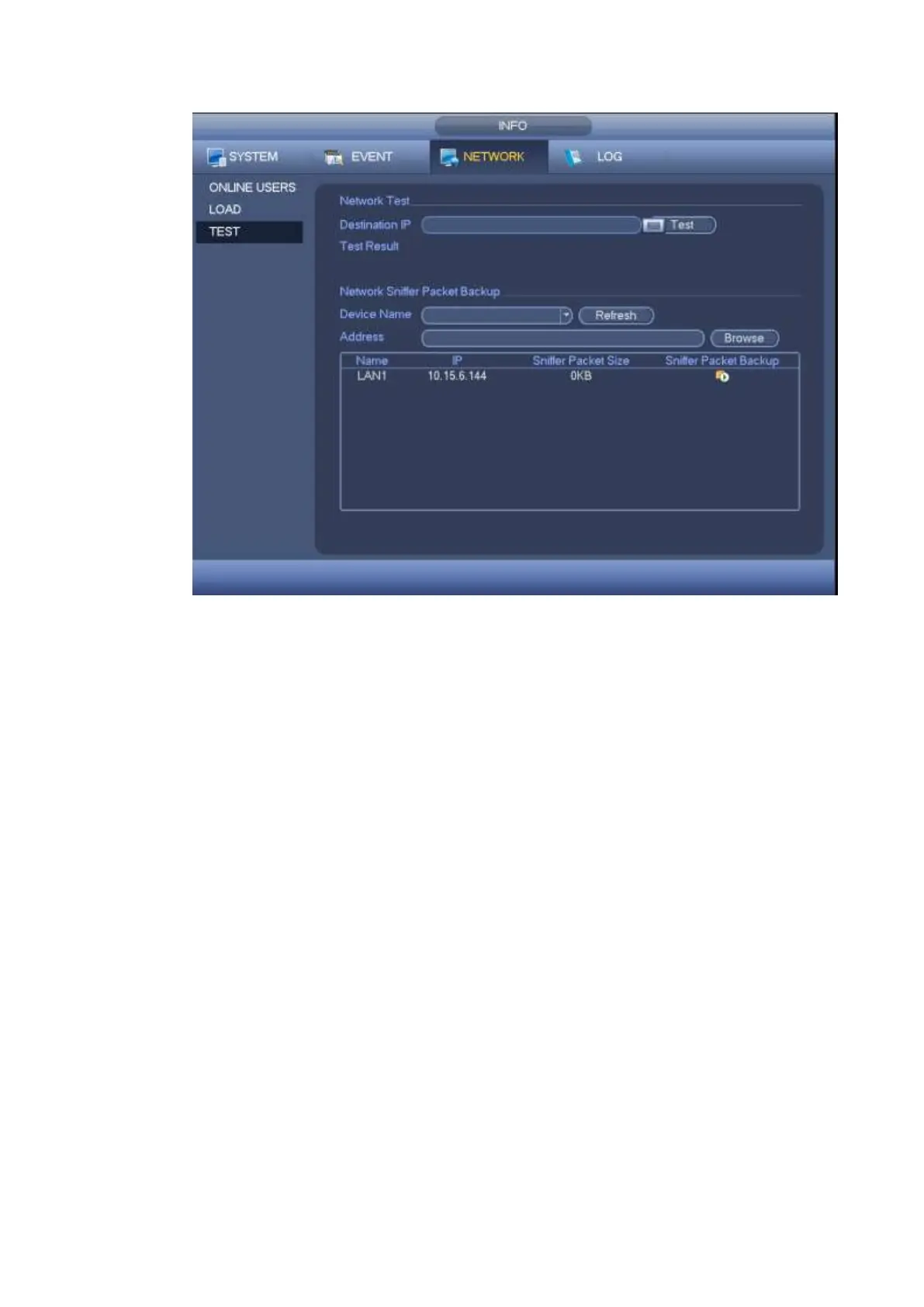

Figure 4-223
4.21.4 Log Info
Note
If there is no HDD, system max supports 10,000 logs.
If you have connected to the formatted HDD, system max supports 500,000 logs.
System operation logs are saved in system memory. Other types of logs are saved in the HDD. If
there is no HDD, other types of logs are saved in the system memory media.
The logs are safe when you format the HDD. But the logs may become loss once you removed the
HDD from the device.
From main menu->Info->Log->Log, here is for you to view system log file. System lists the following
information. See Figure 4-224.
Log types include system operation, configuration operation, data management, alarm event, record
operation, account manager, log clear, file operation and etc. It optimized reboot log. There are only three
types: normal reboot, abnormal reboot and protection reboot. 0x02、0x03、0x04 is included in the
protection reboot type.
Start time/end time: Pleased select start time and end time, then click search button. You can view
the log files in a list. System max displays 100 logs in one page. It can max save 1024 log files.
Please use page up/down button on the interface or the front panel to view more.
Backup: Please select a folder you want to save; you can click the backup button to save the log files.
After the backup, you can see there is a folder named Log_time on the backup path. Double click the
folder, you can see the log file
