3.8 RS485
When the DVR receives a camera control command, it transmits that command up the coaxial cable to the
PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the unit. To enable
the operation, connect the PTZ device to the RS485 (A,B) input on the DVR.
Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This series
DVRs support multiple protocols such as Pelco-D, Pelco-P.
To connect PTZ devices to the DVR:
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.

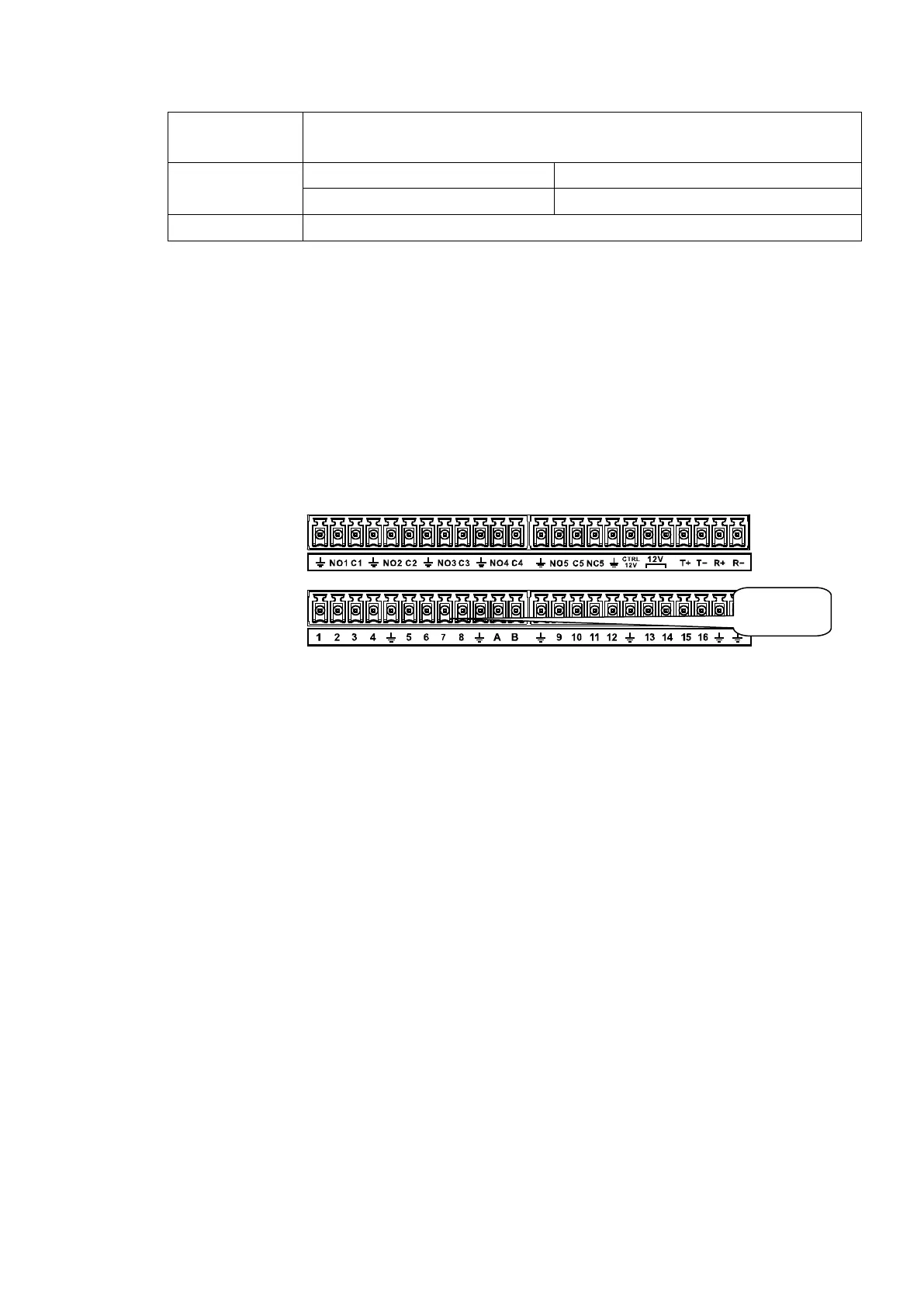

Figure 3-3
3.9 Other Interfaces
There are still other interfaces on the DVR, such as USB port.
