Dahua HCVR82**A-S3 Series User Manual

198

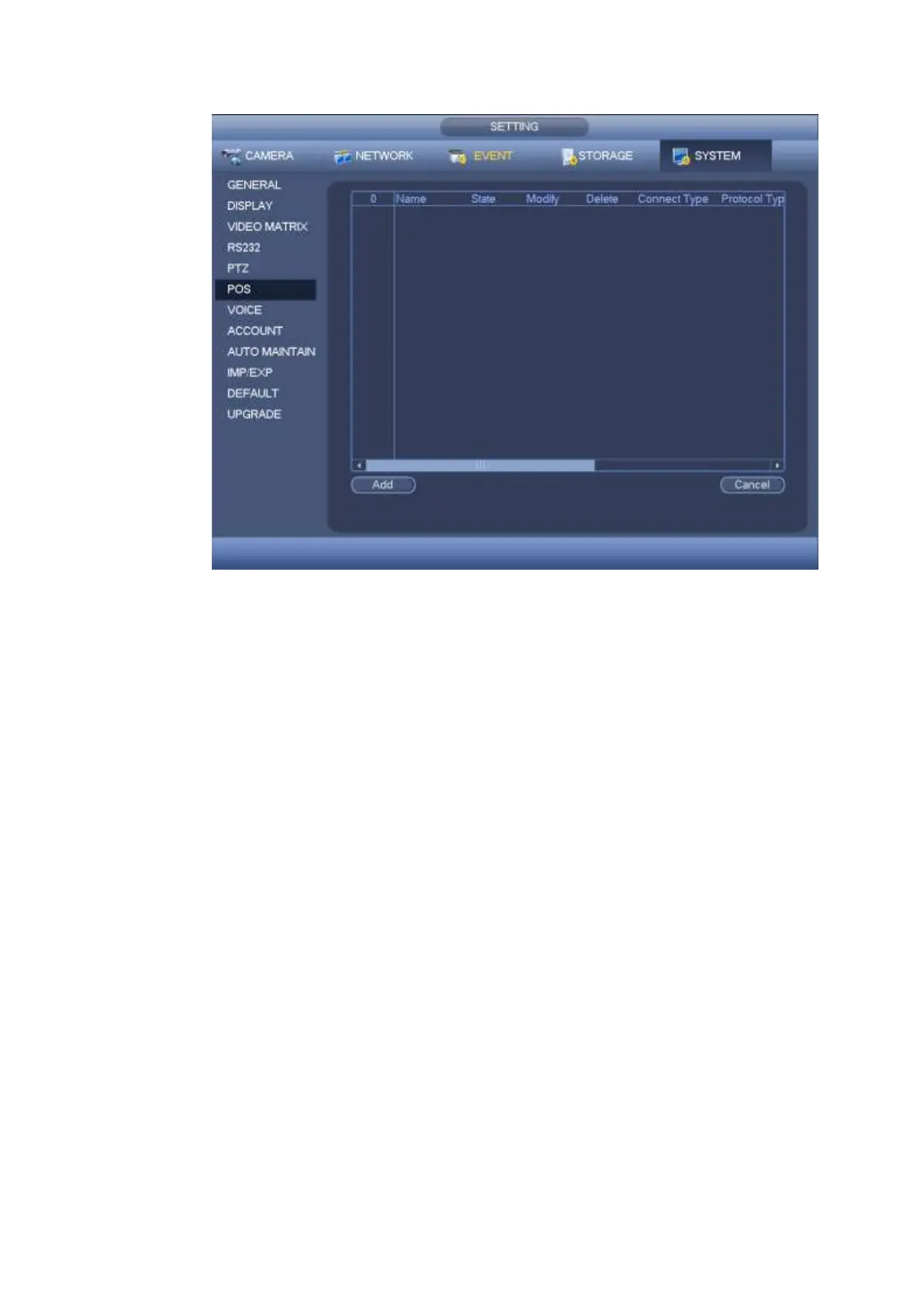

Figure 4-199
Click Add button, the interface is shown as below. See Figure 4-200.
 Enable: Check the box to enable POS function.
 Name: Input POS name. System max supports 63 English letters.
 Connection type: This is for net mode only. Click Setup button, you can set source IP (POS IP
address), port is the POS port. Destination IP is the DVR default Ethernet card IP, port is the POS
port (read-only). See Figure 4-201.
 Network time out: If there is a network problem, DVR can wait for the specified time you set here to
send out the POS information. Once the network time is out, DVR only send out current valid POS
information when then network resumes normal.
 Time display: It is to set the POS information displayed time on the video. If you set 5 seconds, then
the POS information appears after 5 seconds display.
 Channel Set: Click it to go to Figure 4-202. Select a channel you want to overlay POS information
and then click Save button

Dahua HCVR82**A-S3 Series Specifications

General

Brand	Dahua
Model	HCVR82**A-S3 Series
Category	DVR
Language	English
