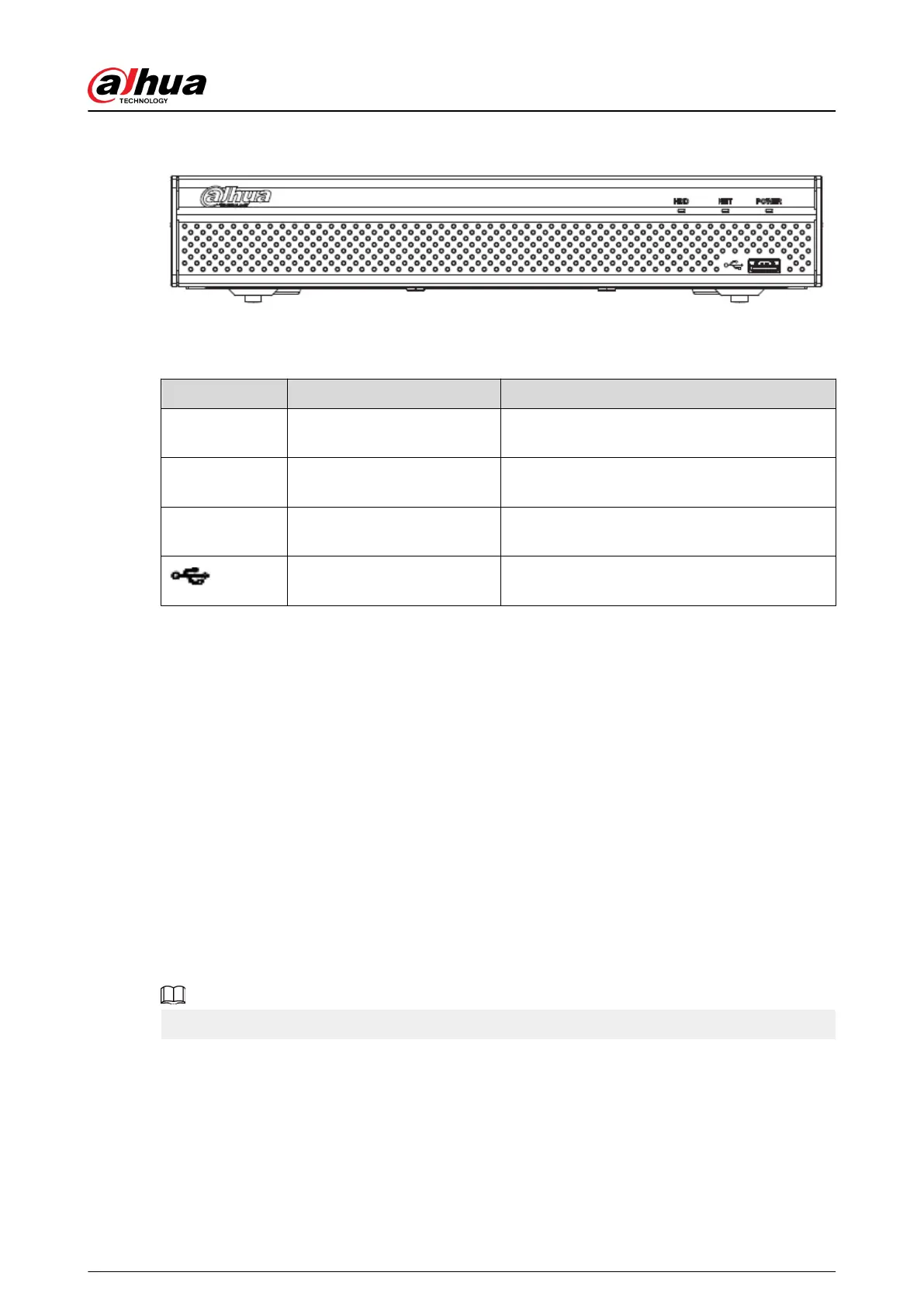

Figure 2-3 Front panel
Table 2-2 Icons
Icon Name Function
HDD HDD status indicator light
The blue light is on when the HDD is
malfunction.
NET Network status indicator light
The blue light is on when the network
connection is abnormal.
POWER Power status indicator light
The blue light is on when the power connection
is OK.
USB port
Connect to peripheral USB storage device,
mouse and more.
2.1.3 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/
NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P-4KS2/
NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/
NVR42-16P-4KS2/L/NVR5224-24P-4KS2/NVR54-4KS2/
NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/
NVR44-16P-4KS2/L/NVR5424-24P-4KS2/NVR58-4KS2/
NVR58-16P-4KS2/NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/
NVR48-16P-4KS2/L/NVR22-4KS2/NVR22-P-4KS2/
NVR22-8P-4KS2/NVR52-8P-4KS2E/NVR52-16P-4KS2E/
NVR54-16P-4KS2E/NVR58-16P-4KS2E
The gures are for reference only.
The NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/
NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42-16P-4KS2/
LNVR5224-24P-4KS2/NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR52-8P-4KS2E/
NVR52-16P-4KS2E series front panel is shown as below.
User's Manual
6
