Dahua NVR2104-I2 User Manual

Table 2-25 Ports
Icon Name Function
Power input socket Power socket. Input 12 VDC/2 A.
Network port
10/100 Mbps self-adaptive Ethernet port. Connect to
the network cable.
USB 2.0 port
USB 2.0 port. Connect to mouse, USB storage device,
and more.
HDMI
High Denition Media
Page
High denition audio and video signal output port. It
transmits uncompressed high denition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.
GND Ground end.
WPS/RESET Reset/WPS function
Device Wi-Fi reset and WPS function button:
●
Hold down this button for 5 seconds and above
to restore Wi-Fi AP to defaults.
●
Press this button for less than 2 seconds, and
then press the WPS button of Wi-Fi IPC, the
device and Wi-Fi IPC can be connected.
2.2.12 NVR21-I/NVR21-I2 Series
The gure is for reference only.

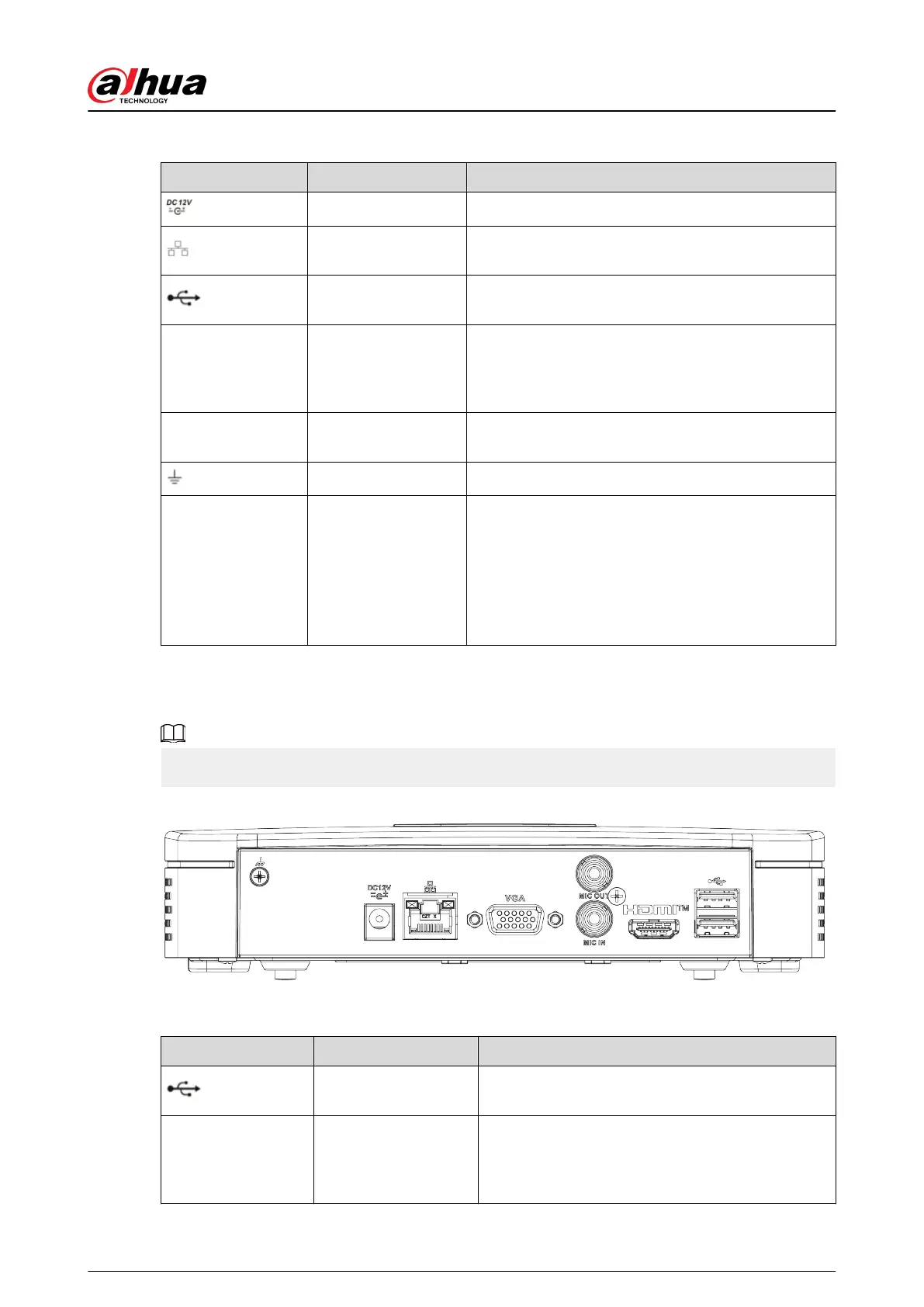

Figure 2-65 Rear panel
Table 2-26 Ports
Port Name
Connection Function
USB port
USB port. Connect to mouse, USB storage device
and more.
HDMI
High Denition Media
Page
High denition audio and video signal output port.
It transmits uncompressed high denition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
User's Manual
40
