Dahua NVR2104-I2 User Manual

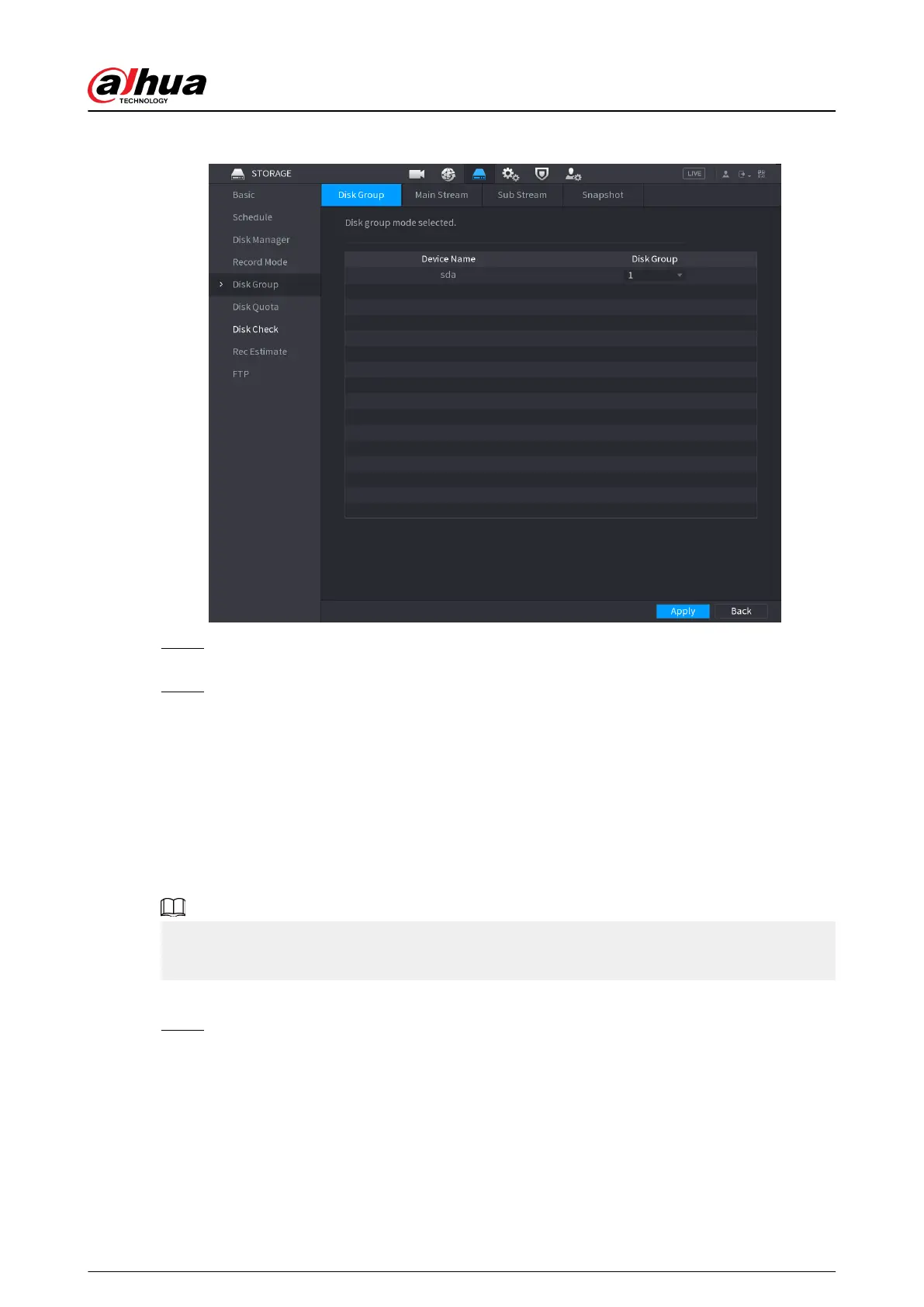

Figure 5-227 Disk group
Step 2 (Optional) If Disk Quota is selected is shown on the page, click Switch to Disk Group
Mode and then follow the on-screen instructions to format disks.
Step 3 Select the group for each HDD, and then click Apply.
After conguring HDD group, under the Main Stream tab, Sub Stream tab and
Snapshot tab, congure settings to save the main stream, sub stream and snapshot to
dierent disk groups.
5.12.5 Disk Quota
You can allocate a certain storage capacity for each channel to manage the storage space properly.
Background Information
●
If Disk group mode selected. is shown in the page, click Switch to Quota Mode.
●
Disk quota mode and disk group mode cannot be selected at the same time.
Procedure
Step 1 Select Main Menu > STORAGE > Disk Quota.
User's Manual
346
