Dahua NVR2104-I2 User Manual

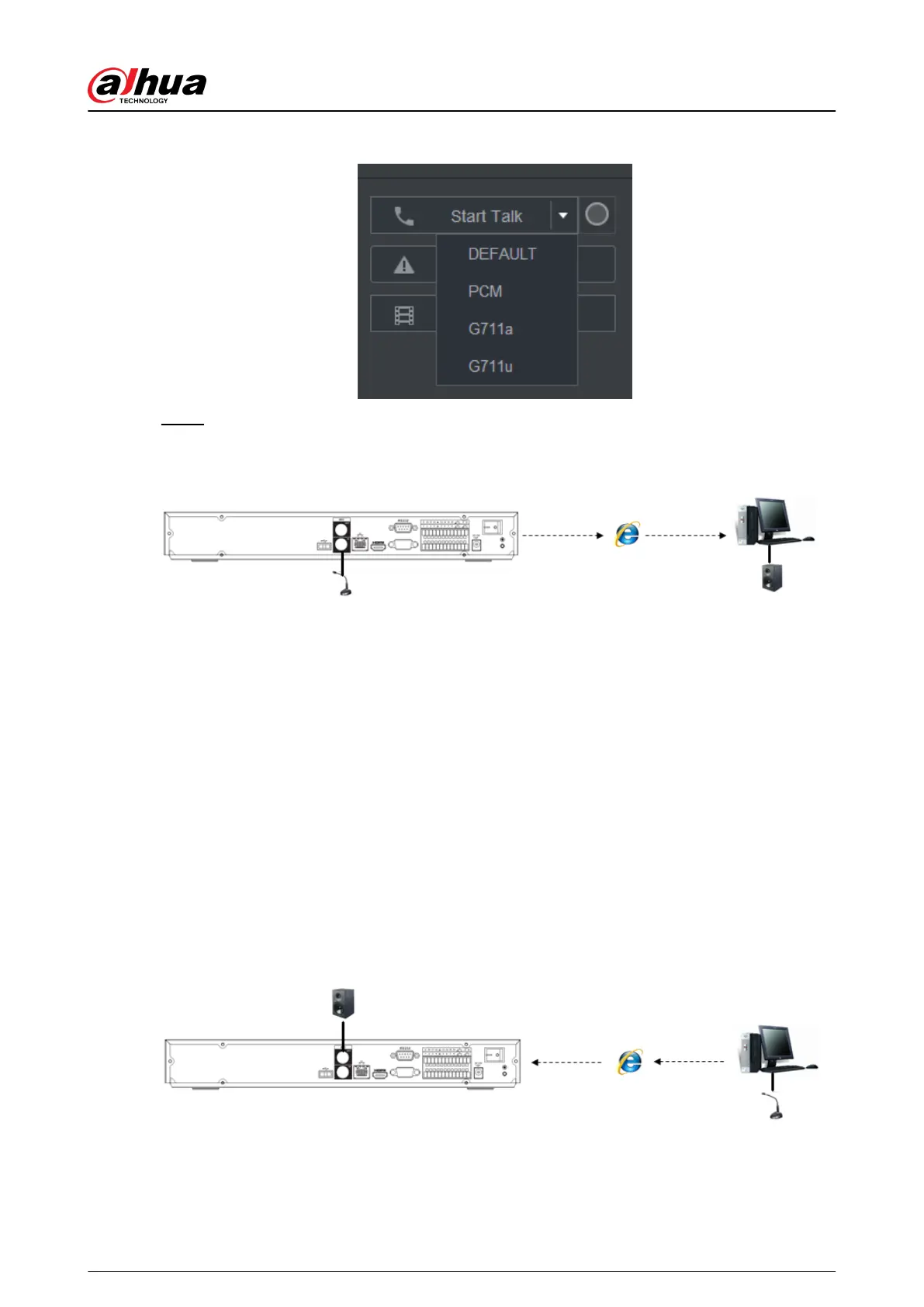

Figure 2-100 Enable two-way talk
Step 5 At the device end, speak by the speaker or the pickup, and then you can get the audio
from the earphone or sound box at the PC end.
Figure 2-101 Device to PC
2.4.2 PC-end to the Device-end
Device Connection
1. Connect the speaker or the pickup to the audio output port in the PC.
2. Connect the earphone or the sound box to the rst audio input port in the device rear panel.
3. Log in to the web and then enable the corresponding channel real-time monitor.
4. Enable bidirectional talk. See Figure 2-100 .
Listening Operation
At the PC-end, speak by the speaker or the pickup, and then you can get the audio from the
earphone or sound box at the device-end.
Figure 2-102 PC to device
User's Manual
74

Dahua NVR2104-I2 Specifications

General

Brand	Dahua
Model	NVR2104-I2
Category	Network Hardware
Language	English
