Port Name Connection Function
HDMI
High Denition
Media Page
High denition audio and video signal output
port. It transmits uncompressed high denition
video and multiple-channel data to the HDMI port
of the display device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
GND Ground end.
/
Power input port
Power socket.
For NVR41-4KS2: 12 VDC/2 A power.
For NVR41-P-4KS2: 48 VDC/72 W power.
For NVR41-8P-4KS2: 48 VDC/96 W power.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
MIC OUT Audio output port
Audio output port. It is to output the analog
audio signal to the devices such as the sound box.
Bidirectional talk output.
Audio output on 1-window video monitor.
Audio output on 1-window video playback.
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.7 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/
NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/
NVR42-8P-4KS2/L/NVR42-16P-4KS2/L/NVR42-EI/NVR42-P-EI/
NVR42-8P-EI Series

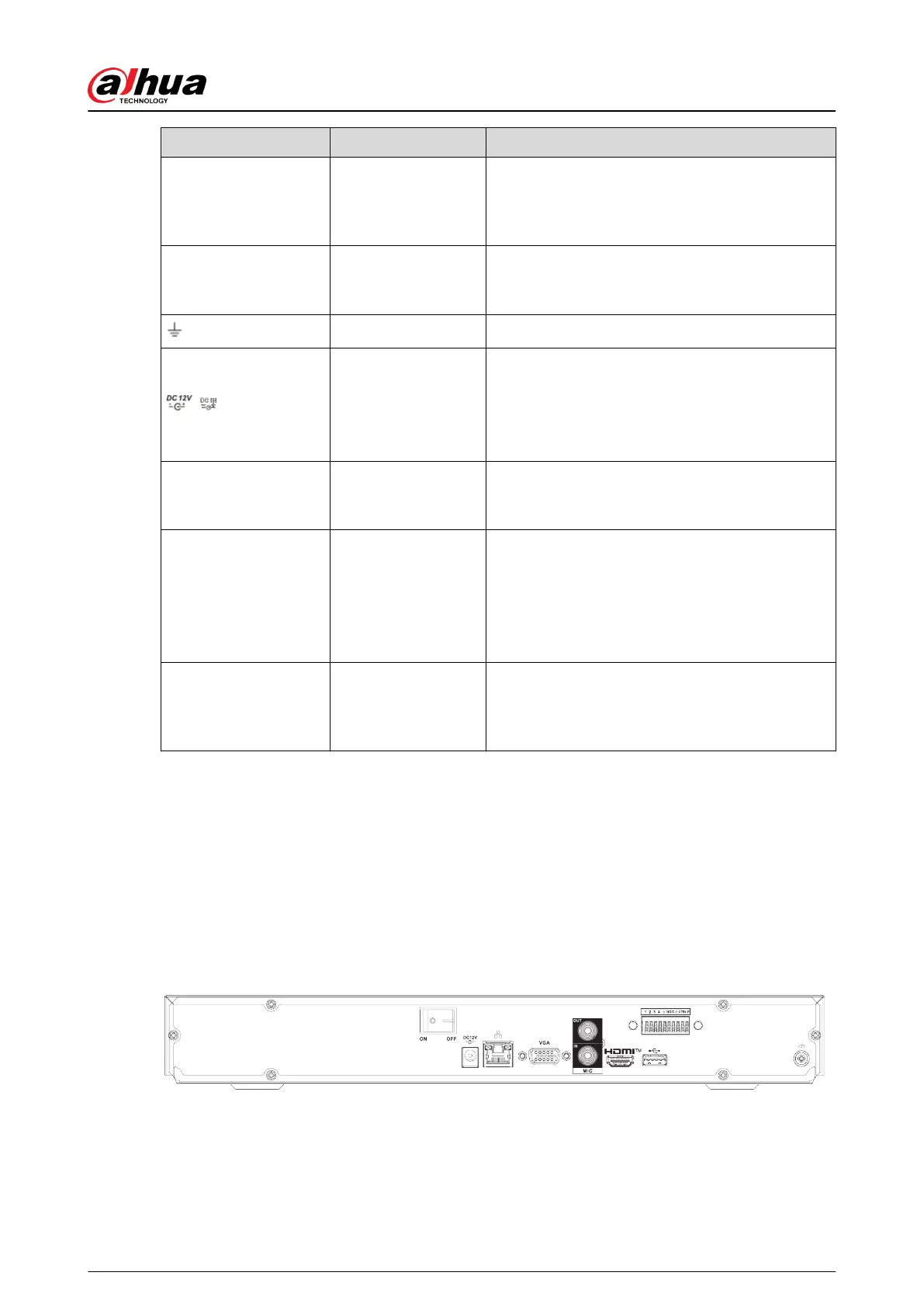

The NVR42-4KS2/NVR42-4KS2/L/NVR42-EI series rear panel is shown as below.
Figure 2-53 Rear panel
The NVR42-P-4KS2/NVR42-P-4KS2/L/NVR42-P-EI series rear panel is shown as below.
User's Manual
31
