Table 5-32 Tripwire parameters
Parameter Description
Name Customize the rule name.
Direction Set the tripwire direction, including A→B, B→A and A↔B.
Target Filter
Click and then select eective target. With Human and Motor
Vehicle selected by default, the system automatically identies the
person and motor vehicle appeared within the monitoring range.
4. Click OK.
Step 6 Congure alarm schedule and linkage.

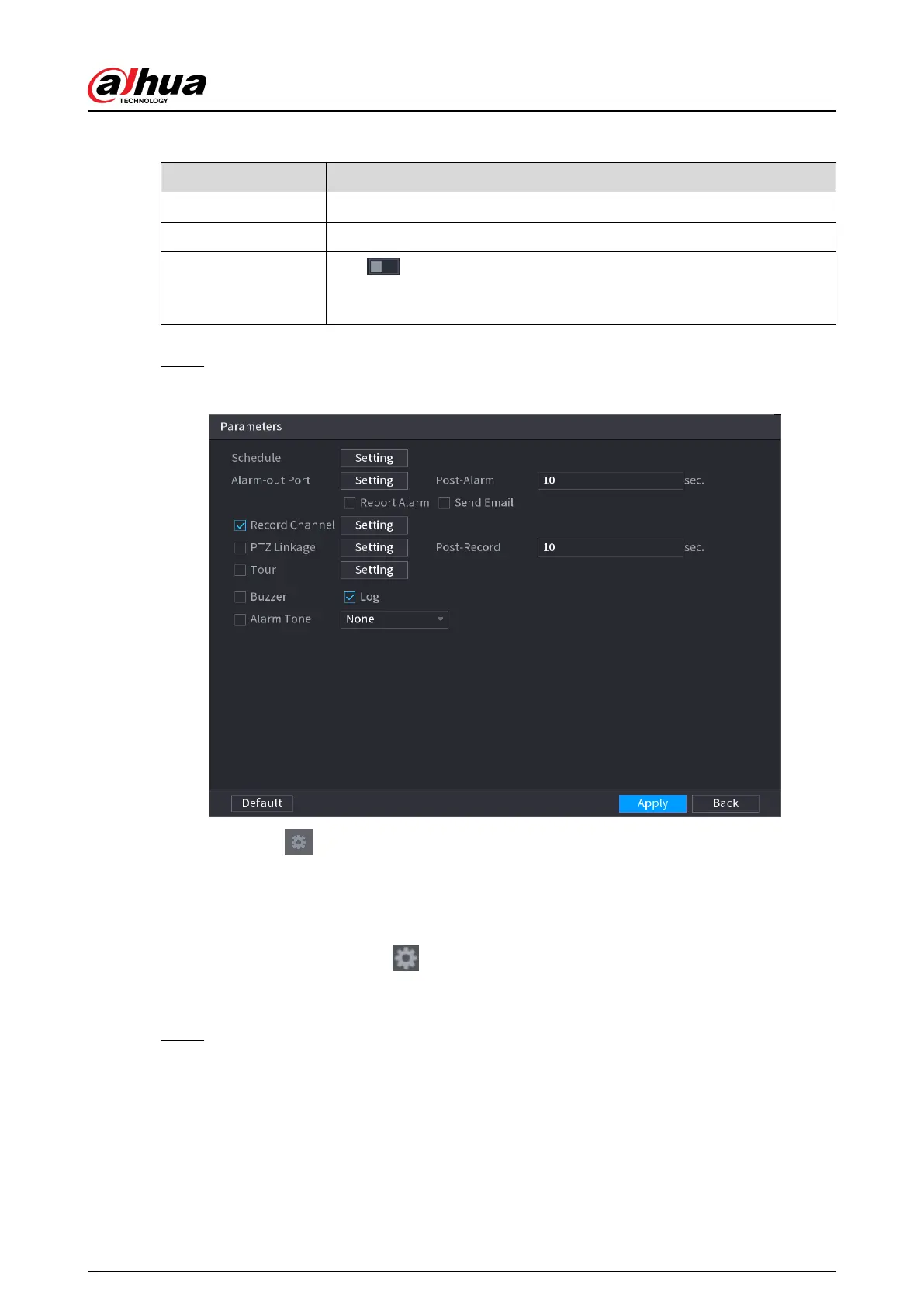

Figure 5-125 Schedule and alarm linkage
1. Click .
2. Click Setting next to Schedule to congure the alarm period.
The system performs linkage actions only for alarms during the arming period.
●
On the time line, drag to set the period.
●
You can also click
to set the period.
3. Congure alarm linkage. For details, see Table 5-47 .
4. Click Apply.
Step 7 Select the Enable checkbox and then click Apply.
5.9.6.2.2 Intrusion
Background Information
When the detection target passes the edge of the monitoring area, and enters, leaves or traverses
the monitoring area, the system performs an alarm linkage action.
User's Manual
234
