5.9.12.3 Report Query

You can search for and export the heat map report of general and sheye cameras.

5.9.12.3.1 General

Procedure

Step 1 Select Main Menu > AI > Report Query > Heat Map > General.

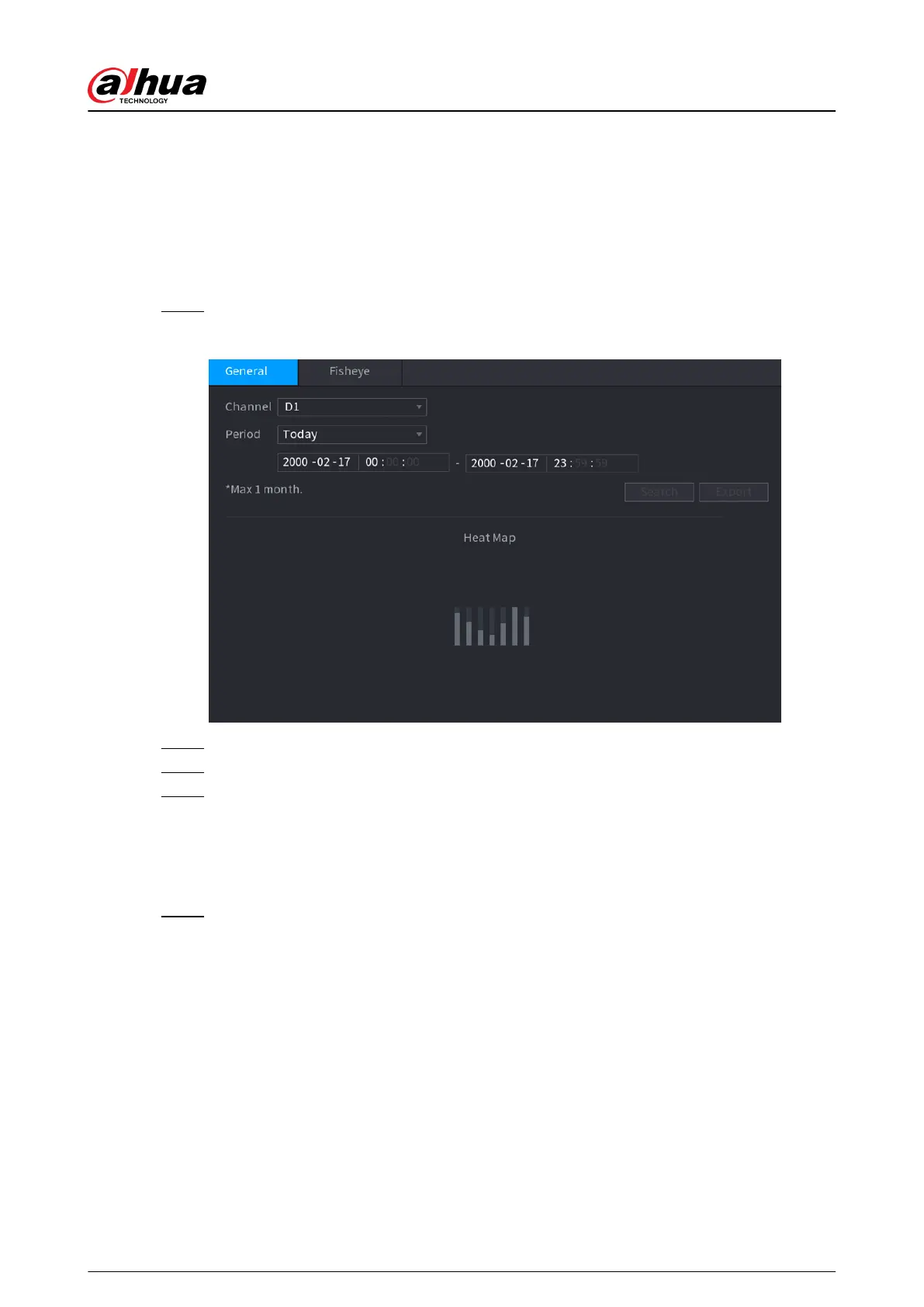

Figure 5-173 General

Step 2 Select the channel, start time, and end time.

Step 3 Click Search.

Step 4 Click Export to export the heat map.

5.9.12.3.2 Fisheye

Procedure

Step 1 Select Main Menu > AI > Report Query > Heat Map > Fisheye.

User's Manual

283
